点击放大查看

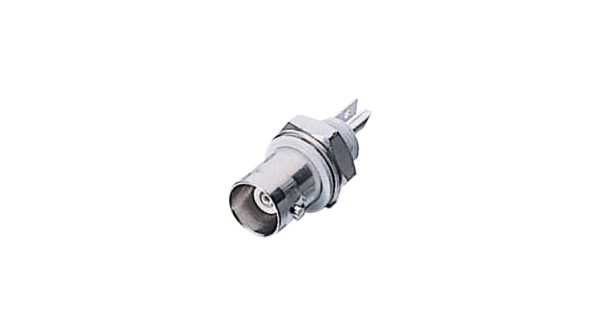

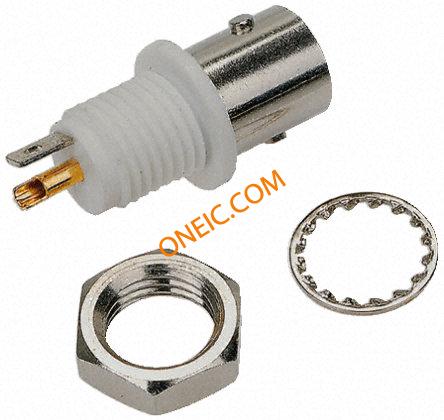

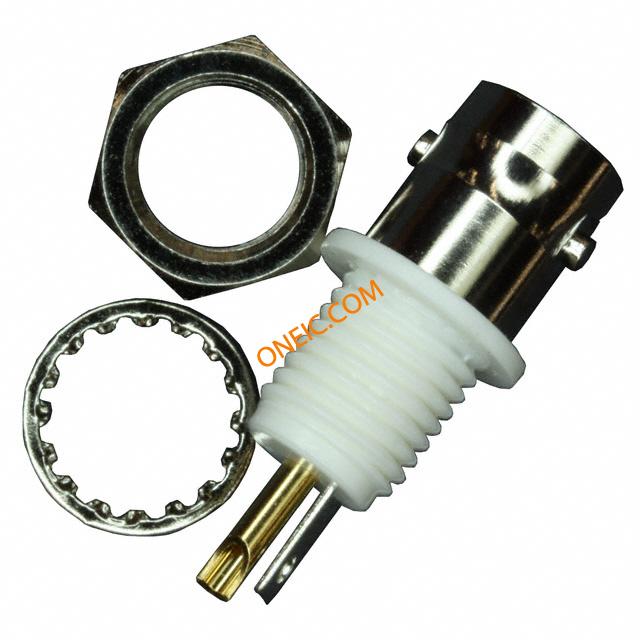

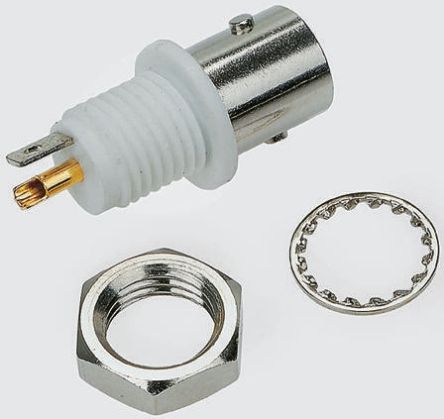

1-1337452-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC,insulated b'head skt,50ohm,front mnt RF Connectors / Coaxial Connectors BULKHD SOCKET 50 OHM Conn BNC RCP 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold Individual Product Highlights:ConnectorConnector Type = BNCJack ReceptacleNot Stacked1 PortsSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAX CONN, BNC BLKHD JACK, 50OHM, CABLE BNC,insulatedb'headskt,50ohm,frontmnt Socket; BNC; female; insulated; straight; 50Ω; soldering; ABS BNC appliance socket, straight 50 Ohm, 1-1337452-0, TE Connectivity TE Connectivity BNC 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 50Ohm Nickel Gol |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 绝缘电阻 | 5000 MOhms | 连接器类型 - 电压输入 | insulated |
机械参数
| 深度 | 12.7 mm | 重量 | 0 |
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Straight | 端接方式 | Solder Cup |
| 基体材料 | Brass | 外壳颜色 | White |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 壳体镀层 | Nickel |
| 连接器样式 | BNC | 触头材料 | Brass |
| 总长度 | 29.8 mm | 包装数量 | 1 |
| 连接器 - 电缆 | socket | 端接样式 | Solder Cup |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Acrylonitrile Butadiene Styrene (ABS) | 绝缘材料 - 材质 | ABS |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Bulkhead | 触点材料 - 镀层 | gold plated |
产品信息
| SPG | 1 | 类型 | BNC |
| 连接器性别 | RCP | 系列 | :BNC |
| 产品特性 | Isolated | 极性 | Standard |
| 连接类型 | Wire | 单元数量 | 1 |
| 射频系列/标准 | 1337452 | ||
环境参数
| 工作温度 | -40°C ~ 60°C | ||
