点击放大查看

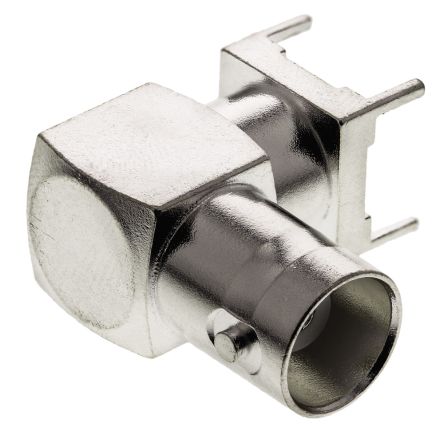

1-1478035-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC jack,PCB,right angle, 50 Ohm,silver RF Connectors / Coaxial Connectors R/A PCB Skt 50 Ohm Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Silver Individual Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, ELBOW, 50R NiPtBNCrightanglePCBsocket,50ohm TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀银本体 BNC R/A PCB Skt 50Ohm Silver P |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 电压 | :500V | 频率 | 0 to 4 GHz |
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.014 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Through Hole | 行程角度 | RightAngle |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | ThroughHole |
| 壳体镀层 | :Silver | 连接器样式 | BNC |
| 触头材料 | Brass | 主要材料 | BNC |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | :Right Angle Jack |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 系列 | :- | 连接类型 | PCB |
| 射频系列/标准 | 1478035 | ||
环境参数
| 插拔次数 | :500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
1-1337503-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder RA Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors R/A Plg PS 50 Ohm Conn BNC PL 0Hz to 4GHz 50Ohm Solder RA Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = Solder/ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012
1-1337427-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER Crimp BNC straight plug-RG58 cable,50ohm RF Connectors / Coaxial Connectors RF BNC 50 Ohm STR PLUG HEX Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG58 CrimpBNCstraightplug-RG58cable,50ohm Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; crimped TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver P
1-1478154-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC straight MIL clamp plug, 50 ohm RF Connectors / Coaxial Connectors Str Plg MC 50 Ohm PLUG, BNC, STRAIGHT, RG174 BNCstraightMILclampplug,50ohm
1-1478075-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG R/A 50 OHM SOLDER Crimp BNC elbow plug-RG58 cable,75ohm RF Connectors / Coaxial Connectors BNC R/A Plg Hex 50 Ohm Silver P Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, ELBOW, RG58 CrimpBNCelbowplug-RG58cable,75ohm TE Connectivity 直角 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC R/A Plg Hex 50Ohm Silver Pltd RG58C/

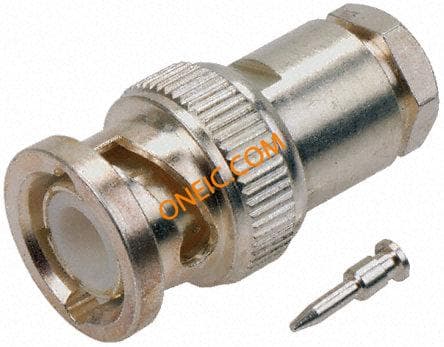

1-1478400-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Individual RF/Microwave Interconnect CONN BNC PLUG STR 50 OHM SOLDER Clamp BNC straight plug-URM67cable,50ohm RF Connectors / Coaxial Connectors BNC STR PLG PS 50OHM SLVR PSF 1/4M, RG Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, 50R, RG213 ClampBNCstraightplug-URM67cable,50ohm BNCSTRTCLAMPPLGRG213 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 焊接 端接, RG213, RG8 A/U电缆, 镀银本体
1-1478401-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Bag BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC Straight Plug clamp 50Ohm 58C/U,141A RF Connectors / Coaxial Connectors BNC STR PLG PS 50OHM SLVR RG58C/U, 141 Conn BNC PL 0Hz to 4GHz 50Ohm Solder ST Cable Mount Silver Bag Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = Solder/ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, 50R, RG58 BNCStraightPlugclamp50Ohm58C/U,141A BNCSTRTCLAMPPLGRG58 Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; teflon TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 焊接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg PS 50Ohm Silver RG58C/U, 141
1-1337421-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC,strt,plug,solder,50ohm,RG58C/U RF Connectors / Coaxial Connectors BNC Str Plg MC 50Ohm Silver Pltd RG58C/U Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = MIL-ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG58 RF/COAXIAL, BNC PLUG, STR, 50OHM, CABLE Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; teflon BNC cable connector, straight 50 Ohm, 1-1337421-0, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 焊接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg MC 50Ohm Silver Pl
1-1337430-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC straight plug,crimp, Ag, RG174,RG188 Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG174 Greenparcrimpstraight,Ag,plug-RG174 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG174 A/U, RG188 A/U, RG316/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver Pltd RG174A

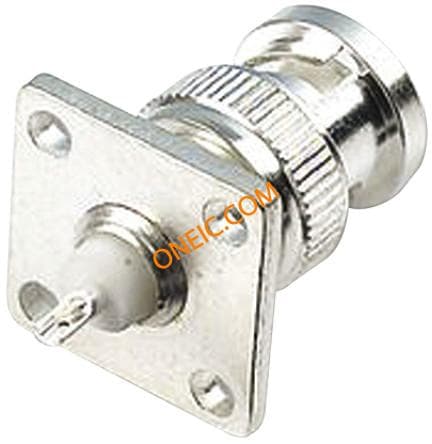

1-1337488-0
