点击放大查看

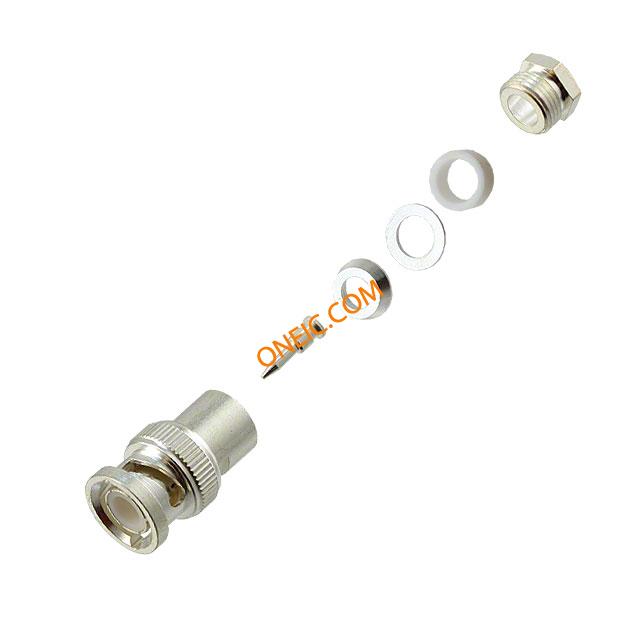

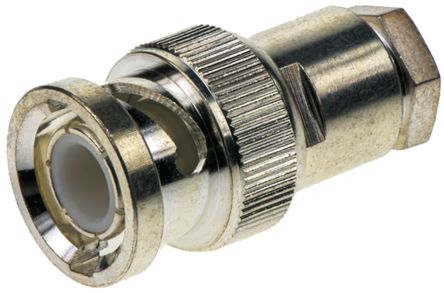

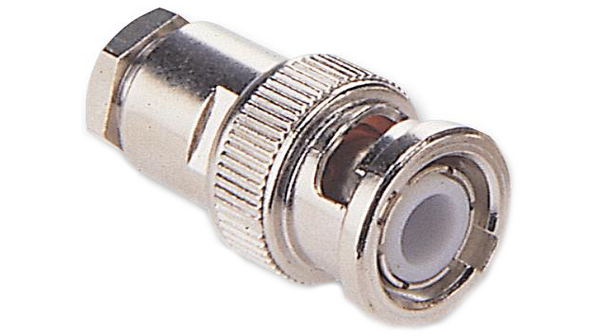

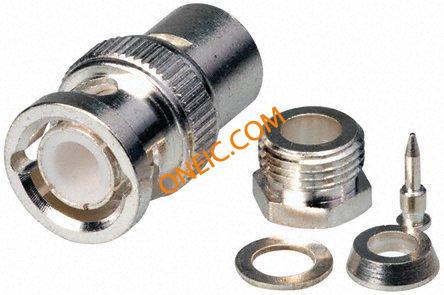

1-1337421-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER BNC,strt,plug,solder,50ohm,RG58C/U RF Connectors / Coaxial Connectors BNC Str Plg MC 50Ohm Silver Pltd RG58C/U Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = MIL-ClampSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG58 RF/COAXIAL, BNC PLUG, STR, 50OHM, CABLE Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; teflon BNC cable connector, straight 50 Ohm, 1-1337421-0, TE Connectivity TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 焊接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg MC 50Ohm Silver Pl |
| 分类 |
商业参数
| 产品 | Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 电压 | :500V | 频率 | 0 to 4 GHz |
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | 5000 MOhms | 阻抗 - 不平衡/平衡 | :RG58 |
机械参数
| 重量 | 0.012 | 材料（通用） | :Brass |
| 包装方式 | Bulk | 电缆类型 | Belden 9907, KX15, RG-58C/U, RG-141A/U, URM43, URM76 |
| 本体表面处理 | Silver | 电缆组 | RG-58C, 141A, Belden 9907 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Silver |
| 紧固类型 | Bayonet Lock | 安装样式 | for cable |
| 壳体镀层 | :Silver | 连接器样式 | BNC |
| 触头材料 | Brass | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 材质 | teflon |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight | 触点材料 - 镀层 | silver plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 1 | 类型 | BNC |
| 连接器性别 | PL | 系列 | :BNC |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 单元数量 | 1 | 射频系列/标准 | 1337421 |
环境参数
| 插拔次数 | :500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
