点击放大查看

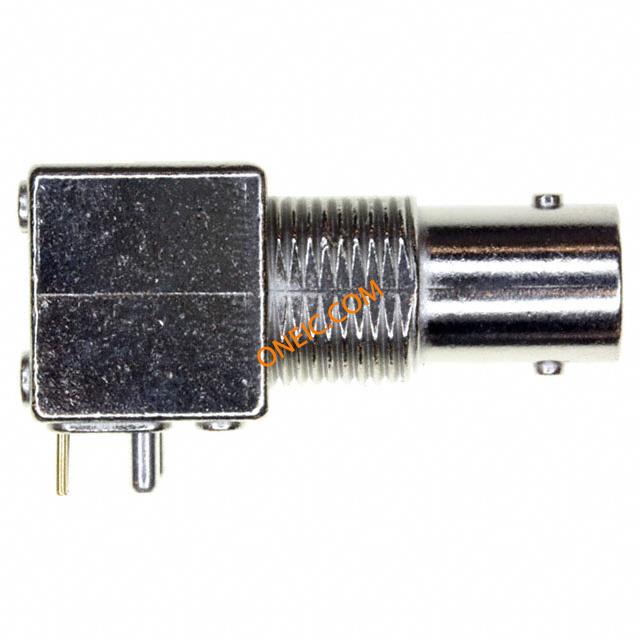

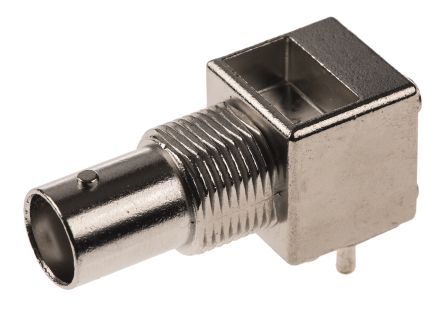

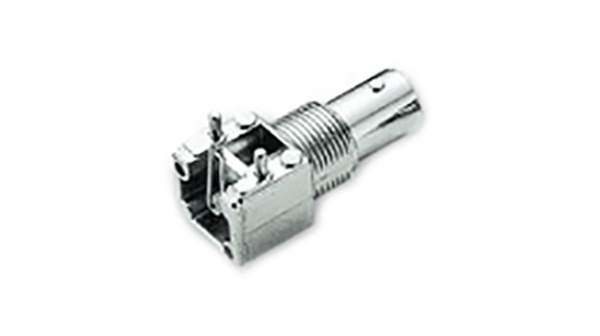

1-1337494-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A Shld PCB Skt Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 50R, SHIELD BNCR/ASHLDPCBSKT50OHMNICKELPLTD Socket; BNC; female; angled 90°; 50Ω; THT; polyetylene; gold plated BNC appliance socket, right angle 50 Ohm, 1-1337494-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 50Ohm Nickel Pltd |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
机械参数
| 尺寸 | Standard | 深度 | 14.76 mm |
| 高度 | 15.2 mm | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 行程角度 | RightAngle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold Over Nickel Over Copper | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Through Hole |
| 壳体镀层 | Nickel Over Copper | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 14.76 mm |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 连接器颜色 | :Silver | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polyethylene (PE) |
| 绝缘材料 - 类型 | Polyethylene | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :PCB | ||
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | RCP | 系列 | :- |
| 已删除 | Compliant | 产品特性 | Board Lock |
| 极性 | Normal | 连接类型 | PCB |
| 单元数量 | 1 | 射频系列/标准 | 1337494 |
环境参数
| 插拔次数 | :50 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
1-1337543-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A PCB Skt White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC, JACK, PCB, R/A, 50OHM, WHITE BNCINSR/APCBSKT50OHMWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyester BNC appliance socket, right angle 50 Ohm, 1-1337543-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm White
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
9-227260-0
te connectivity / amp
Lock Washer Terminal 14.55mm Tin Terminals LOCKWASHER TERM LOCKWASHER TERM CONN LOCKWASHER RECEPT BNC LOCKWASHER,TERMINAL,LEADFREE TE Connectivity 227260系列 锁紧垫圈
1-1634613-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC black low profile PCB skt, r/a,50ohm RF Connectors / Coaxial Connectors PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSLPPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm Black
1-1337541-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual RF Connectors Str PCB Skt MP White 50Ohm BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC insulated PCB socket, white, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, WHITE BNCINSSTRPCBSKT50OHMMPWHITE Socket; BNC; female; straight; 50Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm White
1-1634505-0
te connectivity / amp
Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black
1-1337542-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white low profile PCB skt,r/a, 50ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP White Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, RA, SOLDER, 50OHM BNCINSLPPCBSKT50OHMMPWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm White
1-1634612-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC Ni-pl r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP Black Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, THT, R/A, 50OHM BNCINSPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm Black
5-1634516-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM CRIMP BNC Ni-pl bulkhead jack, 50 ohm, RG58 RF Connectors / Coaxial Connectors RG58 BH J Hex Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 JACK, BULKHEAD, 50R, RG58C/U BNCRMBHJHEX50OHMNICKELPLTDRG58C/U,141A/U,URM43,76,KX15 BNC appliance socket, straight 50 Ohm, 5-1634516-1, TE Connectivity TE Connectivity 直 50Ω 面板安装 BNC 连接器, 插口, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀镍本体 BNC RM BHJ Hex 50Ohm Nickel Pltd RG58C/U
5-1634504-1
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK STR 50 OHM SOLDER BNC Ni-pl insul bulkhead socket, 50 ohm RF Connectors / Coaxial Connectors BH Skt 50Ohm Nickel Gold Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Panel Mount Gold Over Nickel Over Copper Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To WireBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, BULKHEADER, 50OHM BNCINSBHSKT50OHMNICKELGOLDPLTD Socket; BNC; female; insulated; straight; 50Ω; soldering; polyester BNC appliance socket, straight 50 Ohm, 5-1634504-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 面板安装 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins BHSkt 50Ohm Nickel Gold Pltd
1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器

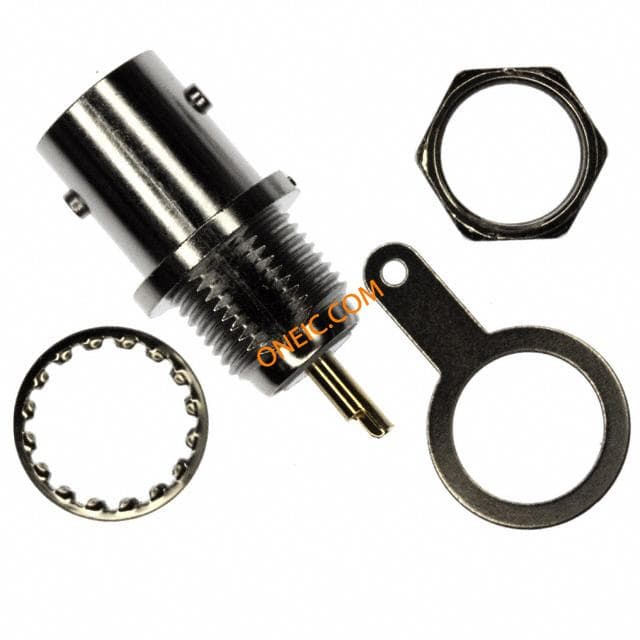

5-1634523-1
