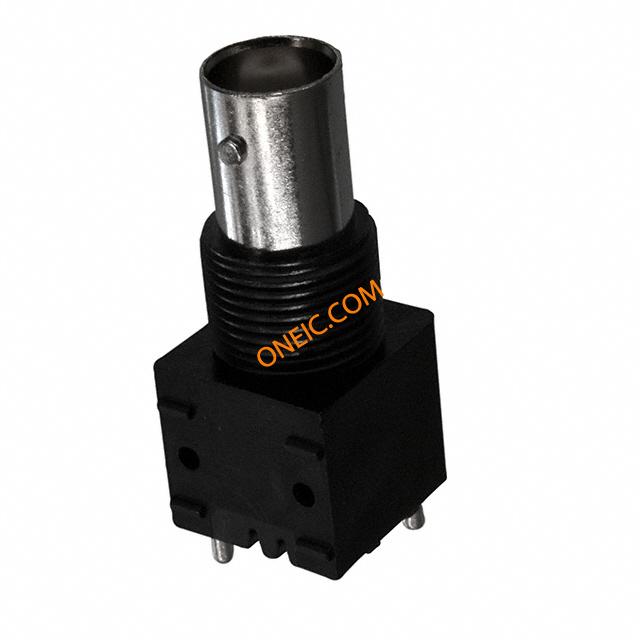

1-1634505-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | 工作电压 | :500V |
| 接触电阻 | :1.5mohm | 击穿电压 | :1500V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 尺寸 | Standard | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | Solder | 基体材料 | Zinc Alloy |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | PCBMount |
| 壳体镀层 | :Nickel | 连接器样式 | BNC |
| 触头材料 | Brass | 主要材料 | BNC |
| 端接样式 | Solder | 连接器颜色 | :Black |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polyethylene (PE) | 绝缘材料 - 材质 | :Zinc |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | ZDC/BNC | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Board Guide |
| 极性 | Normal | CAD图纸 | 3D CAD Model |
| 连接类型 | PCB | 射频系列/标准 | 1634505 |
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
