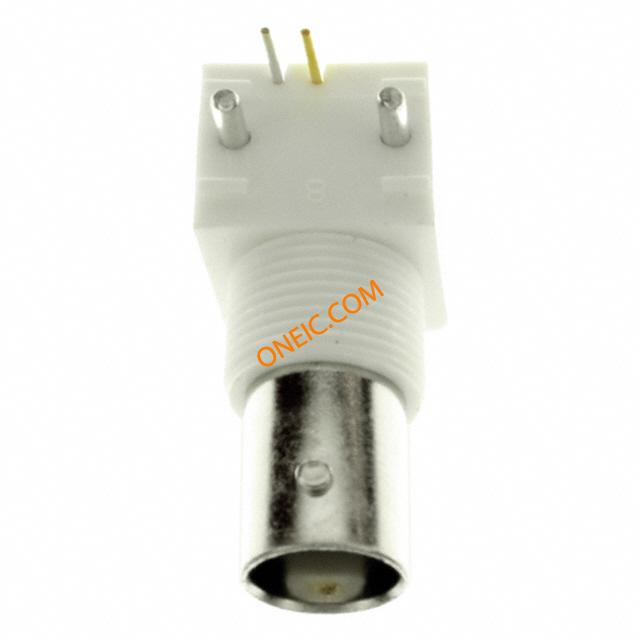

1-1337542-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white low profile PCB skt,r/a, 50ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP White Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, RA, SOLDER, 50OHM BNCINSLPPCBSKT50OHMMPWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm White |
| 分类 |
商业参数
| 产品 | PCB Receptacles | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
| 工作电压 | :500V | 接触电阻 | :1.5mohm |
| 击穿电压 | :1500V | 绝缘电阻 | :5000Mohm |
| 连接器类型 - 电压输入 | insulated | ||
机械参数
| 尺寸 | Standard | 深度 | 14.7 mm |
| 高度 | 13.16 mm | 重量 | 0.01 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Zinc Die Cast |
| 外壳颜色 | White | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold Over Nickel Over Copper | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Through Hole |
| 壳体镀层 | Nickel Over Copper | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 35.5 mm |
| 包装数量 | 1 | 主要材料 | BNC |
| 连接器 - 电缆 | socket | 端接样式 | Solder |
| 连接器颜色 | :White | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polyethylene (PE) |
| 绝缘材料 - 类型 | Polyethylene 606 | 绝缘材料 - 材质 | polyetylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Right Angle | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :PCB | ||
产品信息
| SPG | 1 | 类型 | ZDC/BNC |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Board Lock | 极性 | Normal |
| CAD图纸 | 3D CAD Model | 连接类型 | PCB |
| 单元数量 | 1 | 射频系列/标准 | 1337542 |
环境参数
| 插拔次数 | :50 | 工作温度 | -55°C ~ 85°C |
文档与媒体
相关型号
