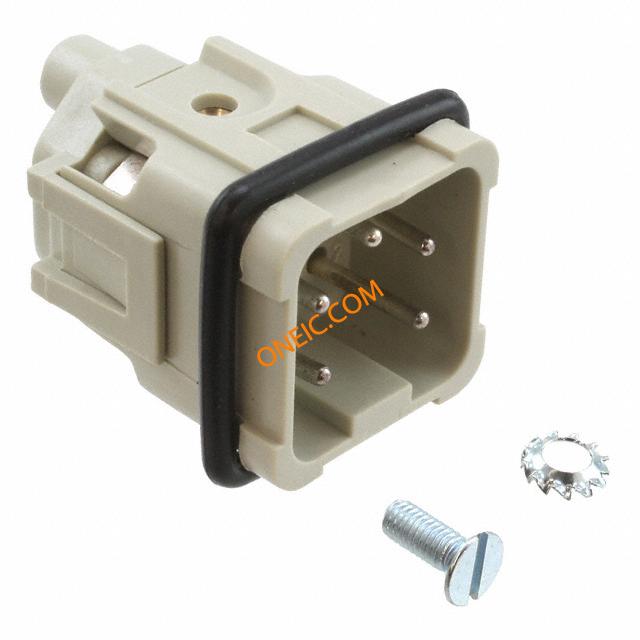

1-1103402-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Male Insert 5 POS Screw Terminal Hard Silver Plated Loose Piece HTS Connectors and Accessories CONN INSERT PIN HA.4 SERIES HA 4 way screw terminal male insert,10A Heavy Duty Power Connectors PIN INSERT SZ 1 4+PE HA.4 Connector Accessories Male Insert 5 POS Screw Terminal Hard Silver Plated Loose Piece Product Highlights:HA.4 SeriesInsertProduct Size = 1Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 4WAY HA4WAYSCREWTERMINALMALEI Connector: HTS; male; HTS HA; PIN:5; 4+PE; size 1; 10A; 250V TE Connectivity HA 系列 电源连接器插件 HA.4.Sti.S |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 接触电阻 | 2.5mΩ |
| 最大额定电流 | 10A | 绝缘电阻 | 1000MΩ |
机械参数
| 尺寸 | 1 | 颜色 | Beige |
| 重量 | 0.014 | 包装方式 | Bulk |
| 端接方式 | :Screw | 安装类型 | screw terminal |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 安装样式 | for cable | 排数 | :2 |
| 封装形式 | size 1 | 触头材料 | Brass |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 10 |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | see |
| 端接样式 | Screw | 第一触头极性 | :Pin |
| 触点数 | :4 | 接触件端接 | :Screw |
| 位数 | 4+Ground | 外壳尺寸-插件 | :1 |
| 典型触点布局 | see | 线规或范围 - mm² | 0.5...2.5mm2 |
| 触点材料 - 镀层 | silver plated | 第一连接器安装特征 | 4+PE |
产品信息
| SPG | 10 | 类型 | Insert |
| 连接器性别 | Male | 系列 | HA.4 |
| CAD图纸 | 3D CAD Model | 制造商全称 | HTS |
| 产品子类型 | Inserts | 适配器系列 | HTS HA |
| 单元数量 | 1 | 射频系列/标准 | 1103402 |
环境参数
| NEMA 机架尺寸 | :IP40, IP65 | 工作温度 | -40°C ~ 125°C |
文档与媒体
相关型号
1-1102416-7
te connectivity / amp
Connector Accessories Hood Plastic CONN HOOD PG11 THREAD HD.7 SER Connector Accessories Hood Plastic Product Highlights:HD.7 SeriesHoodProduct Size = 1Dimensions (L x H x W) = 26.50 x 50.00 x 33.00 mmLocking Device Type = Side Clip at Housing Bottom
1106406-3
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HOOD SIDE SZ1 M20 HA.3 HD Connector, Hood HA.3.STW.1.M20.G HA.3.STW.1.M20.Z HA.3.STW.1.M20.Z Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODHA.3.STW.1.
1-1102101-7
te connectivity / amp

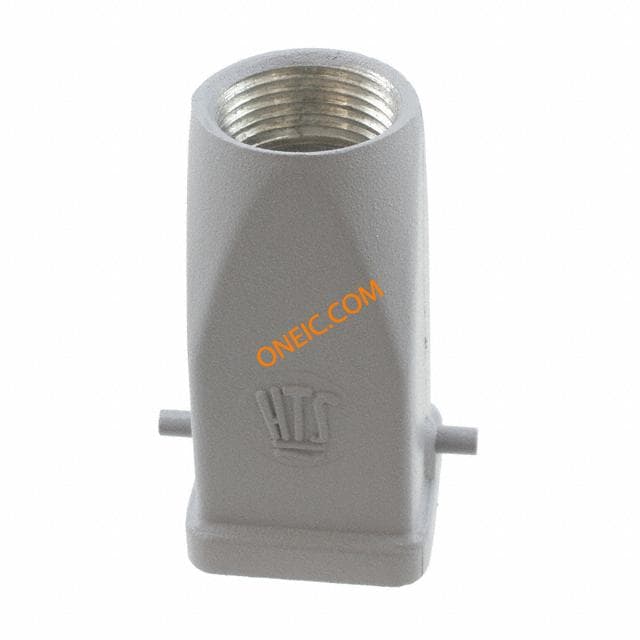

Connector Accessories Rectangular Hood Die Cast Zinc Alloy Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HOOD PG11 THREAD HA.3 SER Heavy Duty Power Connectors HOOD SZ 1 PG11 HA.3.STO.1.11.Z Connector Accessories Rectangular Hood Die Cast Zinc Alloy Silver Gray Finish Loose Piece Product Highlights:HA.3 SeriesHoodProduct Size = 1Dimensions (L x H x W) = 26.50 x 52.00 x 26.50 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HOOD, TOP ENTRY, SIZE 1, PG11, 1 LEVER Enclosure: for HTS connectors; HTS; size 1; Locking: for latch TE Connectivity 插座 电源连接器护罩 , 面板安装 HA.3.STO.1.11.Z
