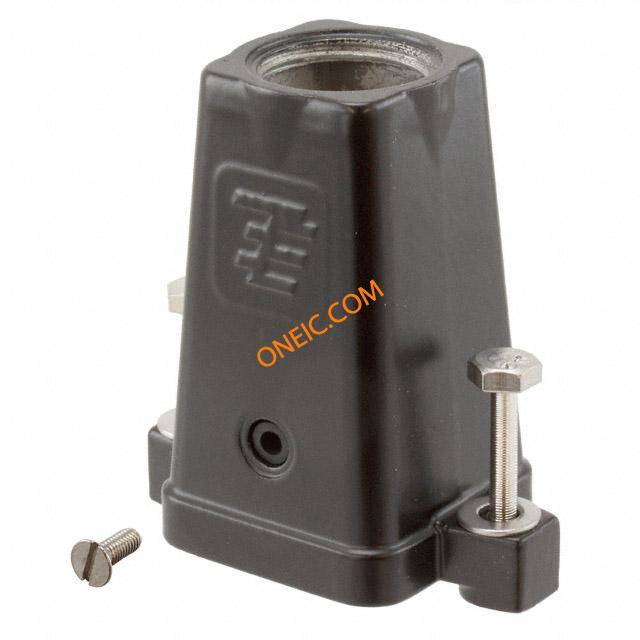

4-1102700-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood HTS Connectors and Accessories CONN HOOD TOP SZ1 PG11 EMV-K Heavy Duty Power Connectors CONN ACCESS HOOD Connector Accessories Hood Product Highlights:EMV-K SeriesHoodProduct Size = 1Dimensions (L x H x W) = 51.00 x 54.00 x32.00 mmLocking Device Type = Screw Lock on HoodSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HOOD, HTS, SIZE 1, PG11 EMV-K.3/4.STO.1.11.G |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 尺寸 | 1 | 深度 | 32 mm |
| 表面处理 | Black | 高度 | 54 mm |
| 重量 | 0.05 | 直径 | Not Required mm |
| 材料（通用） | Die Cast Aluminum | 包装方式 | Bulk |
| 出线方向 | :Top | 螺纹尺寸 | PG11 |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Hood | 外壳涂层 | Chromite TCP Passivation |
| 连接器样式 | Top | 锁定特性 | Screw Lock on Hood |
| 本体材料 | :Aluminium | 壳体材料 | Aluminum Alloy, Die Cast |
| 总长度 | 51 mm | 包装数量 | Loose Piece |
| 尺寸/外形 | 2.008" L x 1.260" W x 2.126" H (51.00mm x 32.00mm x 54.00mm) | 外壳尺寸-插件 | :1 |
| 总体尺寸 | 51.00 x 54.00 x32.00 [2.890 x 2.126 x 1.260] | ||
产品信息
| 备注 | Protection against electro-magnetic interference, pressure-tight | 类型 | Hood |
| 样式 | Top Entry | 系列 | EMV-K |
| 产品子类型 | Hood | 锁定位置 | Screw Locks on Hood |
| 射频系列/标准 | 1102700 | 适用产品/相关产品 | :EMV Series Housing Connectors |
环境参数
| 液体防护 | Yes | 防护等级 | IP68 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 80°C | ||
