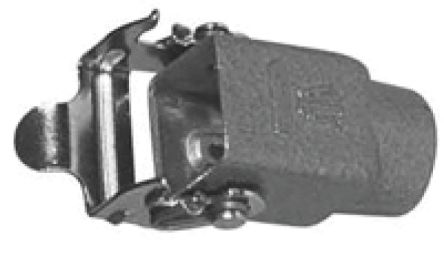

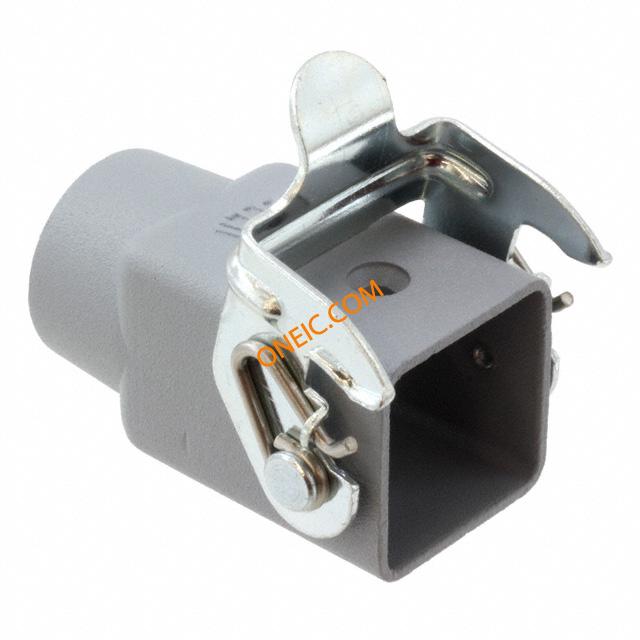

1106403-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Power Connectors HA.3.KDO-LB.1.M16.G CONN HOOD CPLG SZ1 M16 HA.3 HD Connector, Hood HA.3.KDO-LB.1.M16.G Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODHA.3.KDO-LB TE Connectivity HA 系列 电源连接器 HA.3.KDO-LB.1.M16.G |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 尺寸 | 1 | 颜色 | 灰色 |
| 宽度 | 24 mm [ .945 in ] | 高度 | 46 mm [ 1.811 in ] |
| 长度 | 24 mm [ .945 in ] | 材料（通用） | 锌压铸件 |
| 锁定类型 | 壳体底部 | 包装方式 | Bulk |
| 外壳尺寸 | Yes | 螺纹尺寸 | M16 |
| 外壳颜色 | Gray | 连接器类型 | Hood - Coupling |
| 外壳涂层 | Powder Coated | 连接器样式 | Bottom |
| 锁定特性 | Side Clip | 壳体材料 | Aluminum Alloy, Die Cast |
| 包装数量 | 10 | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 0.945" L x 0.945" W x 1.811" H (24.00mm x 24.00mm x 46.00mm) | 触点数 | 3 |
产品信息
| 类型 | Hood | 样式 | Bottom Entry |
| 系列 | HA.3 | 产品特性 | Cable to Cable |
| 产品子类型 | Accessories | 锁定位置 | Side Clip on Hood Top |
| 附件类型 | Hood Housing | 射频系列/标准 | 1106403 |
环境参数
| 液体防护 | No | 防护等级 | IP65 - Dust Tight, Water Resistant |
