1-1102362-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece HTS Connectors and Accessories CONN HSG W/CVR SZ10 PG29 HB Heavy Duty Power Connectors HB.32.SGD.1.29 Z |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 尺寸 | 10 | 表面处理 | Silver Gray |
| 材料（通用） | Die Cast Aluminum | 包装方式 | Bulk |
| 螺纹尺寸 | PG29 | 外壳颜色 | Gray |
| 连接器类型 | Base - Box Mount with Cover | 外壳涂层 | Powder Coated |
| 连接器样式 | Side | 锁定特性 | Locking Clip on Hood |
| 壳体材料 | Aluminum Alloy, Die Cast | 包装数量 | Loose Piece |
| 尺寸/外形 | 4.961" L x 3.287" W x 3.091" H (126.00mm x 83.50mm x 78.50mm) | 总体尺寸 | 126.00 x 78.50 x 82.50 [4.961 x 3.091 x 3.248] |
产品信息
| 备注 | With metal cover | 类型 | Housing |
| 样式 | Side Entry | 系列 | HB |
| 产品子类型 | Housing | 锁定位置 | Locking Clip on Hood |
| 射频系列/标准 | 1102362 | ||
环境参数
| 液体防护 | No | 防护等级 | IP65 - Dust Tight, Water Resistant |
相关型号
1-1103639-1
te connectivity / amp
Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Screw ST Panel Mount Loose Piece HTS Connectors and Accessories CONN INSERT SOCKET HE.16 SERIES HE 16 way screw terminal female insert Heavy Duty Power Connectors SKT INSERT 16+PE HE.16 SIZE 6 Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Screw ST Panel Mount Loose Piece Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Screw TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW TERM, 1-16WAY HE16WAYSCREWTERMINALFEMAL Connector: HTS; female; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V TE Connectivity HE 系列 16针 16P+E极 插座 大负荷电源连接器套件 HE.16.BU.S.B 1-16
2-1103212-3
te connectivity / amp
Conn Housing M 72Power/1Ground POS Crimp ST Loose Piece HTS Connectors and Accessories CONN INSERT FEMALE HN.2D.72 SRS Heavy Duty Power Connectors SKT INSERT 72+PE HN.2D.72 SIZE 6 HTS Connectors and Accessories Product Highlights:HN.2D.72 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, CRIMP, 72WAY HN.2D.72.BU.C.B.1-7
2-1103012-3
te connectivity / amp
Conn Heavy-Duty Rectangular PIN 40 POS Solder ST Thru-Hole Loose Piece Heavy Duty Power Connectors PIN INSERT SZ 6 HD.40.STI.C HTS Connectors and Accessories HD.40.STI.C Conn Heavy-Duty Rectangular PIN 40 POS Solder ST Thru-Hole Loose Piece Product Highlights:HD.40 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT MALE 40POS+1GND CRIMP
2-1103639-3
te connectivity / amp
Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Crimp ST Panel Mount Loose Piece HTS Connectors and Accessories CONN INSERT FEMALE HE.16 SERIES HTS 17 2 Male Straight Heavy Duty Power Connector, Panel Mount 16A,400V Heavy Duty Power Connectors INSERT RECPT SIZE 6 HE.6 Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Crimp ST Panel Mount Loose Piece Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 TE Connectivity HD 系列 2行 17针 16P+E极 插头 电源连接器 , 面板安装 HE.16.BU.C.B 1-16
2-1106007-3
te connectivity / amp
Cable Accessories Cable Fitting Metal Loose Piece HTS Connectors and Accessories CONN CABLE FITTING PG29 IP68 Heavy Duty Power Connectors EMV-Dicht. PG29 / 23 0-19 0 EMV-Dicht.PG29 / 23,0-19,0
7-1103638-1
te connectivity / amp
Conn Heavy-Duty Rectangular PIN 16Signal/1Ground POS Screw ST Panel Mount Carton CONN INSERT PIN SZ6 16POS CLAMP HD Connector Insert HE16 male clamp Heavy Duty Power Connectors HE.16.STI.SC.B1-16 Conn Heavy-Duty Rectangular PIN 16Signal/1Ground POS Screw ST Panel Mount Carton Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Connector: HTS; male; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V sale Connector: HTS; male; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V TE Connectivity HE 系列 16针 16P+E极 插头 电源连接器 HE.16.STI.SC.B1-16
1-1103638-1
te connectivity / amp
Conn Heavy-Duty Rectangular PIN 16Signal/1Ground POS Screw ST Panel Mount Carton HTS Connectors and Accessories CONN MALE INSERT HE.16 SERIES HE 16 way screw terminal male insert Heavy Duty Power Connectors PIN INSERT 16+PE HE.16 SIZE 6 Conn Heavy-Duty Rectangular PIN 16Signal/1Ground POS Screw ST Panel Mount Carton Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW TERM, 1-16WAY HE16WAYSCREWTERMINALMALE Connector: HTS; male; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V TE Connectivity HE 系列 16针 16P+E极 插头 大负荷电源连接器套件 HE.16.STI.S.B 1-16
1-1104205-1
te connectivity / amp
Conn Housing RCP 7 POS Crimp ST Loose Piece HTS Connectors and Accessories HSB.6/35.BU.S 1-6 HBE 6way screwterminal female insert,35A Heavy Duty Power Connectors SKT INSERT SZ 6 6+PE HSB.6/35 Conn Housing RCP 7 POS Crimp ST Loose Piece Product Highlights:HSB.6/35 SeriesInsertProduct Size = 6Contact Type = Screw TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW TERM, 1-6WAY HBE6WAYSCREWTERMINALFEMALE Connector: HTS; female; HSB; PIN:6; 6+PE; size 6; 35A; 400V; 6mm2 TE Connectivity HBE 系列 2行 7针 插座 电源连接器
1-1104206-1
te connectivity / amp
HSB.6/35.STI.S 7-12 HTS Connectors and Accessories HBE 7-12way screwterminal male insert35A HSB.6/35.STI.S 7-12 Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT MALE 6POS+1GND SCREW HBE7-12WAYSCREWTERMINALMALE TE Connectivity HBE 系列 6针 6P+E极 插座 大负荷电源连接器套件
2-1103013-3
te connectivity / amp
Connector Accessories Insert Loose Piece Thermoplastic HTS Connectors and Accessories HD.40.BU.C Heavy Duty Power Connectors SOCKET INSERT SZ 6 HD.40.BU.C Connector Accessories Insert Loose Piece Thermoplastic Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT FEMALE 40POS+1GND CRIMP
5-1106001-9
te connectivity / amp
Cable Accessories Cable Cable Fitting Metal HTS Connectors and Accessories CABLE FITTING PG29 THREAD METAL Cable Accessories Cable Cable Fitting Metal Loose Piece Cable Accessories Cable Cable Fitting Metal Loose Piece Product Highlights:Cable Fitting - MetalCable Diameter Range = 19.00 - 29.50 mmThread Size = PG29Packaging Method = Loose PieceSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650
7-1103639-1
te connectivity / amp
Conn Heavy-Duty Rectangular F 16Signal/1Ground POS ST Panel Mount Loose Piece HTS Connectors and Accessories CONN SCKT INSERT 16+PE POS CLAMP HTS 17 2 Male Straight Heavy Duty Power Connector, Panel Mount 16A,400V Heavy Duty Power Connectors SKT INSERT 16+PE HE.16 SIZE 6 Conn Heavy-Duty Rectangular F 16Signal/1Ground POS ST Panel Mount Loose Piece Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Spring-Clamp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDConnectorInsertHE16femaleclamp Connector: HTS; female; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V sale TE Connectivity HD 系列 2行 16针 16P+E极 插座 电源连接器 , 面板安装 HE.16.BU.SC.B1-16
1-1104207-1
te connectivity / amp
Conn Rectangular F 6Signal/1Ground POS ST Panel Mount Loose Piece HTS Connectors and Accessories HSB.6/35.BU.S 7-12 HTS 7 2 Male Straight Heavy Duty Power Connector, Panel Mount 35A,400V Conn Rectangular F 6Signal/1Ground POS ST Panel Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW TERM, 7-12WAY INSERT FEMALE 6POS+1GND SCREW HBE7-12WAYSCREWTERMINALFEM TE Connectivity H-BE 系列 2行 7针 7P极 插头 电源连接器 , 面板安装

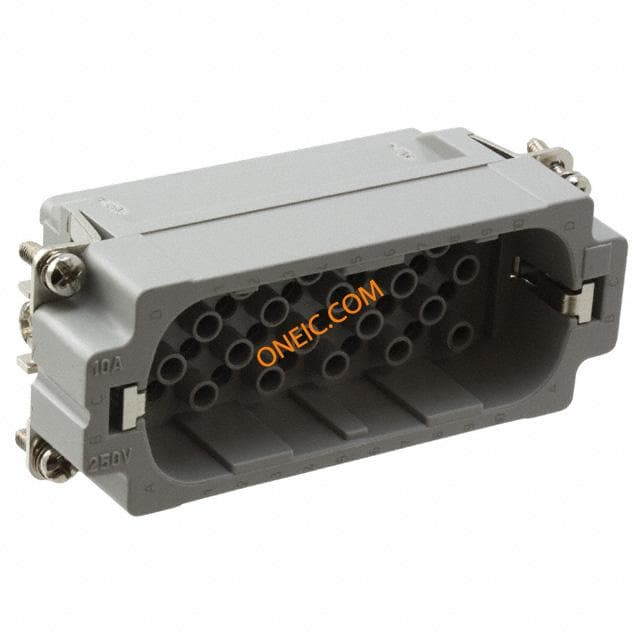

2-1103110-3
