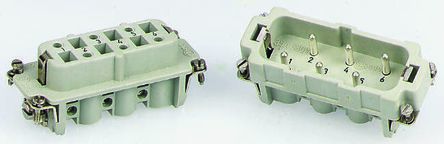

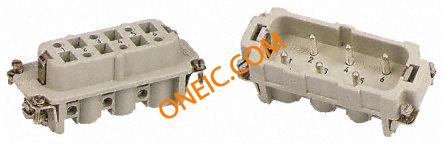

1-1104206-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | HSB.6/35.STI.S 7-12 HTS Connectors and Accessories HBE 7-12way screwterminal male insert35A HSB.6/35.STI.S 7-12 Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT MALE 6POS+1GND SCREW HBE7-12WAYSCREWTERMINALMALE TE Connectivity HBE 系列 6针 6P+E极 插座 大负荷电源连接器套件 |
| 分类 |
商业参数
| 交货时间 | 73 Days | 其他名称 | HSB.6/35.STI.S 7-12 |
| 子类别 | Connector Rectangular | 标准包装规格 | 5 |
| 标准包装数量 | 40 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 极数 | 6+PE |
| 供电电压 | 400 | 最大额定电流 | 35A |
机械参数
| 尺寸 | 6 | 颜色 | Beige |
| 包装方式 | Loose Piece | 连接器类型 | Insert |
| 接触镀层 | Gold | 插入件材料 | 插针 |
| 壳体材料 | Polycarbonate (PC), Glass Filled | 包装数量 | 5 |
| 主要材料 | IndustrialRectangular | 端接样式 | Screw |
| 触点数 | 6 | 位数 | 6+Ground |
| 外壳尺寸-插件 | 否 | ||
产品信息
| 备注 | 与料号为 1-1104204-1 的组件结合使用以构成 12 位插入件。 | 类型 | LoadedInsert |
| 连接器性别 | Male | 系列 | HSB.12/35 |
| 极性 | 6P+E | 极数格式 | 6P+E |
| 制造商全称 | HTS | 产品子类型 | 插入件 |
| 附件类型 | Contact | 适用产品/相关产品 | Machined Crimp Contact |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
