点击放大查看

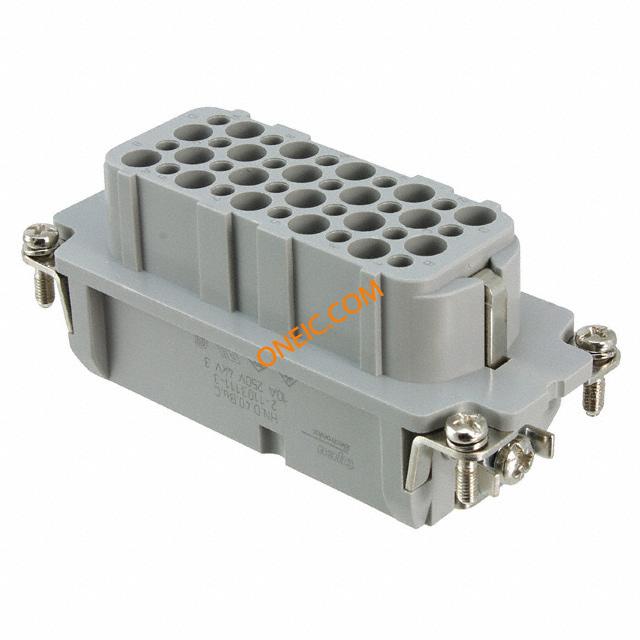

2-1103111-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Rectangular F 40Signal/1Ground POS Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN SCKT INSERT 40+PE POS CRIMP Heavy Duty Power Connectors SKT INSERT 40+PE HN.D.40 SIZE 6 Conn Rectangular F 40Signal/1Ground POS Crimp ST Cable Mount Loose Piece Product Highlights:HN.D.40 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, CRIMP, 40WAY HN.D.40.Bu.C |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
| 最小供电电压 | 250V | ||
机械参数
| 尺寸 | 6 | 颜色 | Gray |
| 深度 | 35 mm | 高度 | 33 mm |
| 重量 | 0.066 | 包装方式 | Loose Piece |
| 端接方式 | Crimp | 触头类型 | HTS HN.D |
| 安装类型 | Cable Mount | 连接器类型 | Insert without Contacts |
| 安装样式 | Cable | 排数 | :4 |
| 触头材料 | :Copper | 壳体材料 | Polycarbonate (PC), Glass Filled |
| 总长度 | 84.5 mm | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | 40Signal/1Ground |
| 接触件端接 | :Crimp | 位数 | 40+Ground |
| 外壳尺寸-插件 | :6 | ||
产品信息
| 类型 | Rectangular | 连接器性别 | RCP |
| 系列 | :HN.D | 产品子类型 | Inserts |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
