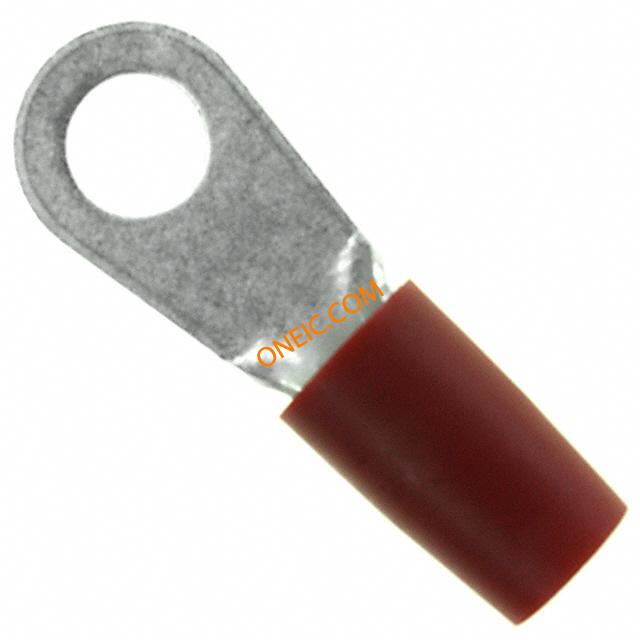

324082
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 8AWG 36.2mm 12.14mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 TERMINYL Ring terminal Terminyl 8AWG M6 Ring Tongue Terminal 8AWG 36.2mm 12.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = TERMINYLBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP, RED Terminal,RingTongue;RING-047;Copper;8AWG;1/4(M6);TERMINYL;0.250in. TE Connectivity TERMINYL 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M6 螺栓, 6.73mm内环直径, 36.2mm总长 TERMINAL,T-N R 8 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS25036-116 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 颜色 | Red | 深度 | 12.14 mm |
| 形状 | RING-047 | 表面处理 | Tin |
| 重量 | 0.331 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.040" (1.02mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 导线线规 | 8 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6.35 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Red |
| 总长度 | 1.425" (36.20mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 连接器颜色 | Red |
| 接触件尾部长度 | 1.09 [0.043] | 绝缘直径 | 6.50 [.256] Max. |
| 绝缘材料 - 类型 | Nylon | 外缘宽度 | 0.478" (12.14mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 供应商器件封装 | TERMINYL |
| 线规或范围 - AWG | 13,100 â 20,800 | 线规或范围 - mm² | 8.00² [8] |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 2 |
| 连接器性别 | Female | 系列 | 324 |
| 产品特性 | Serrated Termination | 制造商全称 | AMP |
| 设备部件号 | MS25036-116 | ||
文档与媒体
相关型号
8-35247-2
te connectivity / amp
Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Terminals TERM R 8 1/4 TERM R 8 1/4 Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 SOLIS Ring and Spade Tongue Terminals Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,SOLIS R 8 1/4
33461
TE Connectivity AMP Connectors
Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 SOLIS Ring terminal, SOLISTRAND, M6, 8 AWG Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP Terminal;RING-049;Copper;8AWG;1/4in.(M6);SOLISTRAND;0.265in.;Tin Ring terminal; M6; 8mm2; crimped; for cable; non-insulated; tinned Ring cable lug, blank 6.4 mm 6.7...10.5 mm², 33461, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M6 螺栓 TERMINAL,SOLIS R 8 1/4
1490597-1
te connectivity / amp
DIE ASSEMBLY,TERMINL #8 Punches & Dies DIE ASSEMBLY TERMINL #8 DIE SET 8AWG Crimping Dies For Solistrand Terminals And Splices
47820
te connectivity / amp

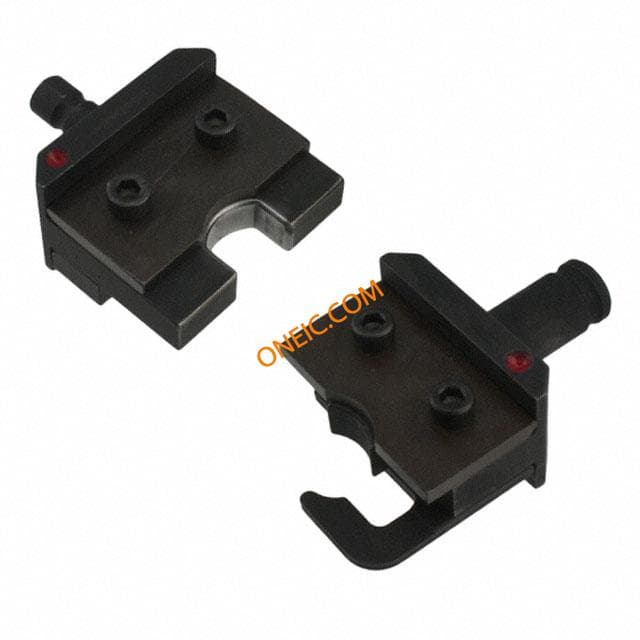

DIE TERMINYL 69051 #8 Punches & Dies DIE TERMINYL 69051 #8 DIE TERMINYL 69051 8AWG Crimping Die Consists Of A Stationary Die And A Moving Die DIETERMINYL69051#8 TE Connectivity 系列 压接工具模具 , 8 AWG 线规格, AMPOWER, TERMINYL and PLASTI-GRIP Terminals
