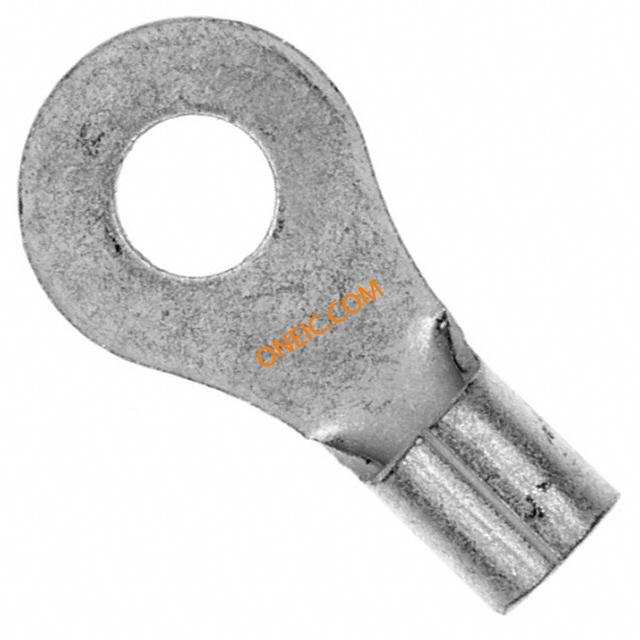

8-35247-2

制造商	TE Connectivity Ltd.
描述	Ring Tongue Terminal 8AWG 29.67mm 15.09mm Tin Loose Piece Terminals TERM R 8 1/4 TERM R 8 1/4 Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 SOLIS Ring and Spade Tongue Terminals Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,SOLIS R 8 1/4
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	标准包装规格	50
产品类别	Terminals	标准包装数量	Bulk
工厂包装数量	50

合规参数

RoHS	RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	认证机构标志	No

电气参数

核心类型

Closed Barrel

机械参数

形状	RING-048	表面处理	Tin
重量	3.78	材料（通用）	Copper
包装方式	Bulk	厚度	1.30 [0.051]
电缆类型	Regular Wire	重型	No
绝缘类型	Not Insulated	螺钉尺寸	M6
导线线规	8 AWG	端接方式	Crimp
触点形状	Ring Tongue	安装类型	Free Hanging (In-Line)
螺柱/焊片尺寸	6 mm	端子类型	Circular
电缆材料	Solid or Stranded	接触镀层	Tin
端子样式	Straight	线束直径	4.37 mm
连接器样式	Straight	触头材料	Copper
总长度	1.168" (29.67mm)	包装数量	Loose Piece
筒径	Standard	绝缘高度	Non-Insulation Support
端接样式	环形端子	材料厚度	1.22 mm [ .05 in ]
绝缘材料 - 类型	No	位数	1
外缘宽度	0.594" (15.09mm)	筒体内径	4.37 mm [ .172 in ]
舌片内部开口	1.22 mm [ .05 in ]	螺纹/螺钉/孔尺寸	6.35 mm [ .25 in ]
供应商器件封装	SOLISTRAND	接触镀层厚度	2.54 µm [ 100 µin ]
线规或范围 - AWG	13,100 â 20,800	线规或范围 - mm²	8.00Â² [8]
非扩张内径	4.37 mm [ .172 in ]

产品信息

类型	Ring Tongue Terminal	产品特性	Brazed Seam, Serrated Termination
可密封	否	检查插槽	否
制造商全称	AMP

环境参数

工作温度

170
