33461
| 制造商 | TE Connectivity Ltd. |

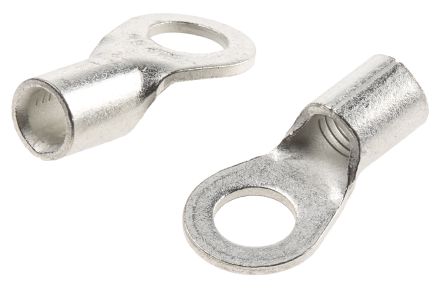

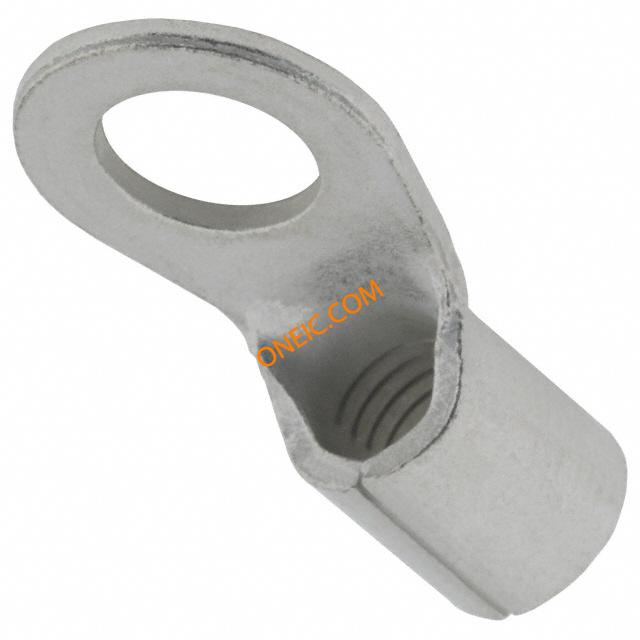

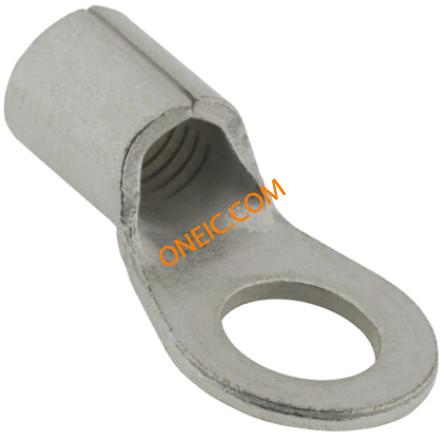

| 描述 | Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 SOLIS Ring terminal, SOLISTRAND, M6, 8 AWG Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP Terminal;RING-049;Copper;8AWG;1/4in.(M6);SOLISTRAND;0.265in.;Tin Ring terminal; M6; 8mm2; crimped; for cable; non-insulated; tinned Ring cable lug, blank 6.4 mm 6.7...10.5 mm², 33461, TE Connectivity TE Connectivity SOLISTRAND 系列 非绝缘 镀锡触芯 环形压接端子 , M6 螺栓 TERMINAL,SOLIS R 8 1/4 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | MS20659-141 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Closed Barrel | 驱动类型 | ring terminal |
机械参数
| 颜色 | Not Required | 深度 | 11.91 mm |
| 形状 | RING-049 | 表面处理 | Tin |
| 重量 | 0.295 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.22 [0.048] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 8 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 6 mm | 端子类型 | Circular |
| 连接器类型 | :Ring Tongue | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 线束直径 | 4.37 mm | 连接器样式 | Straight |
| 触头材料 | Copper | 套圈材料 | non-insulated |
| 绝缘颜色 | :Uninsulated | 总长度 | 0.933" (23.70mm) |
| 包装数量 | Loose Piece | 内径（直径） | 6.73mm |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外缘宽度 | 0.469" (11.91mm) | 安装孔直径 | M6 |
| 供应商器件封装 | SOLISTRAND | 线规或范围 - AWG | 13,100 â 20,800 |
| 线规或范围 - mm² | 8.00² [8] | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1 | 类型 | Ring Tongue Terminal |
| 类别 | 2 | 连接器性别 | Female |
| 系列 | 346 | 产品特性 | Brazed Seam, Serrated Termination |
| 制造商全称 | AMP | 单元数量 | 1 |
| 设备部件号 | MS20659-141 | ||
相关型号
1490414-2
te connectivity / amp
Connector Accessories Terminal and Splice Crimping Tool Die Set Punches & Dies INDENTER U-DIE #6-2 SOLISTRAND TOOL INDENTER U-DIE SOLIS #6-2 INDENTER;U-DIE;SOLISTRAND #6-2 Terminal And Splice Crimping Tool Die Set INDENTER,U-DIE,SOLISTRAND#6-2 Crimping dies, 1490414-2, TE Connectivity INDENTER,U-DIE,SOLISTRAND #6-2
1901002-2
te connectivity / amp
INDENTER, SOLISTRAND Punches & Dies INDENTER SOLISTRAND TOOL DIE INDENTER SOLIS 8AWG
46146
te connectivity / amp
NEST INSERT SOLIS 69097 #8 Hand Tools NEST INSERT SOLIS 69097 #8
601075
te connectivity / amp
BANTAM ROTA-CRIMP TOOL Crimpers BANTAM ROTA-CRIMP TOOL TOOL HAND CRIMP ROTA-CRIMP Rota crimp tool-AMP solistrand terminal Bantam Rota-Crimp Tool Rota-Crimp Hand Tools HAND TOOL, BANTAM ROTARY CRIMP Rotacrimptool-AMPsolistrandterminal CRIMPTOOL TE Connectivity Bantam ROTA-CRIMP 系列 SOLISTRAND Crimp Terminals and Splices 压接工具 , 适用于6.7 → 60.5 mm² 线规格
46145
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Hand Tools INDENTER INSERT SOLIS #8 INDENTER INSERT SOLIS #8
324082
TE Connectivity AMP Connectors
Ring Tongue Terminal 8AWG 36.2mm 12.14mm Tin Loose Piece Terminals RING TONGUE Ring and Spade Tongue Terminals CONN RING 8 AWG #1/4 TERMINYL Ring terminal Terminyl 8AWG M6 Ring Tongue Terminal 8AWG 36.2mm 12.14mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = TERMINYLBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, 1/4IN, CRIMP, RED Terminal,RingTongue;RING-047;Copper;8AWG;1/4(M6);TERMINYL;0.250in. TE Connectivity TERMINYL 系列, 红色 绝缘 镀锡触芯 环形压接端子 , M6 螺栓, 6.73mm内环直径, 36.2mm总长 TERMINAL,T-N R 8 1/4
59975-1
te connectivity / amp
Crimping Dies For Solistrand Terminals And Splices Crimpers HYDRAULIC HAND TOOL TOOLS, HYDRAULIC CRIMP HYDRAULICHANDTOOL HYDRAULIC HAND TOOL
1490414-1
te connectivity / amp
CRIMPING DIES FOR SOLISTRAND TERMINALS AND SPLICES Punches & Dies INDENTER U-DIE #8 INDENTER U-DIE SOLISTRAND #8 Connector Accessories Crimping Die for Solistrand Terminals and Splices INDENTER,U-DIE,SOLISTRAND#8 Crimping dies, 1490414-1, TE Connectivity INDENTER,U-DIE,SOLISTRAND #8
48355
te connectivity / amp
INDENTER INSERT, SOLIS #8 Hand Tools INDENTER INSERT #8 DIE INDENTER INSERT SOLIS 8AWG Indenter Insert and Solis
1673672-1
te connectivity / amp
CRIMP HD SOLIS W/INSR 8-2 Crimpers CRIMP HD SOLIS W/INSR 8-2 Hand Tools CRIMP HD SOLIS W/INSR 8-2 CRIMP HEAD SOLIS W/INSR 8-2AWG CRIMPHDSOLISW/INSR8-2

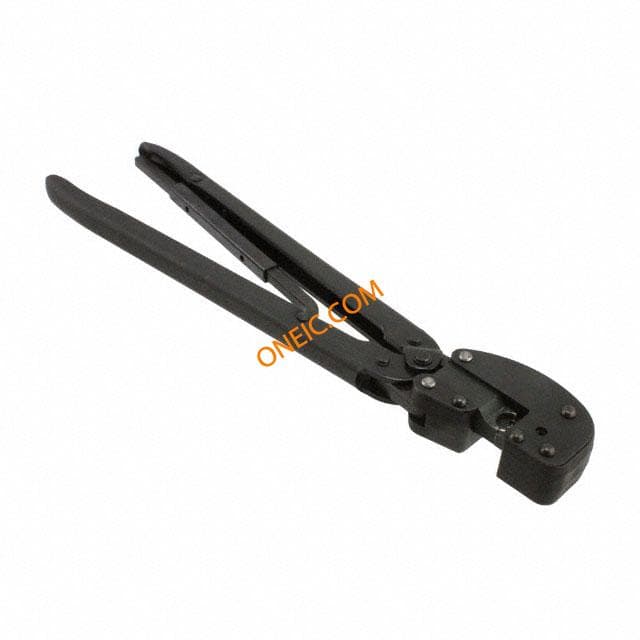

69339
