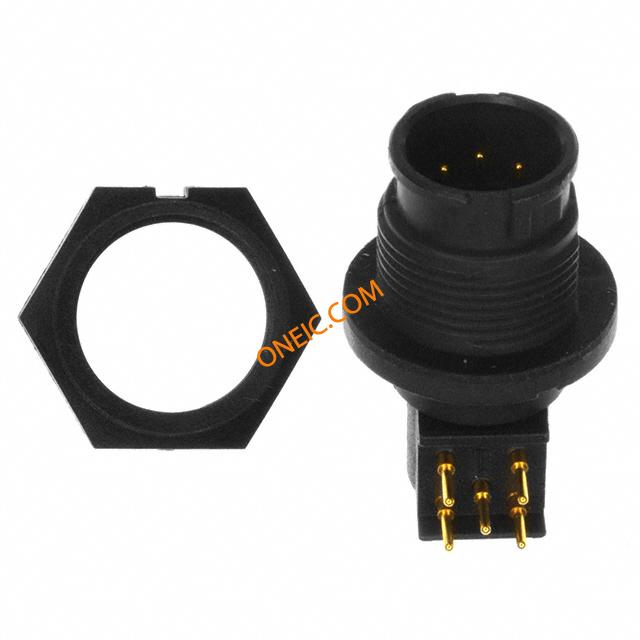

点击放大查看
EN3P5MRAPC
| 制造商 | |
| 描述 | Conn Circular PIN 5 POS Solder RA Panel Mount 5 Terminal 1 Port CONN RCPT 5POS MALE R/A PNL #20 |
商业参数
| 其他名称 | SC246 | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 4A | ||
机械参数
| 高度 | 49.2 | 直径 | 17.8 |
| 包装方式 | Bulk | 出线方向 | No |
| 方向 | Keyed | 端接方式 | Solder |
| 触头类型 | 5Signal | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 触头材料 | Copper Alloy |
| 总长度 | 38.1 | 第一触头极性 | PIN |
| 触点数 | 5 | 位数 | 5 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | PL |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
文档与媒体
