点击放大查看

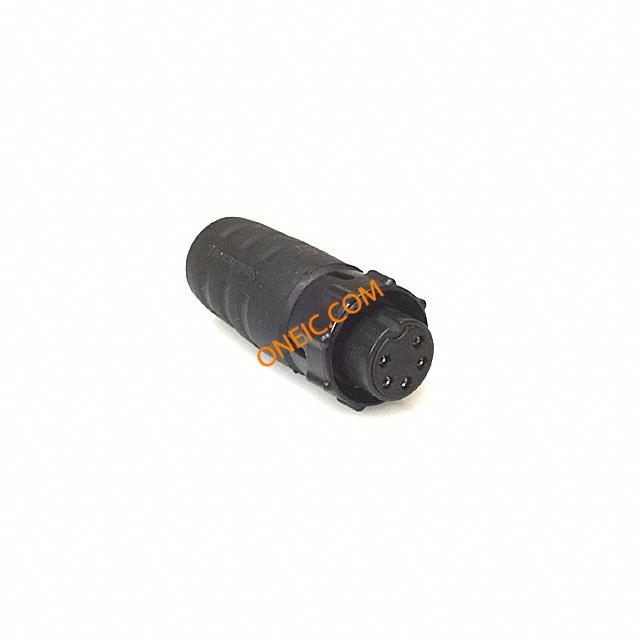

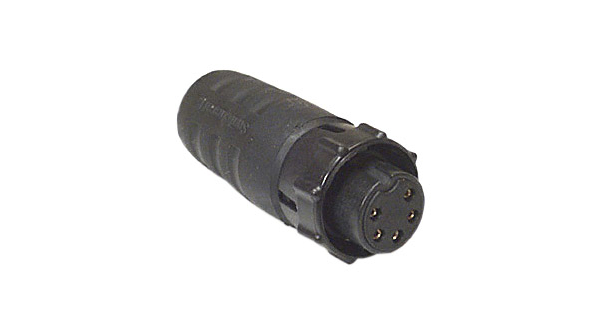

EN3C5F
| 制造商 | |
| 描述 | Standard Circular Connector 5P FEMALE CORD TYPE Conn Mini Weathertight F 5 POS Solder Cup ST Cable Mount 5 Terminal 1 Port Bulk CONN PLUG 5POS FEMALE CORD #20 Cable socket EN3, 5-pin 5, EN3C5F, Switchcraft |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1160 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Not Compliant |
电气参数
| 额定电压 | 250 | 极数 | 5 |
| 最大额定电流 | 7.5A | 额定电流 - 设备输入口 | 7.5 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 直径 | 17.86 | 包装方式 | Bulk |
| 出线方向 | Yes | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder Cup |
| 触头类型 | 5Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Gold over Nickel | 电缆端类型 | 5...7 mm |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 连接器样式 | straight |
| 锁定特性 | Bayonet lock | 触头材料 | Copper Alloy |
| 壳体材料 | Plastic | 总长度 | 39.83 |
| 端接样式 | Solder Cup | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 位数 | 5 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 类型 | Mini Weathertight | 系列 | EN3 |
| 产品特性 | Cable Clamp | 产品子类型 | Connectors |
| 适用产品/相关产品 | EN3C5FK | ||
环境参数
| 机械寿命 | Obsolete | 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40...+65 °C | ||
文档与媒体
相关型号
EN3L5MKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN MLE CONN RCPT 5POS MALE IN-LINE #20
EN3L5MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN MALE CONN RCPT 5POS MALE IN-LINE #20
EN3P5MCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP PANEL MO CONN RCPT 5POS MALE PANEL #20
EN3P5MKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 5POS MALE PANEL #20
EN3CAP
Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap CAP DUST WEATHRTIGHT FOR EN3 SRS SEALING CAP CapforEN3miniweathertightconnectorseries Protection cover; EN3 Protective cap, EN3CAP, Switchcraft
EN3P5MPX
Switchcraft
Standard Circular Connector EN3 5 PIN MALE PC PA Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS MALE PANEL #20 5PINPCBPANELCONN
EN3BOOT
Switchcraft
Standard Circular Connector PROTECTIVE BOOT Connector Accessories Boot Thermoplastic Rubber Black CONN BOOT FOR EN3 boot for en3 series Cable Boots PROTECTIVE BOOT bootforen3series
EN3L5MCX
Switchcraft
Standard Circular Connector EN3 INLINE 5 PIN MAL CONN RCPT 5POS MALE IN-LINE #20
EN3P5MCX
Switchcraft
Standard Circular Connector EN3 5 PIN MALE PANEL Conn Circular M 5 POS Crimp ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS MALE PANEL #20 EN3,5PIN,MALE,PANEL

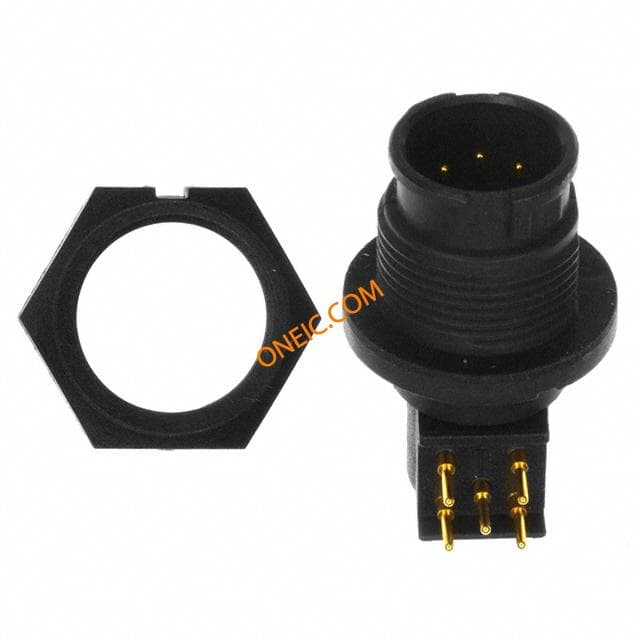

EN3P5MRAPC
