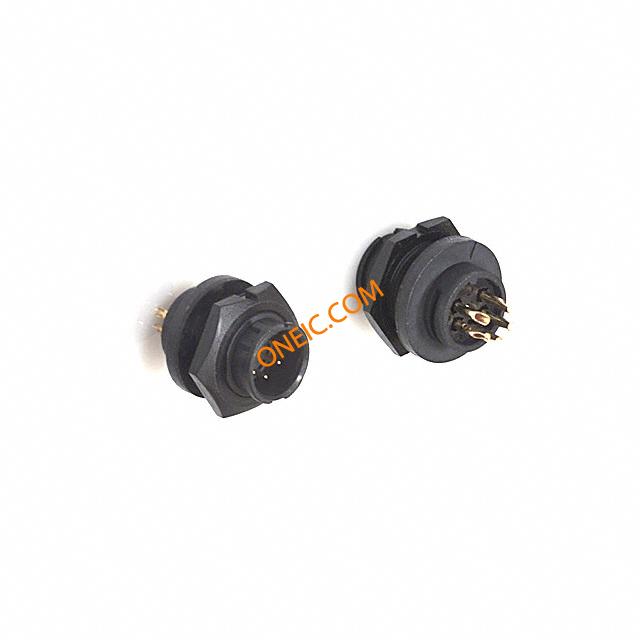

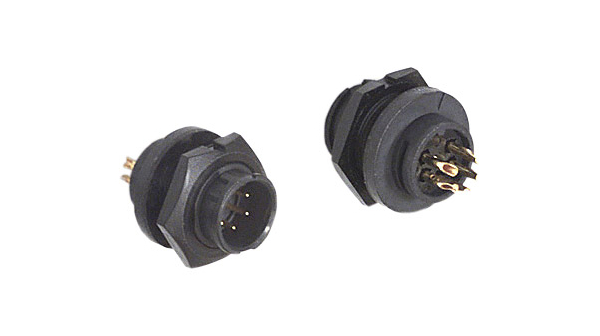

EN3P5M
| 制造商 | |
| 描述 | CONN RCPT 5POS MALE PANEL #20 Conn Mini Weathertight M 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port Bulk Device connector EN3, 5-pin 5, EN3P5M, Switchcraft |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1170 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | ||
电气参数
| 额定电压 | 250 | 极数 | 5 |
| 最大额定电流 | 7.5A | 额定电流 - 设备输入口 | 7.5 |
| 保护电压（VP）（2416） | IP 68 | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 端接方式 | Solder Cup | 安装类型 | Panel Mount, Bulkhead - Front Side Nut |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 锁定特性 | Bayonet lock |
| 触头材料 | CuNi+Au | 壳体材料 | Plastic |
| 端接样式 | Soldering Connection | 位数 | 5 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 系列 | EN3 | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | -40...+65 °C |
