点击放大查看

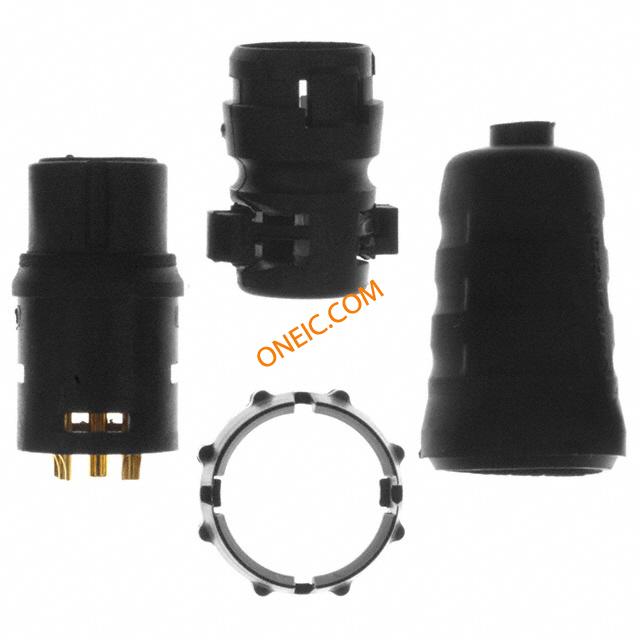

EN3C5FX
| 制造商 | |
| 描述 | Standard Circular Connector 5P FEMALE CORD TYPE Conn Mini Weathertight F 5 POS Solder Cup ST Cable Mount 5 Terminal 1 Port Bulk CONN PLUG 5POS FEMALE CORD #20 CORDCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,5PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC255 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 7.5A |
机械参数
| 直径 | 17.86 | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | 5Signal |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Bayonet Lock | 安装样式 | Free Hanging |
| 触头材料 | Copper Alloy | 壳体材料 | ThermoplasticRubber |
| 总长度 | 39.83 | 主要材料 | Sealed |
| 端接样式 | Solder Cup | 第一触头极性 | F |
| 触点数 | 5 | 位数 | 5 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Mini Weathertight | 系列 | EN3 |
| 产品特性 | Cable Clamp | 制造商全称 | EN3Series |
| 产品子类型 | Connectors | 应用细节 | Commercial |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
文档与媒体
相关型号
EN3L5MKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN MLE CONN RCPT 5POS MALE IN-LINE #20
EN3L5MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN MALE CONN RCPT 5POS MALE IN-LINE #20
EN3P5MCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP PANEL MO CONN RCPT 5POS MALE PANEL #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,
EN3P5MKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 5POS MALE PANEL #20
EN3PH5M20X
Switchcraft
Standard Circular Connector 5 PIN PANEL MALE #20 CONN MALE HOUSING 5PIN #20

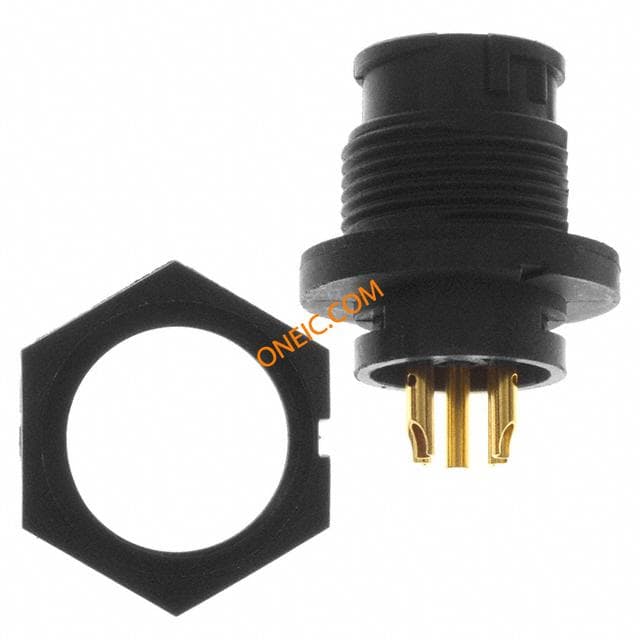

EN3P5MX
Switchcraft
Standard Circular Connector 5P MALE PANEL TYPE Conn Circular M 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS MALE PANEL #20 PANELCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,5PIN
EN3P5MPX
Switchcraft
Standard Circular Connector EN3 5 PIN MALE PC PA Conn Circular M 5 POS Solder ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS MALE PANEL #20 5PINPCBPANELCONN

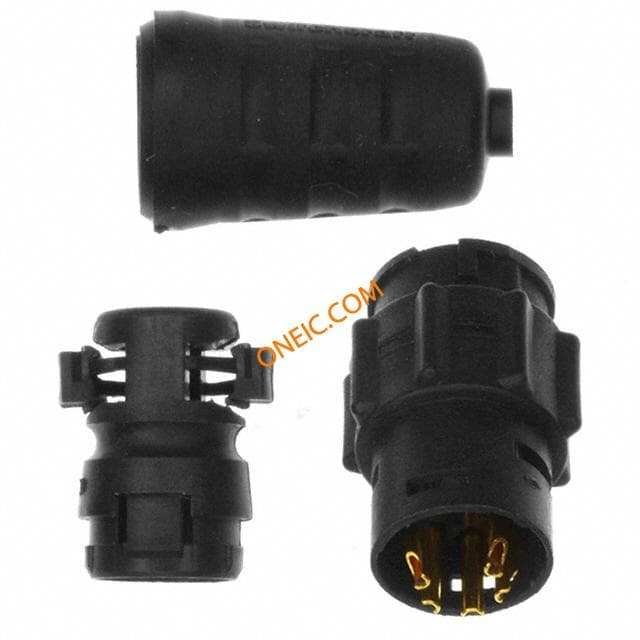

EN3L5MX
