点击放大查看

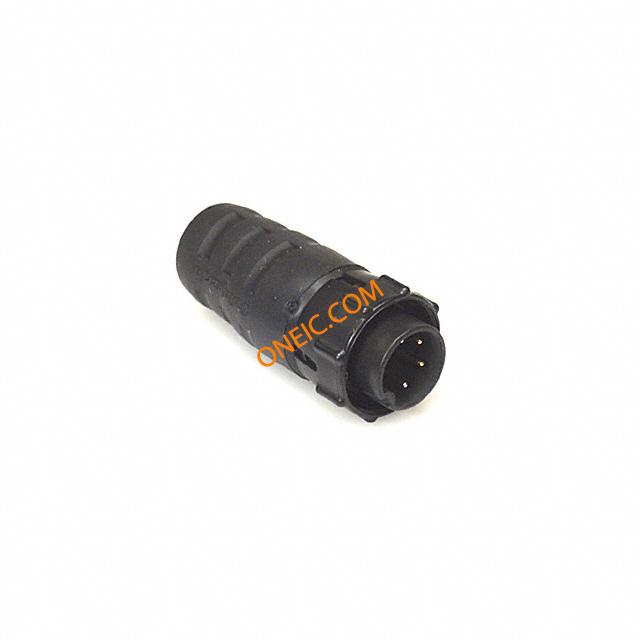

EN3C5M
| 制造商 | |
| 描述 | Conn Mini Weathertight M 5 POS Solder Cup ST Cable Mount 5 Terminal 1 Port Bulk CONN PLUG 5POS MALE CORD #20 PLUG, FREE, 5WAY Cordconnector,male,weathertight,#20contacts,5pin,bulkpackage Cordconnecotr,male,weathertight,#20contacts,5pin Cable plug EN3, 5-pin 5, EN3C5M, Switchcraft |
| 分类 |
商业参数
| 交货时间 | 44 Days | 其他名称 | SC1161 |
| 子类别 | Connector Circular | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Not Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :600V | 接触电阻 | :3.1mohm |
| 介电强度 | :600V/m | 最大额定电流 | 7.5A |
| 绝缘电阻 | :100Mohm | ||
机械参数
| 重量 | 0.005 | 直径 | 17.86 |
| 包装方式 | Bulk | 出线方向 | No |
| 导线线规 | 20 | 方向 | Keyed |
| 外壳样式 | Plastic | 端接方式 | Solder Cup |
| 触头类型 | 5Signal | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Bayonet Lock |
| 插入角度 | :- | 本体材料 | :Thermoplastic Rubber |
| 触头材料 | Copper Alloy | 壳体材料 | ThermoplasticPolymerGlassFiber |
| 总长度 | 39.83 | 主要材料 | Sealed |
| 第一触头极性 | M | 配接方向 | Threaded |
| 触点数 | 5 | 接触件端接 | :Solder |
| 位数 | 5 | 外壳尺寸-插件 | :- |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :7mm | ||
产品信息
| 类型 | Mini Weathertight | 连接器性别 | :Plug |
| 系列 | :EN3 | 产品特性 | Cable Clamp |
| 制造商全称 | EN3Series | 应用细节 | Commercial |
| 适用产品/相关产品 | EN3C5MC | ||
环境参数
| 插拔次数 | :600 | NEMA 机架尺寸 | :IP68 |
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | 工作温度 | :65°C |
文档与媒体
相关型号
EN3P5FKX
Switchcraft
Standard Circular Connector SOLDER PANEL MOUNT K CONN RCPT 5POS FEMALE PANEL #20
EN3L5FCKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN FEM. CONN RCPT 5POS FEM IN-LINE #20
EN3P5FCX
Switchcraft
Standard Circular Connector EN3 5 PIN PANEL FEMA CONN RCPT 5POS FEMALE PANEL #20
EN3P5FCKX
Switchcraft
Standard Circular Connector 5 PIN CRIMP PANEL FE CONN RCPT 5POS FEMALE PANEL #20
EN3L5FCX
Switchcraft
Standard Circular Connector 5P FEM IN-LINE TYPE #20 CRIMP CONN RCPT 5POS FEM IN-LINE #20 Conn Circular F 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Bulk
EN3CAP
Switchcraft
Standard Circular Connector PROTECTIVE CAP Connector Accessories Cap CAP DUST WEATHRTIGHT FOR EN3 SRS SEALING CAP CapforEN3miniweathertightconnectorseries Protection cover; EN3 Protective cap, EN3CAP, Switchcraft
EN3BOOT
Switchcraft
Standard Circular Connector PROTECTIVE BOOT Connector Accessories Boot Thermoplastic Rubber Black CONN BOOT FOR EN3 boot for en3 series Cable Boots PROTECTIVE BOOT bootforen3series
EN3P5FPX
Switchcraft
Standard Circular Connector 5 POS PANEL JACK CONN RCPT 5POS FEMALE PANEL #20
EN3L5FKX
Switchcraft
Standard Circular Connector EN3 INLINE 5PIN FEM CONN RCPT 5POS FEM IN-LINE #20
EN3P5F
Switchcraft
Conn Mini Weathertight F 5 POS Solder Cup ST Panel Mount 5 Terminal 1 Port Bulk CONN RCPT 5POS FEMALE PANEL #20 Device bushing EN3, 5-pin 5, EN3P5F, Switchcraft

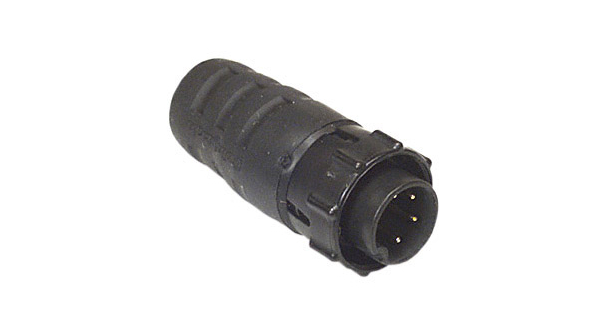

EN3C5M
