EN3C3FX
| 制造商 | |
| 描述 | Standard Circular Connector 3C FEMALE CORD W/#20 Conn Mini Weathertight F 3 POS Solder Cup ST Cable Mount 3 Terminal 1 Port Bulk CONN PLUG 3POS FEMALE CORD #20 CORDCONNECTOR,FEMALE,WEATHERTIGHT,#20CONTACTS,3PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC251 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 导线线规 | 20 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 触头类型 | 3Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Gold over Nickel |
| 行程角度 | Straight | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 壳体材料 | ThermoplasticRubber | 主要材料 | Sealed |
| 端接样式 | Solder Cup | 第一触头极性 | F |
| 触点数 | 3 | 位数 | 3 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Mini Weathertight | 连接器性别 | F |
| 系列 | EN3 | 产品特性 | Cable Clamp |
| 制造商全称 | EN3Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
文档与媒体
相关型号
EN3L3MKX
Switchcraft
Standard Circular Connector EN3 INLINE 3PIN MLE CONN RCPT 3POS MALE IN-LINE #20
EN3L3MCKX
Switchcraft
Standard Circular Connector EN3 INLINE 3PIN MALE CONN RCPT 3POS MALE IN-LINE #20
EN3PH3M20X
Switchcraft
Standard Circular Connector 3 PIN PANEL #20 MALE CONN MALE HOUSING 3PIN #20
EN3CLAMPL
Switchcraft
Cable Mounting & Accessories LARGE CABLE CLAMP CABLE CLAMP, LARGE, CABLE CLAMP LARGE CABLECLAMP,LARGE,

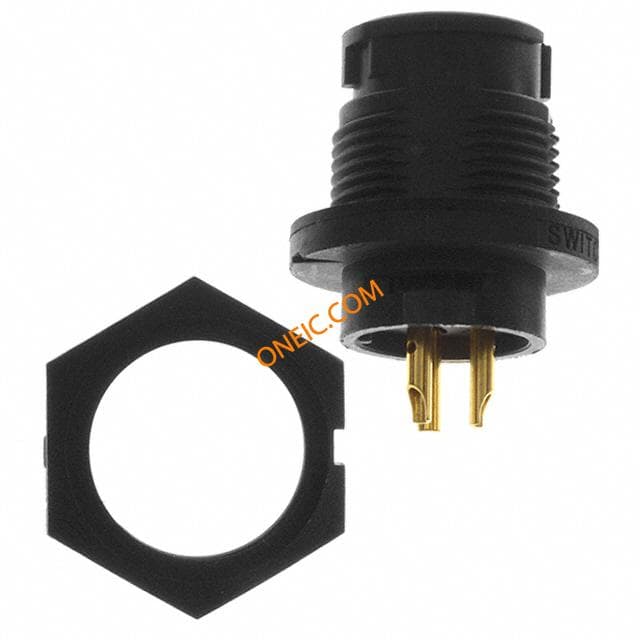

EN3P3MX
Switchcraft
Standard Circular Connector 3C MALE PANEL W/#20 CONN RCPT 3POS MALE PANEL #20 Conn Circular M 3 POS Solder Cup ST Panel Mount 3 Terminal 1 Port Bulk PANELCONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,3PIN

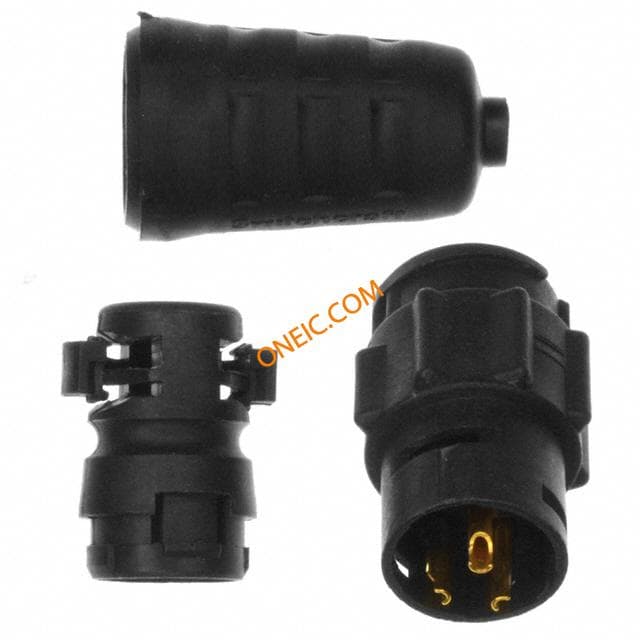

EN3L3MX
