点击放大查看

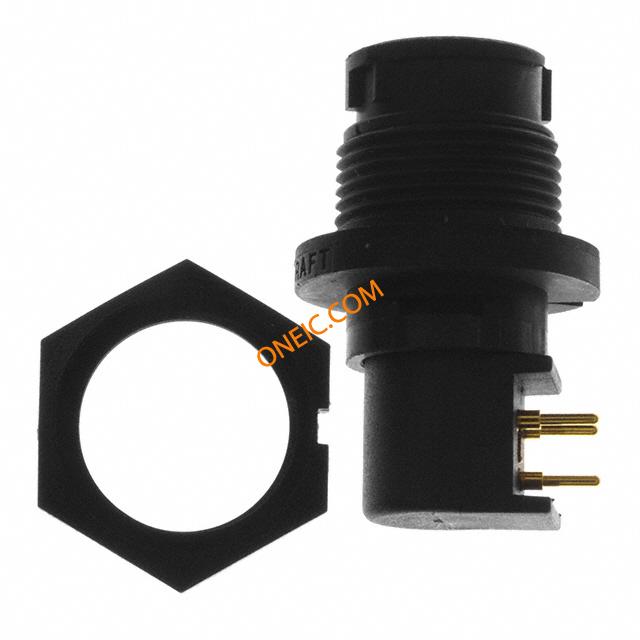

EN3P3MRAPCX
| 制造商 | |
| 描述 | Standard Circular Connector 3P R/A PANEL MT Conn Circular PIN 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Bulk CONN RCPT 3POS MALE R/A PNL #20 EN3 R/A PCB PANEL MOUNT 3way pin EN3R/APCBPANELMOUNT3waypin Switchcraft EN3 系列 3路 面板安装 直角 连接器 插头 , 公触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | EN3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 5A |
机械参数
| 外形尺寸(长x宽) | 20.62mm | 直径 | 20.62 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 20.62mm | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | 3Signal | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Plastic | 连接器用途 | Bayonet |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接排数 | 焊接 | 端接样式 | Crimp / Solder |
| 第一触头极性 | PIN | 配接方向 | Bayonet |
| 触点数 | 3 | 位数 | 3 |
| 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber | ||
产品信息
| 类型 | Circular | 连接器性别 | PL |
| 系列 | EN3 | 产品子类型 | Connectors |
环境参数
| 密封等级 | IP66, IP68 | 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof |
