点击放大查看

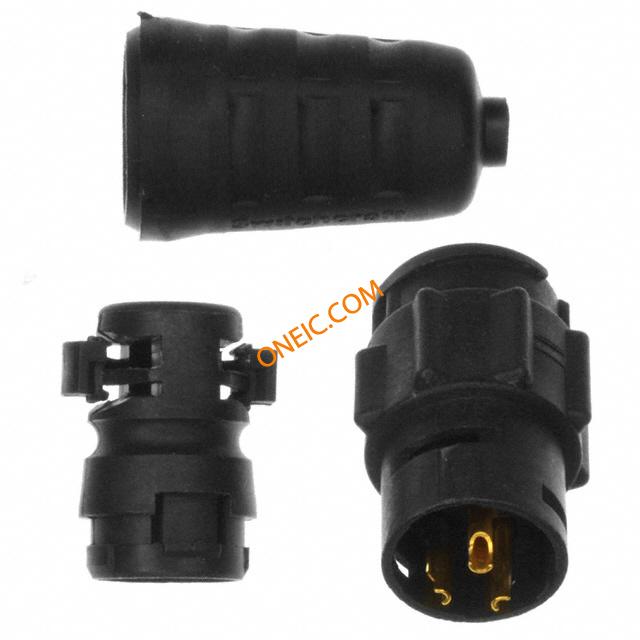

EN3L3MX
| 制造商 | |
| 描述 | Standard Circular Connector 3P M IN-LINE W/#20 CONN RCPT 3POS MALE IN-LINE #20 IN-LINECONNECTOR,MALE,WEATHERTIGHT,#20CONTACTS,3PIN |
| 分类 |
商业参数
| 商标名 | EN3 | 其他名称 | SC270 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 600V | 最大额定电流 | 7.5A |
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Gold over Nickel |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 壳体材料 | ThermoplasticRubber | 主要材料 | Sealed |
| 端接样式 | Solder Cup | 第一触头极性 | Pin (Male) |
| 配接方向 | In-Line | 触点数 | 3 |
| 位数 | 3 | 外壳材料及表面处理 | Thermoplastic Polymer, Glass Fiber |
产品信息
| 类型 | CablePlug | 系列 | EN3 |
| 产品特性 | Cable Clamp | 制造商全称 | EN3Series |
| 产品子类型 | Connectors | 应用细节 | Commercial |
环境参数
| 防护等级 | IP66/68 - Dust Tight, Water Resistant, Waterproof | ||
