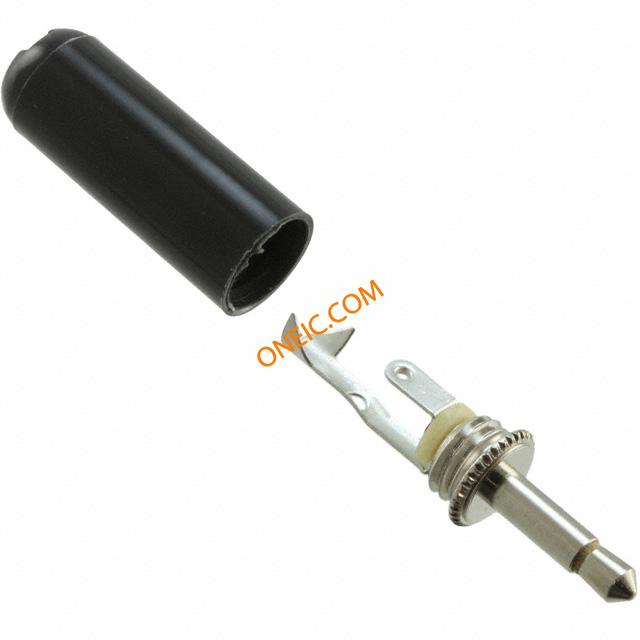

点击放大查看
750
| 制造商 | |
| 描述 | Phone Connectors 2C .141 TINI PLUG BLACK HANDLE Conn Audio PL 2 POS Solder Lug ST Cable Mount 2 Terminal 1 Port CONN PLUG PHONE TINI BLACK Plug,Phone;2(1.141in.);SolderLugandCableClamp;0.188;CopperAlloy |
| 分类 |
商业参数
| 交货时间 | 44 Days | 商标名 | Tini-Plug |
| 其他名称 | SC1055 | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Mono | 供电电压 | 3.5 mm, 1/8 in |
| 开关功能/额定值 | Not Switched | ||
机械参数
| 尺寸 | 0.141" | 颜色 | Black |
| 长度 | 1.609in. | 直径 | 9.53 mm |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 导线类型 | Mono | 端接方式 | Solder Lug |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 电缆直径 | 0.188 |
| 连接器类型 | Phone Plug | 接触镀层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel-Plated |
| 本体材料 | CopperAlloy | 触头材料 | Brass |
| 壳体材料 | Plastic | 总长度 | 40.88 mm |
| 主要材料 | Phone | 端接样式 | Solder, Crimp |
| 触点数 | 2 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 线规或范围 - mm² | 2(1.141in.) |
| 触点材料 - 镀层 | Nickel | ||
产品信息
| 类型 | Audio | 连接器性别 | PL |
| 系列 | Tini-Plug | 产品特性 | Cable Clamp |
| 主要用途 | Cable Clamp | 端口数 | 1 |
| 内部开关 | Does Not Contain Switch | 内部连接 | Does Not Contain Switch |
| 输出配置 | Free Hanging (In-Line) | 位置/触点数量 | 2 Conductors, 2 Contacts |
文档与媒体
相关型号
43A
Switchcraft
Phone Connectors 2 COND TINI JAX Conn Audio F 2 POS ST Panel Mount 4 Terminal 1 Port CONN JACK .141" MINI PHONE 2COND TINIJAX
41
Switchcraft
Phone Connectors 2 COND TINI-JAX .141 Mini Jack Conn Audio F 2 POS ST Panel Mount 4 Terminal 1 Port CONN JACK MINI PHONE 2COND Jack,Phone;Panel;2;NickelPlatedCopperAlloy;0.25in.

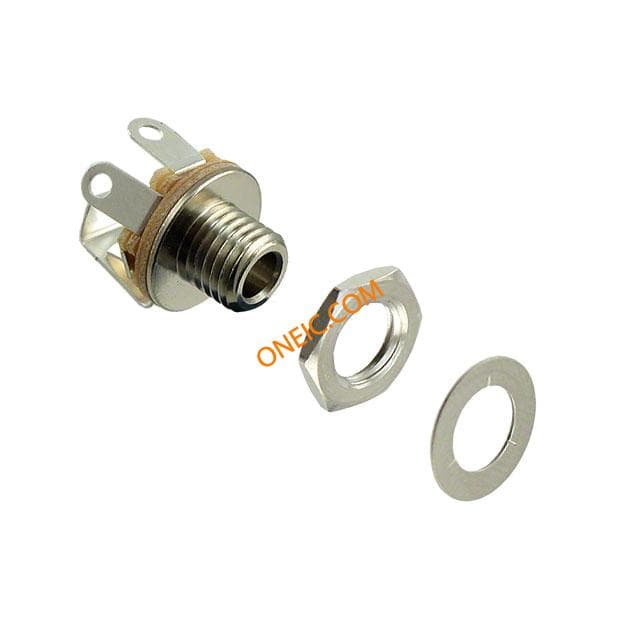

35PM2A
Switchcraft
Phone Connectors TRUE 3.5MM MONO TINI Conn Audio F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK MONO 3.5MM CLOSED CIR TRUE3.5MMMONOTINI
125
Switchcraft
Phone Connectors .14 TINI PHONE JACK Conn 1/4" Extension Jack F 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN JACK PHONE EXT .141" 2POS CONNECTOR, PHONE AUD, JACK, 2POS Jack,Extension;Cable;2;NickelPlatedCopperAlloy
42A
Switchcraft
Phone Connectors 2 COND TINI-JAX SPST Conn Audio F 2 POS ST Panel Mount 4 Terminal 1 Port CONN JACK .141" MINI PHONE 2COND Jack; Phone; Panel; 2; Nickel Plated Copper Alloy; 0.25 in. CONNECTOR, PHONE AUD, JACK, 2POS Jack,Phone;Panel;2;NickelPlatedCopperAlloy;0.25in.

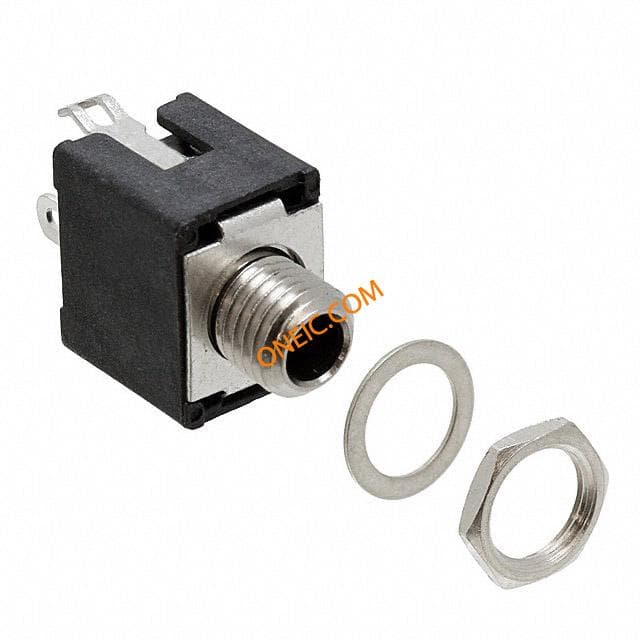

142AX
Switchcraft
Phone Connectors 2C 3.5MM ENCLOSED Conn Audio F 4 POS ST Panel Mount 4 Terminal 1 Port CONN PHONE JACK MINI .141" Phone Jack; Snap-In; Molded Plastic (Housing); Copper Alloy; 0.25 in. Conn,AV;Phone;Jack;Sz0.141";PnlMnt;Insulated;Tini-D-Jax;Plastic
35PM1
Switchcraft
Phone Connectors 3.5mm MONO PNL JACK Conn Audio F 2 POS Solder ST Panel Mount 2 Terminal 1 Port CONN JACK MONO 3.5MM OPEN CIR TRUE3.5MMMONOTINI

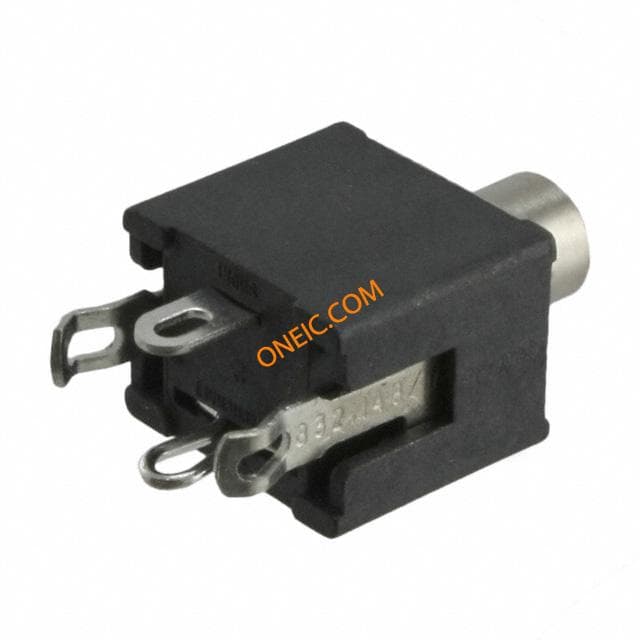

PC142AX
