VIPER17LN
| 制造商 | |
| 描述 | High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 7-Pin PDIP SMPS DIP-7 THT IC OFFLINE CONV PWM OVP OCP 8DIP AC/DC Converters Off-Line High Volt Regulator AC/DC CONVERTER, 800V, 60KHZ, 7DIP DC-DC converter; DIP7 交直流转换器, 7引脚 PDIP封装 |
| 分类 |
商业参数
| 最小起订量 | 2000 | 单位包装 | 50 |
| 产品类别 | AC/DC Converters | 标准包装数量 | Rail / Tube |
| 标准封装名称 | PDIP | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 频率 | 60000Hz | 功率（瓦） | 12W |
| 最大电压 | 800V | 额定电压 | 800 V |
| 频率范围 | 54kHz ~ 66kHz | 输出电流 | 25 mA |
| 占空比（最大） | 80 % | 输出隔离 | Isolated |
| 供电电压 | :8.5V | 输出数量 | 1 |
| 输出电流1 | 2.5A | 击穿电压 | 800V |
| 开关频率 | 60 kHz | 最小输入电压 | 23.5V |
机械参数
| 宽度 | 6.35 | 重量 | 0.000833 |
| 包装方式 | Tube | 引脚样式 | Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :7 | 封装形式 | 7PDIP |
| 材料表面处理 | :- | 总长度 | 9.27 |
| 包装数量 | PDIP | 位数 | 7 |
| 外壳尺寸-插件 | 3.3 | 供应商器件封装 | 8-DIP |
产品信息
| SPG | 50 | 类型 | SMPS |
| 匹配码 | VIPER17LN | 单元数量 | 1 |
| 标准交期 | 28 weeks | 印刷电路板数量 | 7 |
环境参数
| 工作温度 | -40 to 150 °C | 最高温度限值 | 150°C |
文档与媒体
相关型号
EVALVIPER17H-6W
STMicroelectronics
Power Management IC Development Tools DEMO BOARD 7W SINGLE OUTPUT ON VIPER17 BOARD EVAL FOR VIPER17H
STEVAL-ISA058V1
stmicroelectronics

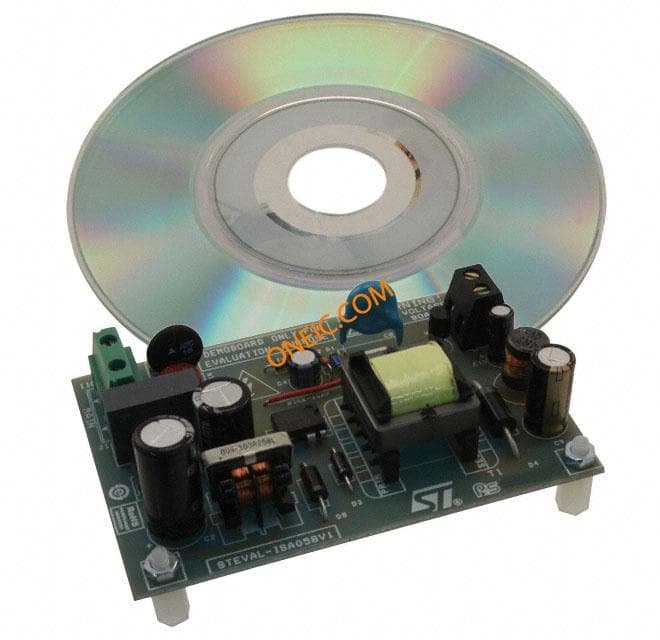

Single Output SMPS Demonstration Board Based On The Viper17 OffLine High Voltage Converter Power Management IC Development Tools HI PERFORM DEMO BRD HI VLT CONVERTER BOARD EVAL FOR VIPER17LN
STEVAL-ISA060V1
stmicroelectronics

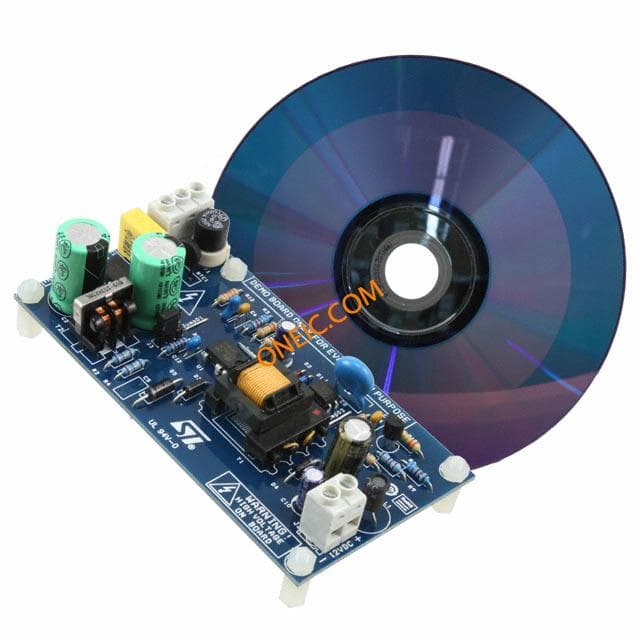

Single Output SMPS Demonstration Board Based On The Viper17 Power Management IC Development Tools 6W SINGLE OUTPUT SMPS VIPER17HN BOARD EVAL VIPER17HN 6W SMPS STEVAL-ISA060V1, Development Kit, Power Management, Demonstration Board VIPER17, SMPS, 6W, DEV BOARD 6WSMPSEVALUATIONBOARD STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件
