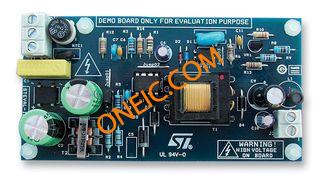

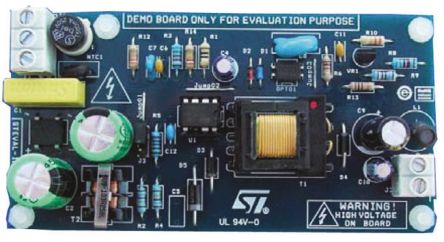

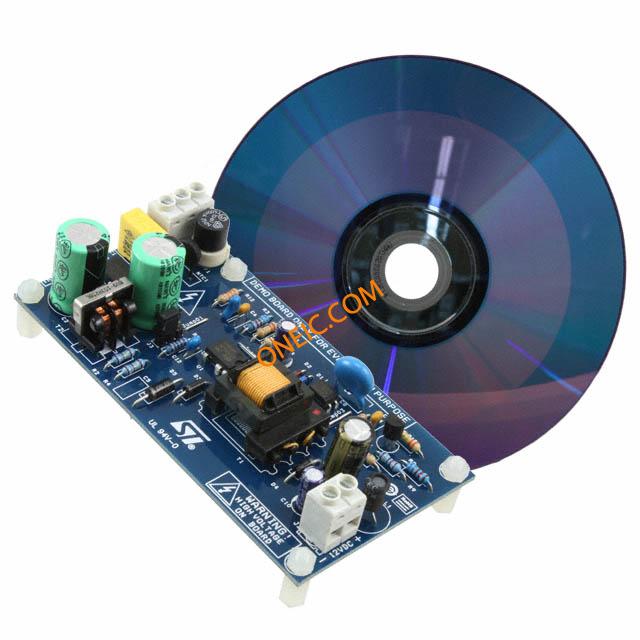

STEVAL-ISA060V1
| 制造商 | |
| 描述 | Single Output SMPS Demonstration Board Based On The Viper17 Power Management IC Development Tools 6W SINGLE OUTPUT SMPS VIPER17HN BOARD EVAL VIPER17HN 6W SMPS STEVAL-ISA060V1, Development Kit, Power Management, Demonstration Board VIPER17, SMPS, 6W, DEV BOARD 6WSMPSEVALUATIONBOARD STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84733020 |
电气参数
| 额定输出功率 | 6W | 额定电压 | 265 V |
| 输出电流 | 500mA | 元件数量 | :Viper17 |
| 稳压器拓扑 | Flyback | 最小输入电压 | 12V |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :High Frequency Output Voltage Ripple, Precision of Output Regulation | 功能 | Single output SMPS demonstration board |
| 套件类型 | :Power Management | 技术 | Power Management |
| 套件内容 | Demonstration Board | 主要用途 | AC/DC, Primary Side |
| 卡标准 | Development Kit | 输出及类型 | 1, Isolated |
| 工具类型/特性 | VIPER17 | 使用的IC/零件 | VIPer17 |
| 芯片组制造商 | :STMicroelectronics | 应用细节 | :SMPS |
