VIPER17LD
| 制造商 | |
| 描述 | High Voltage Converters 16-Pin SO N Tube AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 16-Pin SO N SMPS SO-16N SMD IC OFFLINE CONV PWM OVP 16SOIC VIPER17LD, AC-DC Converter, 16-Pin SOIC AC/DC Converters Off-Line High Volt Converter OfflineHVConverterVIPer+60kHzSO16 |
| 分类 |
商业参数
| 最小起订量 | 2000 | 单位包装 | 50 |
| 产品类别 | AC/DC Converters | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1000 | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 频率 | 60000Hz | 功率（瓦） | 12W |
| 额定电压 | 800 V | 频率范围 | 54kHz ~ 66kHz |
| 占空比（最大） | 80 % | 输出隔离 | Isolated |
| 输出数量 | 1 | 输出电流1 | 2.5A |
| 击穿电压 | 800V | 开关频率 | 60 kHz |
| 最小输入电压 | 23.5V | ||
机械参数
| 宽度 | 3.9mm | 高度 | 1.25mm |
| 长度 | 9.9mm | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 封装形式 | 16SO N |
| 冷却的封装 | SO N | 总长度 | 10(Max) |
| 包装数量 | SO N | 尺寸/外形 | 9.9 x 3.9 x 1.25mm |
| 位数 | 16 | 外壳尺寸-插件 | 1.6(Max) |
| 供应商器件封装 | 16-SO | ||
产品信息
| 类型 | SMPS | 匹配码 | VIPER17LD |
| 标准交期 | 15 weeks | 印刷电路板数量 | 16 |
环境参数
| 工作温度 | -40 to 150 °C | 最高温度限值 | 150°C |
文档与媒体
相关型号
STEVAL-ISA058V1
stmicroelectronics
Single Output SMPS Demonstration Board Based On The Viper17 OffLine High Voltage Converter Power Management IC Development Tools HI PERFORM DEMO BRD HI VLT CONVERTER BOARD EVAL FOR VIPER17LN
STEVAL-ISA060V1
stmicroelectronics
Single Output SMPS Demonstration Board Based On The Viper17 Power Management IC Development Tools 6W SINGLE OUTPUT SMPS VIPER17HN BOARD EVAL VIPER17HN 6W SMPS STEVAL-ISA060V1, Development Kit, Power Management, Demonstration Board VIPER17, SMPS, 6W, DEV BOARD 6WSMPSEVALUATIONBOARD STMicroelectronics 评估测试板 电源管理 处理器和微控制器开发套件
STEVAL-ILL017V1
stmicroelectronics
Offline Constant Current LED Driver Based On The Viper17 LED Lighting Development Tools LED DRIVER BASED ON VIPER17HN BOARD DEMO BASED ON VIPER17HN LED Driver Eval Board using VIPer17 VIPER17HN, LED DRIVER, 3.5W, DEV BOARD VIPER17HN, LED DRIVER, NON ISOLATED, DEMO BOARD LEDDRIVEREVALBOARD STMicroelectronics
STEVAL-ISA062V1
stmicroelectronics
Six W Dual Output SMPS Demonstration Board Based On The Viper17 Power Management IC Development Tools VIPER17HN 6W DUAL SMPS BRD BOARD EVAL BASED ON VIPER17 STEVAL-ISA062V1, Development Kit, Power Management, Demonstration Board VIPER17H, SMPS, 6W, DEV BOARD STMicroelectronics 演示板 电源管理 处理器和微控制器开发套件

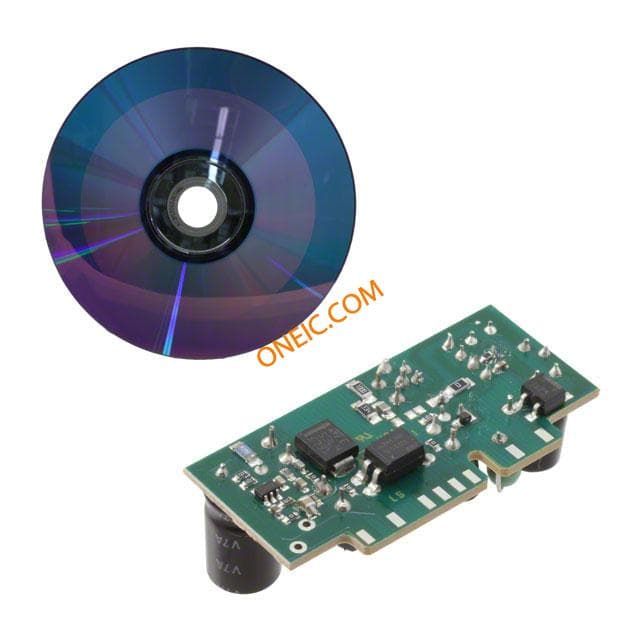

STEVAL-ISA124V1
