点击放大查看

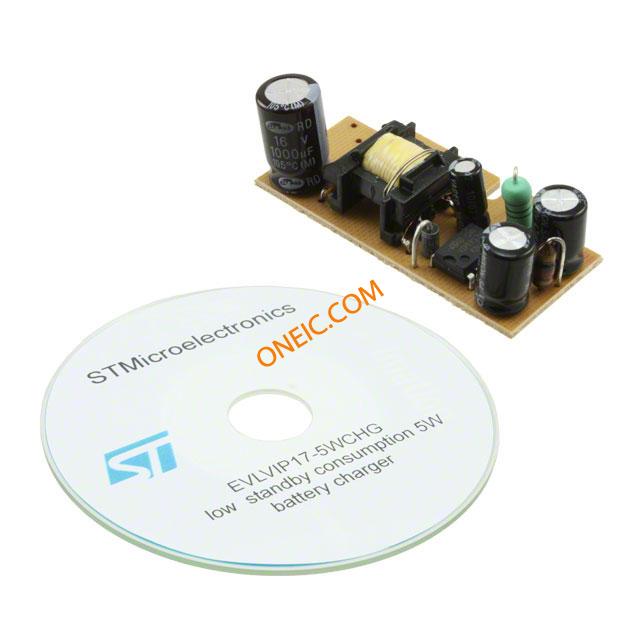

EVLVIP17-5WCHG
| 制造商 | |
| 描述 | Demonstration Board For 5 W Low Standby Consumption Battery Charger Power Management IC Development Tools EVAL BOARD VIPER17 OL HIGH VOLT CONV BOARD EVAL FOR VIPER17 VIPER17HN, TSM1052, BATTERY CHARGER, DEMO BOARD |
| 分类 |
商业参数
| 产品 | Demonstration Boards | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Boxed | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85044055 |
电气参数
| 额定输出功率 | 5W | 额定电压 | 90 VAC to 264 VAC |
| 输出电流 | 1 A | 元件数量 | :VIPER17HN |
| 稳压器拓扑 | Flyback | 开关频率 | 115kHz |
| 最小输入电压 | 5.1V | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电路板厚度 | Fully Populated | 尺寸/外形 | 53 mm x 26 mm |
产品信息
| 类型 | Development Kit | 内容 | Board |
| 功能 | Battery charger (isolated flyback) | 套件类型 | :Power Management - Battery |
| 主要用途 | AC/DC, Primary and Secondary Side | 输出及类型 | 1, Isolated |
| 工具类型/特性 | VIPER17HN | 使用的IC/零件 | TSM1052, VIPer17 |
| 芯片组制造商 | :STMicroelectronics | 应用细节 | :Battery Charger |
