点击放大查看

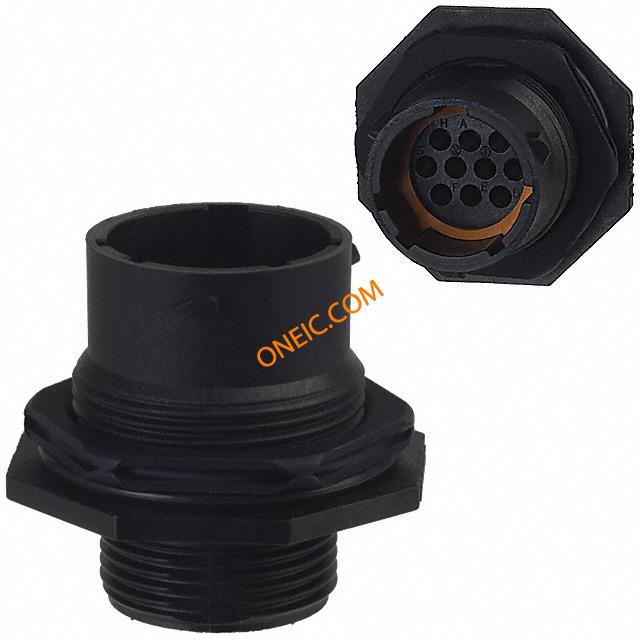

UTS71412P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 12P Pin Receptacle Jam Nut Size 14 CONN RCPT 12X1.6 MALE JAM NUT 12 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts connector,plasticcirc,size14,jamnutrecept,for12size16pincont,sealed Panel Mount Plug UTS Trim Trio UTS 12P Male 14, UTS71412P, Souriau Souriau 12路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1295 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 频率 | 30.2 | 电容 | 3.2 |
| 额定电压 | 125 V ac | 极数 | 12 |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 14 | 包装方式 | Bulk |
| 壳体颜色 | 33.9 | 外壳尺寸 | 14 |
| 方向 | Keyed | 外壳样式 | Jam Nut |
| 端接方式 | Crimp | 重量（g） | 25.7 |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 14-12 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Male |
| 外径 | 34.9 | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
| 放大器类型 | 19.3 | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
