点击放大查看

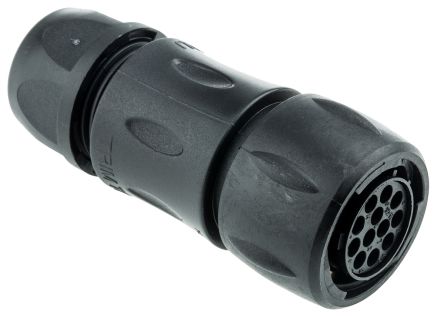

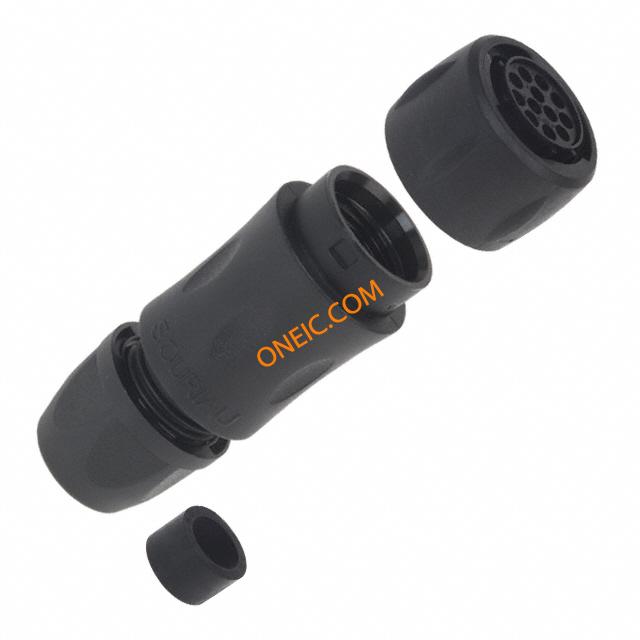

UTS6JC1412S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 12P Strt Socket Plug Backshell Size 14 Conn CPC SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port CONN PLUG CABLE 12X1.6 FEMALE 12 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts UTS Series connector,plasticcirc,size14,strplugw/bkshl,for12size16socketcont,seal Kupplungsstecker UTS Trim Trio UTS 12P Female 14, UTS6JC1412S, Souriau Souriau UTS 系列 12路 电缆安装 直向 连接器 插头 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1313 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 125 V ac | 极数 | 12 |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 深度 | 2.54 mm | 外形尺寸(长x宽) | 14 |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 壳体颜色 | 71.5 | 出线方向 | No |
| 外壳尺寸 | 14 | 方向 | Keyed |
| 端接方式 | Crimp | 触点形式 | 12Signal |
| 触点尺寸 | 16 | 触头类型 | 12Signal |
| 安装类型 | Cable Mount | 电缆端类型 | 5...14 mm |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 14-12 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 总长度 | 3.81 mm |
| 端接排数 | 压接 | 端接样式 | Crimp Connection |
| 第一触头极性 | SKT | 触点数 | 12 |
| 位数 | 12 | 外壳尺寸-插件 | 14-12 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic |
| 外壳尺寸-插入件（转换至） | 14-12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | UTS |
| 产品子类型 | Plugs | 放大器类型 | 34.6 |
| 射频系列/标准 | UTS | ||
环境参数
| 密封等级 | IP68, IP69K | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
