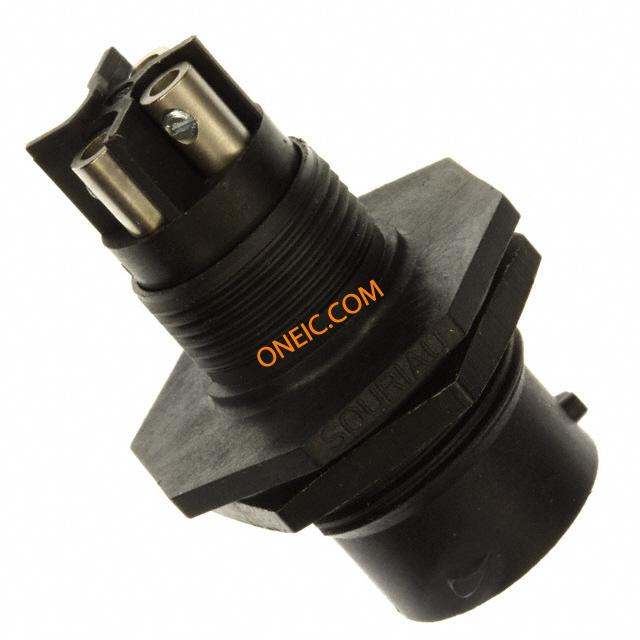

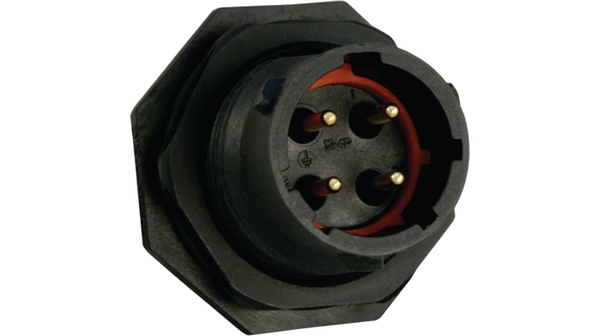

UTS7124PSCR
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Straight Pin Plug Jam Nut Size 12 04P JAM NUT MALE SHELL12 SCR CONN RCPT JAM NUT 4POS M SCREW 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts RECEPTACLE, SCREW, SIZE12, 4WAY, PIN JamNutReceptacleScrewContacts Panel Mount Plug UTS Trim Trio UTS 4P Male 12, UTS7124PSCR, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 最小起订量 | 25 | 商标名 | Trim Trio |
| 单位包装 | 25 | 其他名称 | SOU1535 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | UL94V-0 | 保护特性 | 68/69K |
电气参数
| 额定电压 | 2000V | 最大额定电流 | 10A |
机械参数
| 重量 | 0.016 | 包装方式 | Bulk |
| 外壳尺寸 | 12 | 方向 | N (Normal) |
| 外壳样式 | Jam Nut | 端接方式 | Screw |
| 安装类型 | Panel Mount, Bulkhead - Front Side Nut | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 12-4 |
| 本体材料 | :Thermoplastic | 触头材料 | Copper Alloy |
| 端接样式 | MALE | 第一触头极性 | Male |
| 触点数 | 04 | 接触件端接 | :Screw |
| 位数 | 4 | 外壳尺寸-插件 | 12-4 |
| 外壳材料及表面处理 | Thermoplastic | 接触镀层厚度 | 16µin (0.40µm) |
| 触点材料 - 镀层 | -40 to 105 | 第一连接器安装类型 | :Panel |
产品信息
| 连接器性别 | Female | 系列 | TRIMTRIO |
| 产品特性 | Cap (Cover), Dust | 匹配码 | UTS7124PSCR |
| CAD图纸 | 3D CAD Model | 适配器类型 | JamNut |
| 产品子类型 | Receptacles | 标准交期 | 8 weeks |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
