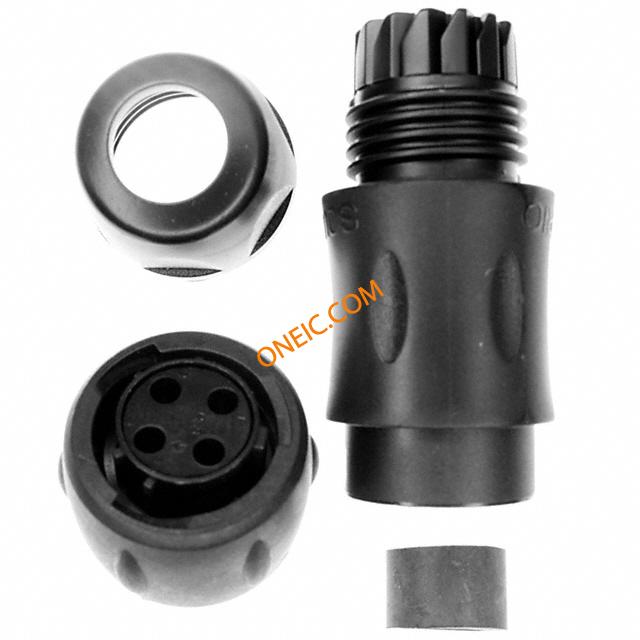

UTS6JC124S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 14P Strt Socket Plug Backshell Size 12 CONN PLUG CABLE 4X1.6 FEMALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts UTS Series connector,plasticcirc,size12,strplugw/bkshl,for4size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 3+PEP Female 12, UTS6JC124S, Souriau Souriau UTS 系列 4路 电缆安装 直向 连接器 插头 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1309 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 250 V ac | 极数 | 3+PE |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 12 | 包装方式 | Bulk |
| 壳体颜色 | 66.7 | 外壳尺寸 | 12 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 电缆端类型 | 3...12 mm |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 12-4 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Female |
| 触点数 | 4 | 位数 | 4 |
| 外壳尺寸-插件 | 12-4 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTS | 产品子类型 | Plugs |
| 放大器类型 | 29.7 | ||
环境参数
| 密封等级 | IP68, IP69K | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UTS1JC124PSCR
Souriau
Standard Circular Connector 4P Pin Recept Sz 12 Cable Mnt Backshell CONN RCPT IN-LINE 4POS M SCREW 4 Pole Female Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts RECEPTACLE, SCREW, SIZE12, 4WAY, PIN Inlinereceptacle,backshell,screwcontact Souriau 4路 电缆安装 直向 连接器 插座 , 公触点
UTS1JC124P
Souriau
Standard Circular Connector 4P Pin Recept Sz 12 Cable Mnt Backshell CONN RCPT IN-LINE 4POS W/O PINS 4 Pole Female Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts Cable plug Trim Trio UTS 3+PEP Male 12, UTS1JC124P, Souriau Souriau 4路 电缆安装 直向 连接器 插座 , 公触点
SC24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 24-26AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 26 to 24AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,26-24awgwire Contact;Socket;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
UTS7124P
Souriau
Standard Circular Connector 4P Straight Pin Plug Jam Nut Size 12 CONN RCPT 4X1.6 MALE JAM NUT 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts connector,plasticcirc,size12,jamnutrecept,for4size16pincont,sealed Panel Mount Plug UTS Trim Trio UTS 3+PEP Male 12, UTS7124P, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 公触点
UTS7124PSCR
Souriau
Standard Circular Connector 4P Straight Pin Plug Jam Nut Size 12 04P JAM NUT MALE SHELL12 SCR CONN RCPT JAM NUT 4POS M SCREW 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts RECEPTACLE, SCREW, SIZE12, 4WAY, PIN JamNutReceptacleScrewContacts Panel Mount Plug UTS Trim Trio UTS 4P Male 12, UTS7124PSCR, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 公触点
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格

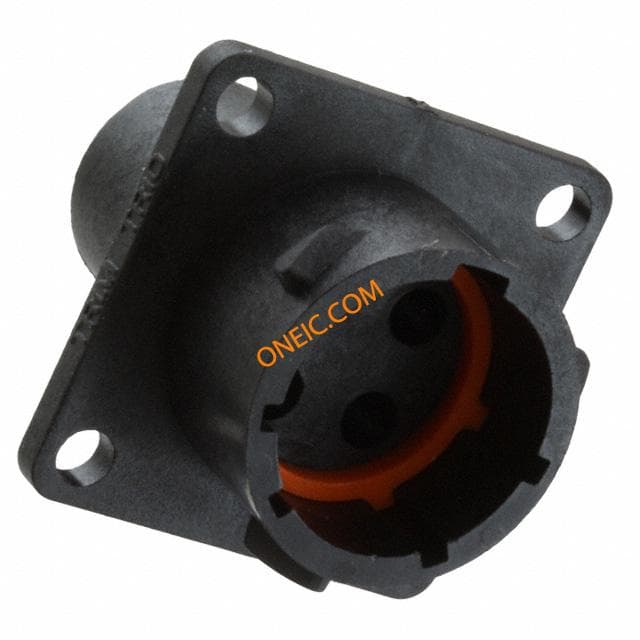

UTS0124P
