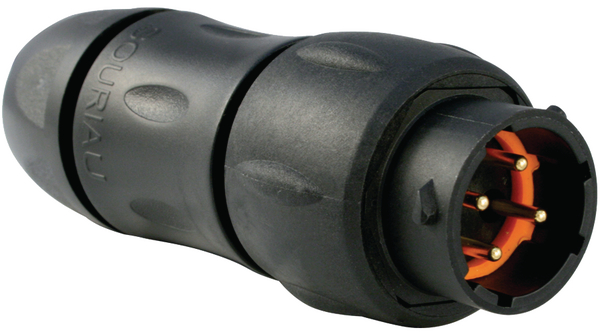

UTS1JC124P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 4P Pin Recept Sz 12 Cable Mnt Backshell CONN RCPT IN-LINE 4POS W/O PINS 4 Pole Female Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts Cable plug Trim Trio UTS 3+PEP Male 12, UTS1JC124P, Souriau Souriau 4路 电缆安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1627 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 500 V | 极数 | 3+PE |
| 最大额定电流 | 10 A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 12 | 包装方式 | Bulk |
| 外壳尺寸 | 12 | 方向 | Keyed |
| 端接方式 | Screw Down | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 电缆端类型 | 3...12 mm | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | In-Line |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | straight |
| 插入角度 | 12-4 | 锁定特性 | Bayonet locking |
| 壳体材料 | Thermoplastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Without Pin Contacts |
| 连接器颜色 | black | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 12-4 |
| 第一连接器极性 | Male | 外壳材料及表面处理 | Thermoplastic |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacles |
环境参数
| 防护等级 | IP 68, IP 69 | 工作温度 | +105°C |
文档与媒体
相关型号
UTS12DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 12 CONN RCPT SEALING CAP SIZE 12 UTS RECEPTACLE DUSTCAP - SIZE 12 DUST CAP, RECEPTACLE, SIZE12 connectoraccessory,dustcapforsize12uts-seriesreceptacle Cap for receptacles size 12, UTS12DCG, Souriau
UTS712CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Green CONN RCPT CODING RING SIZE12 GRN RECEPTACLE COLOR CODING SIZE 12 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,green Coding ring for receptacles size 12, UTS712CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 12
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
UTS6JC124SSCR
Souriau
Standard Circular Connector 14P Strt Socket Plug Backshell Size 12 CONN PLUG CABLE 4POS FMALE SCREW 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts PLUG, SCREW, SIZE12, 4WAY, SKT CablePlug,BackShell,ScrewContacts Coupling Socket UTS Trim Trio UTS 4P Female 12, UTS6JC124SSCR, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 母触点
UTS6JC124S
Souriau
Standard Circular Connector 14P Strt Socket Plug Backshell Size 12 CONN PLUG CABLE 4X1.6 FEMALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts UTS Series connector,plasticcirc,size12,strplugw/bkshl,for4size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 3+PEP Female 12, UTS6JC124S, Souriau Souriau UTS 系列 4路 电缆安装 直向 连接器 插头 , 母触点
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts

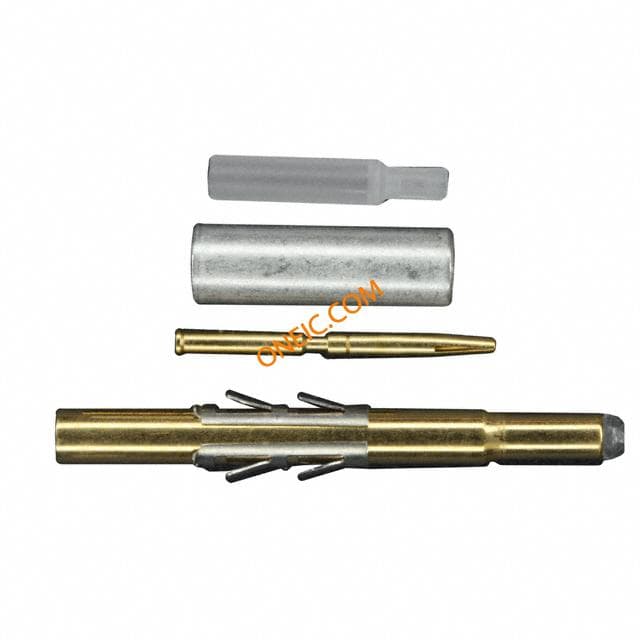

RMDXK-10D28
SOURIAU
Connector Accessories Male Coaxial Contact Kit Bag CONTACT PIN COAX #16 SUBMINI KIT Male #16 coax crimp contact connectorcomp,size16pincontactkit,forcoaxialandtwistedpaircable

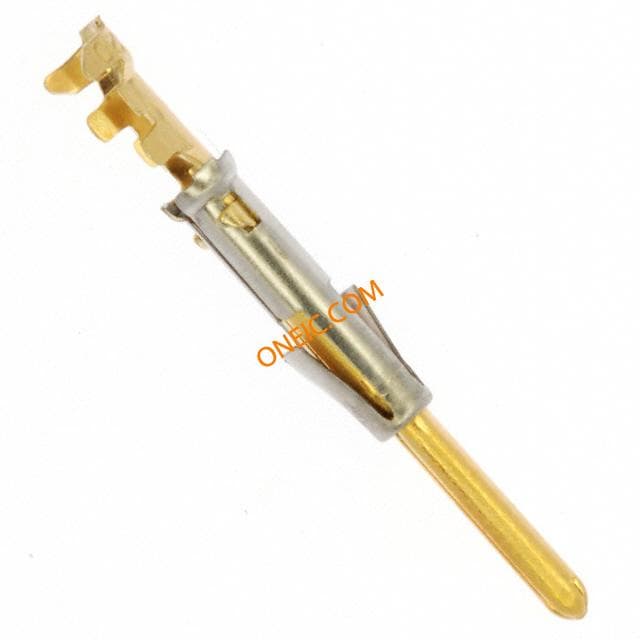

SM20ML-1S6
