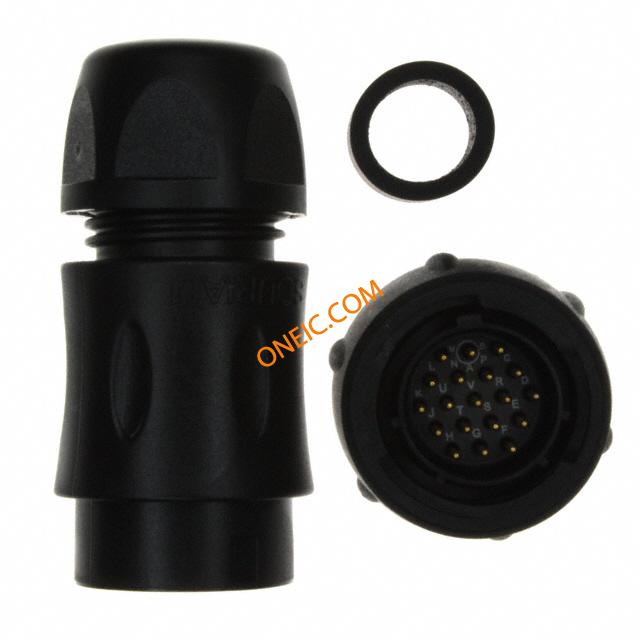

UTS6JC14E19P
| 制造商 | SOURIAU SAS |
| 描述 | Circular MIL Spec Connector 19P Strt Pin Plug Backshell Size 14E CABLE HANDSOLTER CONT PLUG CONN PLUG CABLE 19POS W/PIN 19 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts Standard Circular Connector 19P Strt Pin Plug Backshell Size 14E PLUG, HISEAL, SIZE14, 19WAY, PIN CablePlugwith19PinContacts Coupling plug UTS Hi seal 19P Male 14, UTS6JC14E19P, Souriau Souriau 19路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 最小起订量 | 50 | 商标名 | Trim Trio |
| 单位包装 | 50 | 其他名称 | SOU1520 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 认证机构 | UL94V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | BACKSHELLA |
| 电阻公差 | Gasoil,MineralOil,AcidBath,BasicBath | ||
机械参数
| 颜色 | Black | 重量 | 0.02 |
| 包装方式 | Bulk | 外壳尺寸 | 14 |
| 方向 | N (Normal) | 端接方式 | Solder Cup |
| 触点形式 | Male | 触头类型 | PLASTIC |
| 螺母材料 | Metal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 14-19 | 本体材料 | :Thermoplastic |
| 触头材料 | :Copper | 端接样式 | MALE |
| 第一触头极性 | Male | 触点数 | 19 |
| 接触件端接 | :Solder | 位数 | 19 |
| 外壳尺寸-插件 | 14-19 | 外壳材料及表面处理 | Thermoplastic |
| 典型触点布局 | PLUG | 接触镀层厚度 | 16µin (0.40µm) |
| 触点材料 - 镀层 | -40 TO 105 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | UTSConnector | 连接器性别 | Male |
| 系列 | TRIMTRIO | 匹配码 | UTS6JC14E19P |
| 产品子类型 | Plugs | 标准交期 | 10 weeks |
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
