点击放大查看

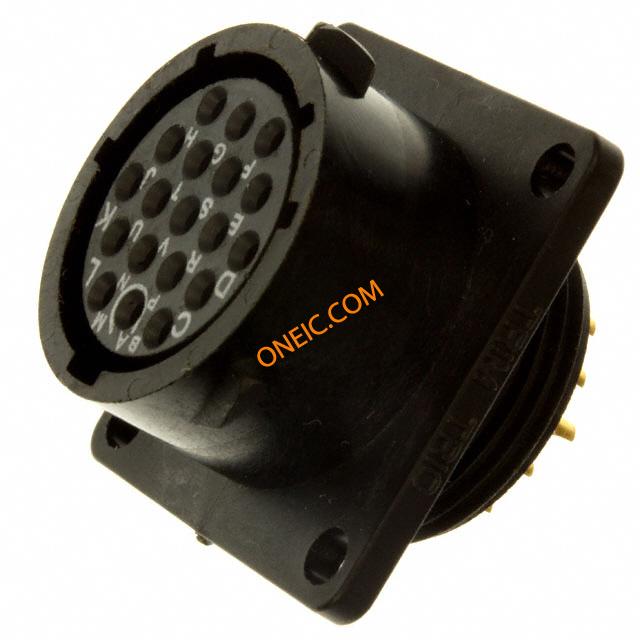

UTS014E19S
| 制造商 | SOURIAU SAS |
| 描述 | Circular MIL Spec Connector 19P Sckt Receptacle Square Flange Sz 14E CONN RCPT SQ FLANGE 19POS W/SCKT 19 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts Standard Circular Connector 19P Sckt Receptacle Square Flange Sz 14E RECEPTACLE, HISEAL, SIZE14, 19WAY, SKT SquareFlangeReceptaclewith19SocketContacts Panel Mount Socket with Flange UTS Hi seal 19P Female 14, UTS014E19S, Souriau Souriau 19路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1513 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 4A |
| 电阻公差 | Gasoil,MineralOil,AcidBath,BasicBath | ||
机械参数
| 颜色 | Black | 重量 | 0.02 |
| 包装方式 | Bulk | 外壳尺寸 | 14 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 端接方式 | Solder Cup | 触点形式 | Female |
| 触头类型 | SolderContactsLoaded | 螺母材料 | Metal |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 安装样式 | Panel | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 14-19 | 本体材料 | :Thermoplastic |
| 触头材料 | :Copper | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 19 |
| 接触件端接 | :Solder | 位数 | 19 |
| 外壳尺寸-插件 | 14-19 | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 16µin (0.40µm) | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | UTSConnector | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| 产品子类型 | Receptacles | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
