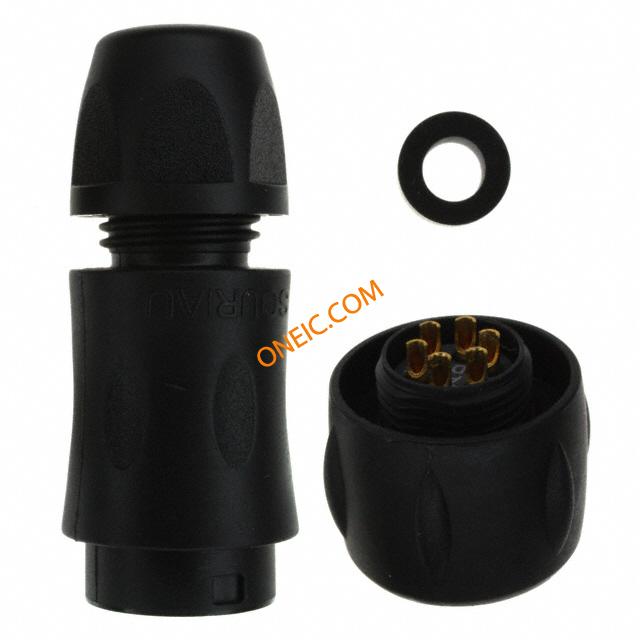

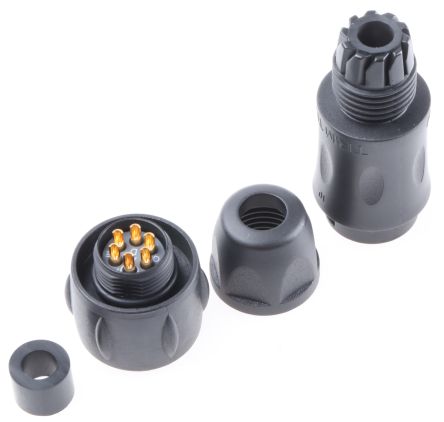

UTS6JC10E6P
| 制造商 | SOURIAU SAS |
| 描述 | Circular MIL Spec Connector 6P Straight Pin Plug Backshell Size 10E CONN PLUG CABLE 6POS W/PIN 6 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts UTS Series PLUG, HISEAL, SIZE10, 6WAY, PIN CablePlugwith6PinContacts Coupling plug UTS Hi seal 6P Male 10, UTS6JC10E6P, Souriau Souriau UTS 系列 6路 电缆安装 直向 连接器 插头 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1516 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | MIL类型 | MIL-DTL-26482 |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 6A |
| 电阻公差 | Gasoil,MineralOil,AcidBath,BasicBath | ||
机械参数
| 颜色 | Black | 重量 | 0.02 |
| 包装方式 | Bulk | 外壳尺寸 | 10 |
| 方向 | N (Normal) | 端接方式 | Solder Cup |
| 触点形式 | Male | 触头类型 | CrimpContactsSupplySeparately |
| 螺母材料 | Metal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳材料（壳体） | Thermoplastic |
| 插入角度 | 10-6 | 本体材料 | :Thermoplastic |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | Solder | 第一触头极性 | Male |
| 触点数 | 6 | 接触件端接 | :Solder |
| 位数 | 6 | 外壳尺寸-插件 | 10-6 |
| 外壳材料及表面处理 | Thermoplastic | 接触镀层厚度 | 16µin (0.40µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | UTSConnector | 连接器性别 | Male |
| 系列 | UTS | 产品子类型 | Plugs |
环境参数
| 密封等级 | IP68 | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 105°C | ||
