点击放大查看

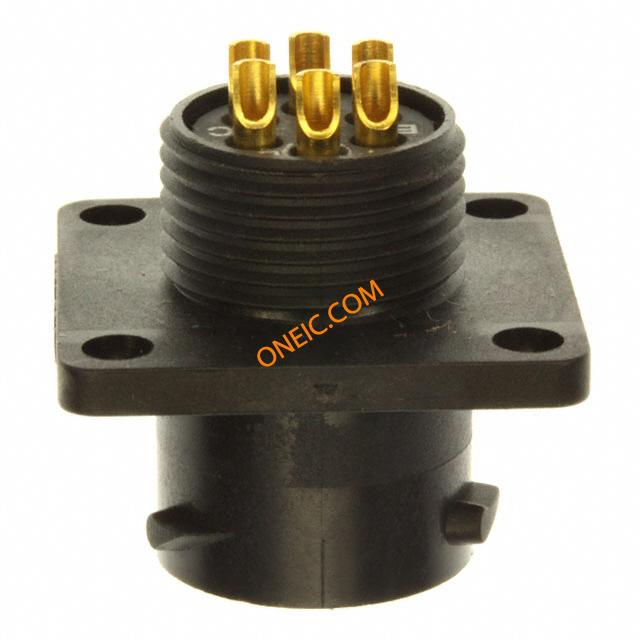

UTS010E6S
| 制造商 | SOURIAU SAS |
| 描述 | Circular MIL Spec Connector 6P Sckt Receptacle Square Flange Sz 10E CONN RCPT SQ FLANGE 6POS W/SCKT 6 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 10 with Female Contacts Standard Circular Connector 6P Sckt Receptacle Square Flange Sz 10E SquareFlangeReceptaclewith6SocketContacts Panel Mount Socket with Flange UTS Hi seal 6P Female 10, UTS010E6S, Souriau Souriau 6路 面板安装 直向 连接器 插座 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1509 |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 频率 | 15.1 | 电容 | 23.8 |
| 额定电压 | 250V | 极数 | 6 |
| 最大额定电流 | 6A | 电阻公差 | Gasoil,MineralOil,AcidBath,BasicBath |
| 保护电压（VP）（2416） | IP 68/69 K | ||
机械参数
| 尺寸 | 10-6 | 颜色 | Black |
| 外形尺寸(长x宽) | 10 | 包装方式 | Bulk |
| 壳体颜色 | 21.5 | 外壳尺寸 | 10 |
| 方向 | N (Normal) | 外壳样式 | Square Flange |
| 端接方式 | Solder Cup | 触点形式 | Female |
| 触头类型 | SolderContactsLoaded | 螺母材料 | Metal |
| 安装类型 | Panel Mount, Flange | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Thermoplastic | 连接器样式 | with flange |
| 插入角度 | 10-6 | 锁定特性 | Bayonet locking |
| 本体材料 | Thermoplastic | 触头材料 | CuNi+Au |
| 壳体材料 | Thermoplastic | 端接排数 | 焊接 |
| 端接样式 | Solder | 第一触头极性 | Female |
| 外径 | 18.3 | 触点数 | 6 |
| 位数 | 6 | 外壳尺寸-插件 | 10-6 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic |
| 接触镀层厚度 | 16µin (0.40µm) | ||
产品信息
| 类型 | UTSConnector | 连接器性别 | Female |
| 系列 | UTS | 产品特性 | Cap (Cover), Dust |
| 产品子类型 | Receptacles | 放大器类型 | 11.7 |
| 输出配置 | Panel Mount, Flange | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 105°C |
