点击放大查看
UTS0128P
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 8P SQ FLANGE PIN RECEPTACLE SIZE 12 CONN HSNG RCPT 8POS PNL MNT MALE 8 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts RECEPTACLE, SIZE12, 8WAY, PIN UTS,SQFLGRCPT Panel Mount Plug UTS Trim Trio UTS Poles=8 Male Housing size12, UTS0128P, Souriau Souriau 8路 面板安装 直向 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 标准包装数量 | 25 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 500 V ac/dc | 最大额定电流 | 13A |
机械参数
| 重量 | 0.013 | 包装方式 | Bulk |
| 出线方向 | Sealed | 外壳尺寸 | 12 |
| 方向 | Keyed | 外壳样式 | Square Flange |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Panel |
| 外壳材料（壳体） | Thermoplastic | 插入角度 | 12-8 |
| 壳体材料 | Thermoplastic | 主要材料 | Sealed |
| 第一触头极性 | Male | 配接方向 | Threaded |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 外壳材料及表面处理 | Thermoplastic |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | PanelSocket |
| 连接器性别 | Female | 系列 | UTS |
| 产品特性 | Cap (Cover), Dust | CAD图纸 | 3D CAD Model |
| 制造商全称 | UTSSeries | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | +105°C |
文档与媒体
相关型号
UTS712CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Green CONN RCPT CODING RING SIZE12 GRN RECEPTACLE COLOR CODING SIZE 12 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,green Coding ring for receptacles size 12, UTS712CCRG, Souriau Souriau 绿色 连接器环,适合外壳尺寸 12
UTS712CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Red Connector Accessories Color Coding Ring For Receptacle Red Shell Size 12 CONN RCPT CODING RING SIZE12 RED RECEPTACLE COLOR CODING SIZE 12 - RED CODING RING, RECEPTACLE, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,red Coding ring for receptacles size 12, UTS712CCRR, Souriau
UTS6JC128S
Souriau
Standard Circular Connector 18P Strt Socket Plug Backshell Size 12 CONN PLUG CABLE 8X1.6 FEMALE 8 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts UTS Series connector,plasticcirc,size12,strplugw/bkshl,for8size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 8P Female 12, UTS6JC128S, Souriau Souriau UTS 系列 8路 电缆安装 直向 连接器 插头 , 母触点
UTS712CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 12, Yellow CONN RCPT CODING RING SIZE12 YEL RECEPTACLE COLOR CODING SIZE 12 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize12,yellow Coding ring for receptacles size 12, UTS712CCRY, Souriau
UTS0128S
Souriau
Standard Circular Connector 8P SQ FLANGE SOCKET RECEPTACLE SIZE 12 CONN HSG RCPT 8POS PNL MNT FEM 8 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts RECEPTACLE, SIZE12, 8WAY, SKT UTS,SQFLGRCPT Panel Mount Socket UTS Trim Trio UTS Poles=8 Female Housing size12, UTS0128S, Souriau Souriau 8路 面板安装 直向 连接器 插座 , 母触点
UTS12DCGE
Souriau
Standard Circular Connector SQ FLANGE SEALING CAP SHELL SIZE 12 CONN RCPT SEALING CAP SIZE 12 SQFLANGESEALINGCAP SQFlangeSealingCap Cap for receptacle with flange size 12, UTS12DCGE, Souriau Souriau UTS 系列 插座 IP68 防尘盖, 尺寸12

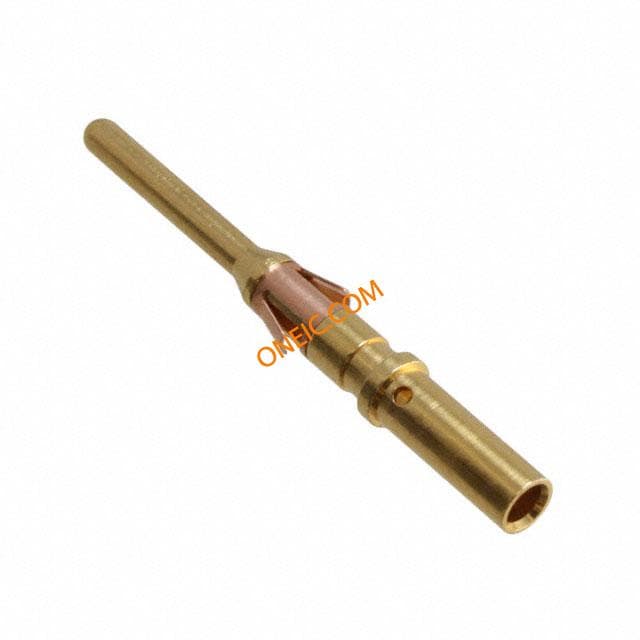

RM16M23K
