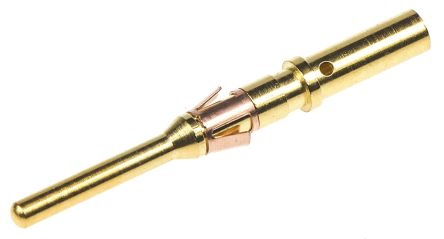

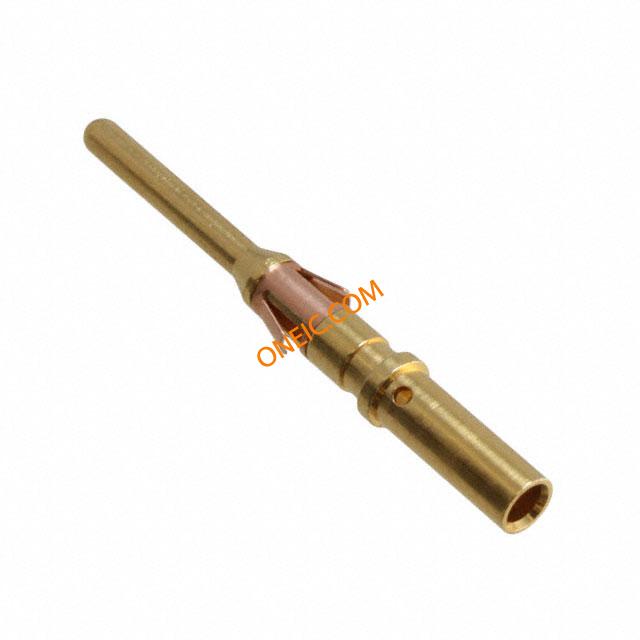

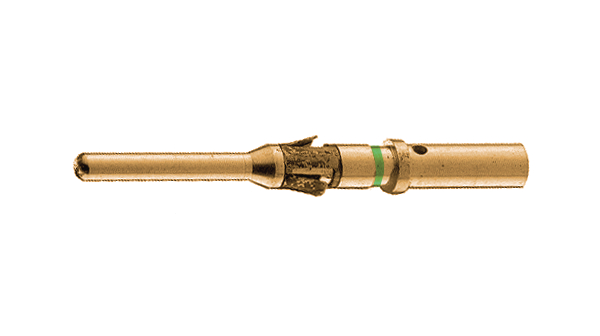

RM16M23K
| 制造商 | SOURIAU SAS |
| 描述 | Contact PIN Crimp ST Cable Mount CONTACT PIN CRIMP 16-20AWG GOLD VGE1 Series Size 16 13A Male Circular Connector Contact, Crimp,Wire size 20 to 16AWG Headers & Wire Housings 16AWG PIN CONTACT CRIMP PIN, 20-16AWG connectoraccessory,trimtriosnapinpincontactfor16awgwire Crimp pin green Male, RM16M23K, Souriau Souriau VGE1 系列 13A 公 压接端接 圆形 连接器 触芯, 20 → 16 AWG 线规格 |
| 分类 |
商业参数
| 其他名称 | SOU1647 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 工作电压 | :750V | 接触电阻 | 3mΩ |
| 最大额定电流 | 13A | ||
机械参数
| 尺寸 | 16 | 长度 | 26.2mm |
| 重量 | 0.066 | 包装方式 | Bulk |
| 导线线规 | 16-20 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | Signal | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Circular |
| 接触镀层 | Gold Over Nickel | 触头材料 | Copper Alloy |
| 总长度 | 26.2 | 包装数量 | :25 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Crimp | 接触镀层厚度 | 16µin (0.40µm) |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | :1.5mm² |
| 外径-未扩张 | :3.2mm | ||
产品信息
| 类型 | Machined | 连接器性别 | PIN |
| 系列 | VGE1 | 产品子类型 | Contacts |
| 适用产品/相关产品 | :TRIM TRIO Connectors | ||
环境参数
| 工作温度 | +100°C | ||
相关型号
S16RCM16
Souriau
Crimpers Crimp Tool Head for UTS 16 AWG Contacts TOOL DIE CRIMP 16AWG 16CONTACT CRIMP HEAD #16 RM RC CONTACT HEAD, CRIMP TOOL, UTS, RM/RC SIZE 16 DieHead;16AWG;16ContactSize;RM/RCContacts;UTSConnectors Crimp insert, S16RCM16, Souriau Souriau UTS Series 系列 压接模具 , 20 → 16 AWG 线规格, 1.6mm 六角尺寸
UT002448PH
Souriau
Standard Circular Connector 48P Pin Receptacle Wall Mount Size 24 CONN RCPT MALE 48POS WALL MNT Conn Metal Circular PIN 48 POS Crimp ST Wall Mount 48 Terminal 1 Port
UT001412PH
Souriau
Standard Circular Connector 12P Pin Receptacle Wall Mount Size 14 CONN RCPT MALE 12POS WALL MNT connector;metal circular;wall recept;for 12 size 16 pin cont;ip68/ip69k sealing UTO01412PH male square flange receptacle, IP67 and 48h salt spray connector,metalcircular,wallrecept,for12size16pincont,ip68/ip69ksealing
UT072028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Jam Nut Size 20 CONN RCPT MALE 28POS JAM NUT
UT061619PH
Souriau
Standard Circular Connector 19P Strt Pin Plug Size 16 Conn Metal Circular PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE 19POS MALE PIN HOUSING, FREE, 19WAY Cable plug UT0 19-pin Trim Trio UT0 19P Male 16, UT061619PH, Souriau

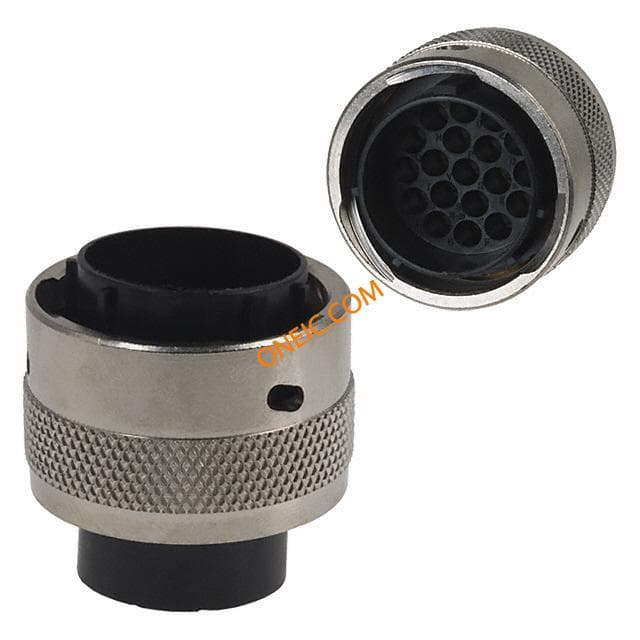

UTG618-23PN
Souriau
Standard Circular Connector 23P Strt Pin Plug Shell Size 18 Conn Metalok Bantam PIN 23 POS Crimp ST Cable Mount 23 Terminal 1 Port CONN PLUG CABLE MALE 23POS Male plug IP67 and 48h salt spray connector,plasticcircular,metalcouplingring,strplug,size18,for23pincont Cable plug, Trim Trio 23-pin Male 18, UTG618-23PN, Souriau

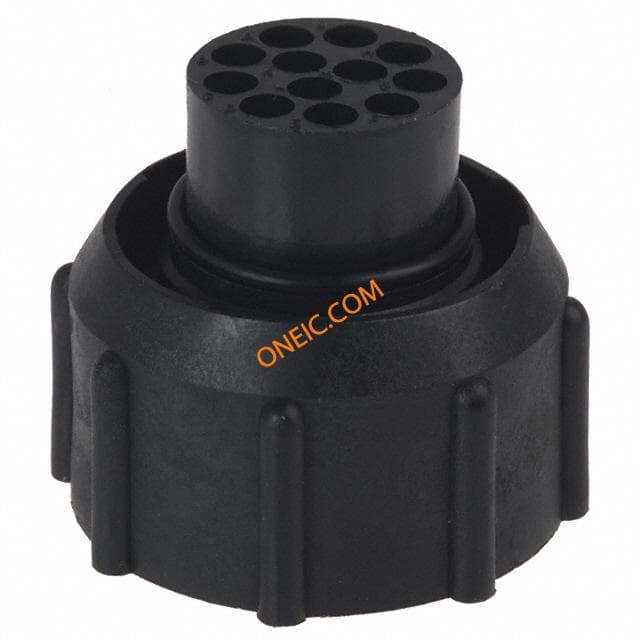

UTP61412P
Souriau
Standard Circular Connector 12P Strt Pin Plug Shell Size 14 CONN PLUG CABLE MALE 12POS 12 Way Male Cable Mount Connector,Male Contacts,Shell Size 14 CIRCULAR CONNECTOR, PLUG, 14-12, CABLE connector,circularplastic,strcableplug,size14,for12size16pincontact Souriau 12路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸14

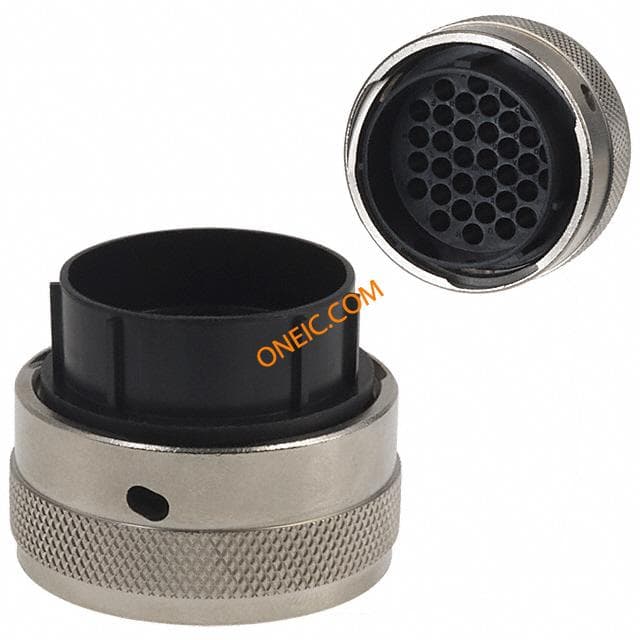

UTG61619PN
Souriau
Standard Circular Connector 19P Strt Pin Plug Shell Size 16 Conn Metalok Bantam PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE MALE 19POS CIRCULAR CONNECTOR, PLUG, 16-19, CABLE Conn.;Circ.;Plug;16ShellSize;MaleInsert;19#16PinContacts;UTG

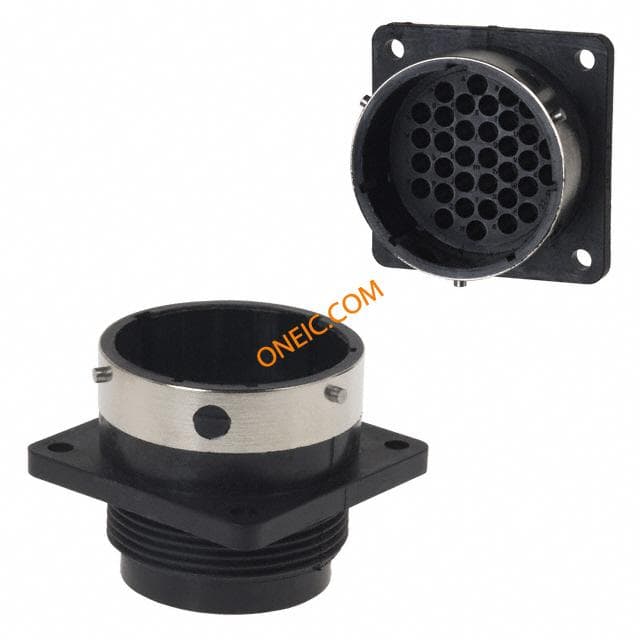

UTG022-35P
Souriau
Standard Circular Connector 35P Pin Receptacle Wall Mount Size 22 CONN RCPT MALE 35POS WALL MT Conn CPC With Metal Coupling PIN 35 POS Crimp ST Wall Mount 35 Terminal 1 Port Bag connector,plasticcircular,metalcouplingring,wallrecept,size22,for35pinco Male receptacle, Trim Trio 35-pin Trim Trio UTG 35P Male 22, UTG022-35P, Souriau

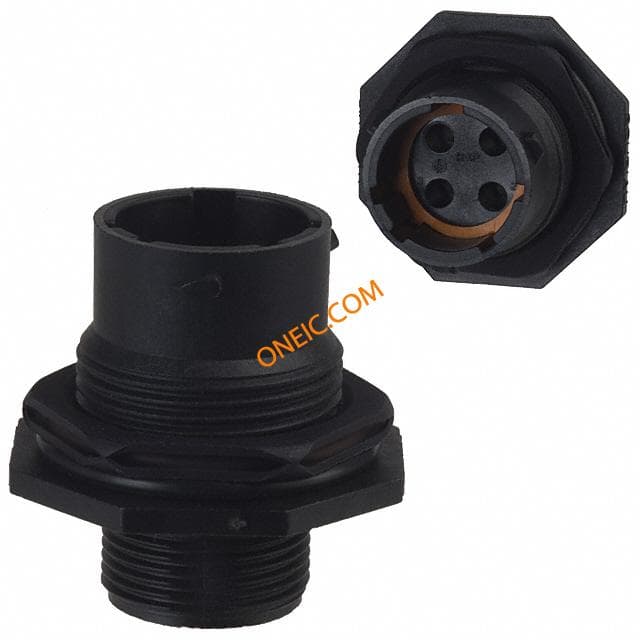

UTS7124P
Souriau
Standard Circular Connector 4P Straight Pin Plug Jam Nut Size 12 CONN RCPT 4X1.6 MALE JAM NUT 4 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts connector,plasticcirc,size12,jamnutrecept,for4size16pincont,sealed Panel Mount Plug UTS Trim Trio UTS 3+PEP Male 12, UTS7124P, Souriau Souriau 4路 面板安装 直向 连接器 插座 , 公触点

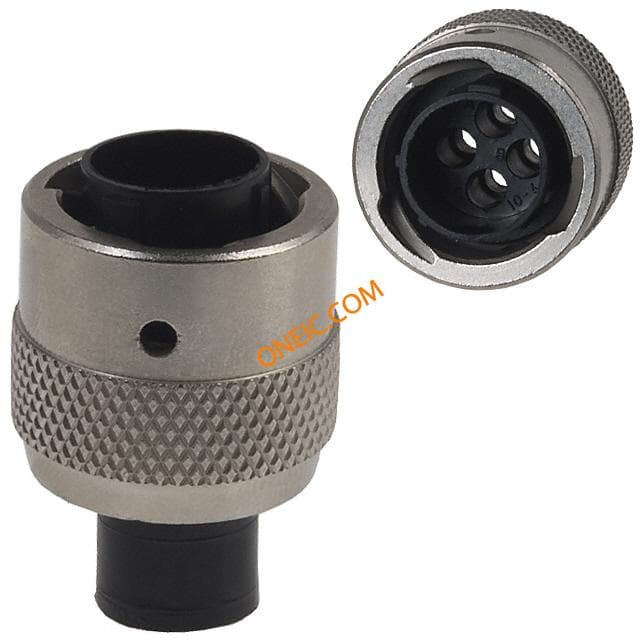

UTG610-4PN
Souriau
Standard Circular Connector 4P Straight Pin Plug Shell Size 10 Conn Metalok Bantam PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CONN PLUG CABLE MALE 4POS connector,plasticcircular,metalcouplingring,strplug,size10,for4pincont Cable plug, Trim Trio 4-pin Male 10, UTG610-4PN, Souriau

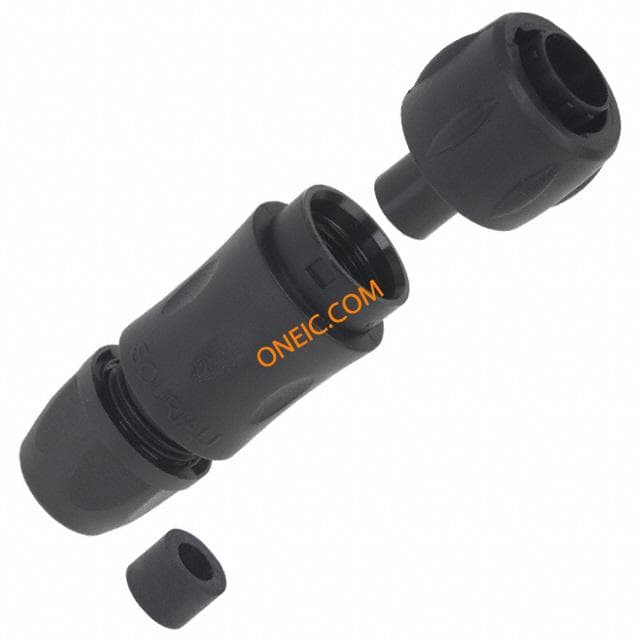

UTS6JC104P
Souriau
Standard Circular Connector 4P Straight Pin Plug Backshell Size 10 CONN PLUG CABLE 4X1.6 MALE 4 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 10 with Male Contacts connector,plasticcirc,size10,strplugw/bkshl,for4size16pincont,sealed Coupling Plug UTS Trim Trio UTS 4P Male 10, UTS6JC104P, Souriau Souriau 4路 电缆安装 直向 连接器 插头 , 公触点

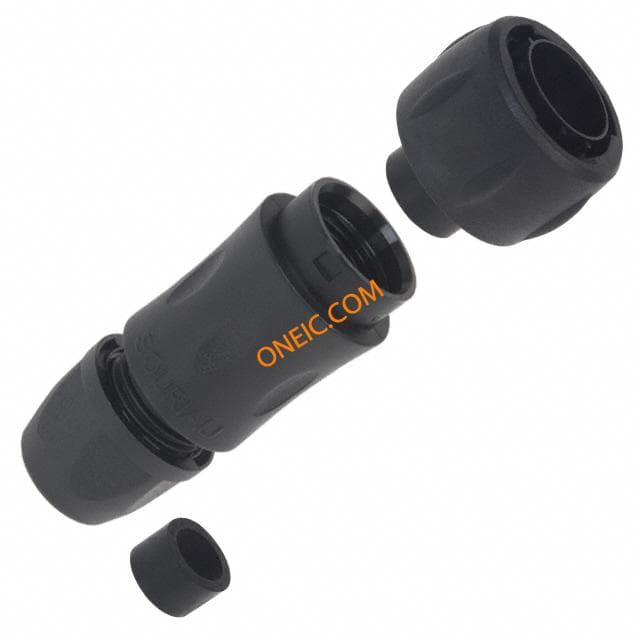

UTS6JC147P
Souriau
Standard Circular Connector 7P Straight Pin Plug Backshell Size 14 CONN PLUG CABLE 7X1.6 MALE 7 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts connector,plasticcirc,size14,strplugw/bkshl,for7size16pincont,sealed Coupling Plug UTS Trim Trio UTS 6+PEP Male 14, UTS6JC147P, Souriau Souriau 7路 电缆安装 直向 连接器 插头 , 公触点

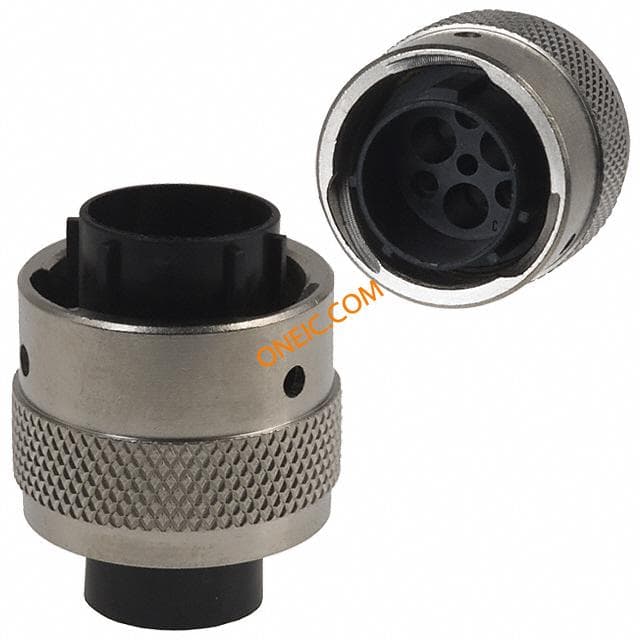

UTG6123PN
Souriau
Standard Circular Connector 3P Straight Pin Plug Shell Size 12 CONN PLUG CABLE MALE 3POS
MBG12P-11
Souriau
Standard Circular Connector 12P Pin Plug CONN PLUG MALE 12POS FREE HANG

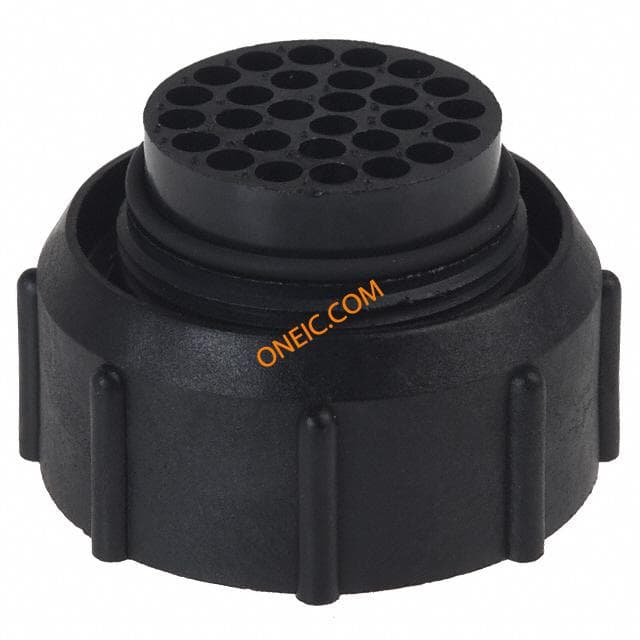

UTP62028P
Souriau
Standard Circular Connector 28P Strt Pin Plug Shell Size 20 CONN PLUG CABLE MALE 28POS 28 Way Male Cable Mount Connector,Male Contacts,Shell Size 20 PLUG, FREE, 28WAY connector,circularplastic,strcableplug,size20,for28size16pincontact Souriau 28路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸20
N16RT-21
Souriau
Punches & Dies DIE SET RC/M16M-23 TOOL DIE SET FOR M8ND 16-20AWG

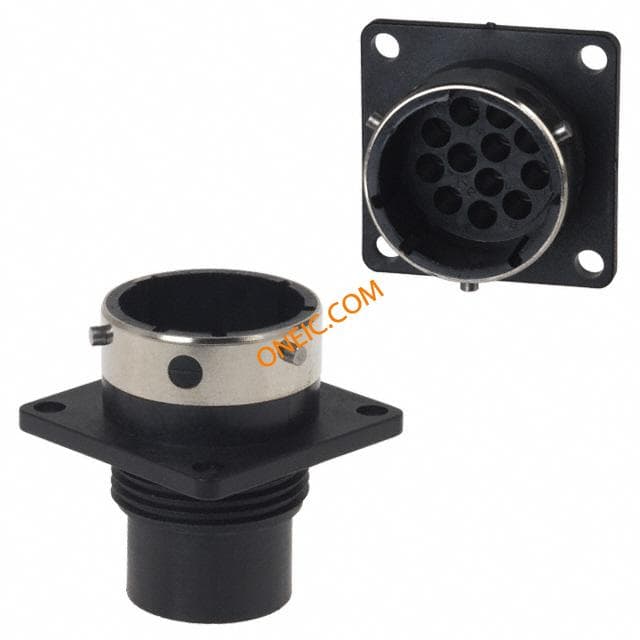

UTG01412P
Souriau Connection Technology
CONN RCPT MALE 12POS WALL MT Conn CPC With Metal Coupling PIN 12 POS Crimp ST Wall Mount 12 Terminal 1 Port Bag CIRCULAR CONN, RECEPTACLE, 12 WAY, PANEL Conn.;Circ.;Socket;14ShellSize;MaleInsert;12#16PinCnts;PnlMnt;UTG
RX2025GE1
Souriau Connection Technology
TOOL EXTRACT FOR SIZE 16 CONT Extraction Tool, 1.6mm EXTRACTION TOOL Extraction tool for size 16, RX2025GE1, Souriau Souriau UTO 系列 压接拔取工具 , 适用于针，插座

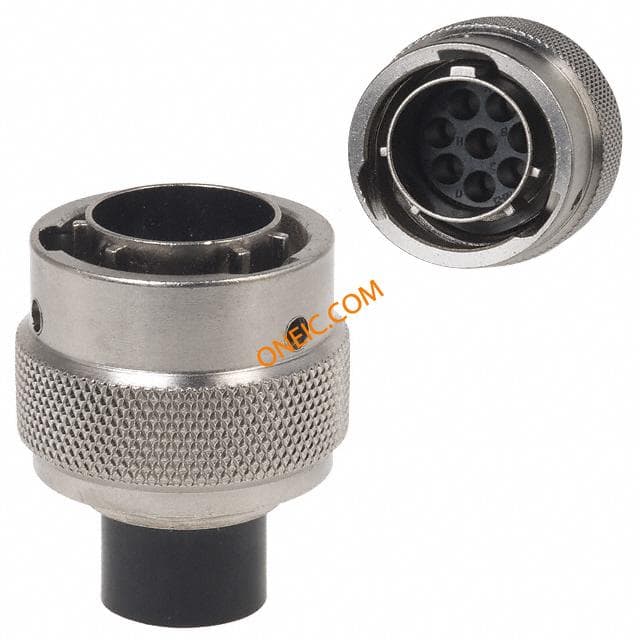

UT06128PH
