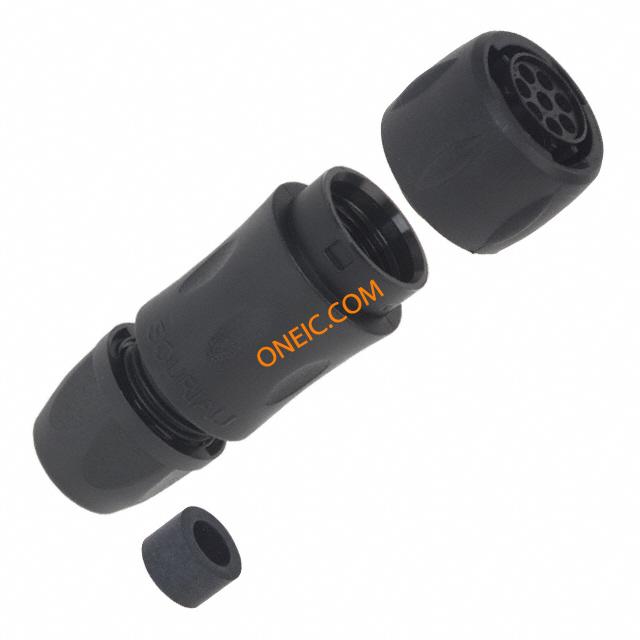

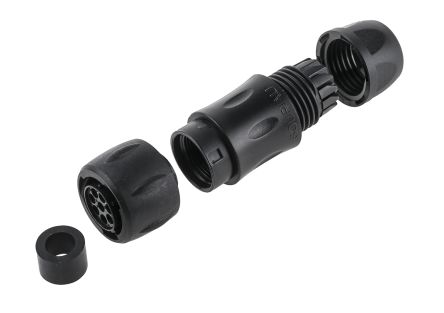

UTS6JC128S
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 18P Strt Socket Plug Backshell Size 12 CONN PLUG CABLE 8X1.6 FEMALE 8 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Female Contacts UTS Series connector,plasticcirc,size12,strplugw/bkshl,for8size16socketcont,sealed Kupplungsstecker UTS Trim Trio UTS 8P Female 12, UTS6JC128S, Souriau Souriau UTS 系列 8路 电缆安装 直向 连接器 插头 , 母触点 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1310 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 125 V ac | 极数 | 8 |
| 最大额定电流 | 13A | 保护电压（VP）（2416） | IP 68/69 K |
机械参数
| 外形尺寸(长x宽) | 12 | 包装方式 | Bulk |
| 壳体颜色 | 66.7 | 外壳尺寸 | 12 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 电缆端类型 | 3...12 mm |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 12-8 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Plastic | 端接排数 | 压接 |
| 端接样式 | Crimp Connection | 第一触头极性 | Female |
| 触点数 | 8 | 位数 | 8 |
| 外壳尺寸-插件 | 12-8 | 第一连接器极性 | Female |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | UTS | 产品子类型 | Plugs |
| 放大器类型 | 29.7 | ||
环境参数
| 密封等级 | IP68, IP69K | 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 工作温度 | +105°C | ||
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UTS1JC128P
Souriau
Standard Circular Connector 8P Pin Recept Sz 12 Cable Mnt Backshell CONN HSNG RCPT 8POS INLINE MALE 8 Pole Female Straight Cable Mount MIL Spec Circular Connector, Shell Size 12 with Male Contacts RECEPTACLE, SIZE12, 8WAY, PIN UTSIN-LINERECEPTACLEWBACKSHELL Cable plug Trim Trio UTS 8P Male 12, UTS1JC128P, Souriau Souriau 8路 电缆安装 直向 连接器 插座 , 公触点
SC24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 24-26AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 26 to 24AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,26-24awgwire Contact;Socket;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
UTS612CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 12, Red CONN PLUG CODING RING SIZE12 RED CABLE PLUG COLOR CODING SIZE 12 - RED CODING RING, PLUG, RED connectoraccessory,uts-series,optionalcolorcodedring,plugsize12,red Coding ring, cable side size 12, UTS612CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 12
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate

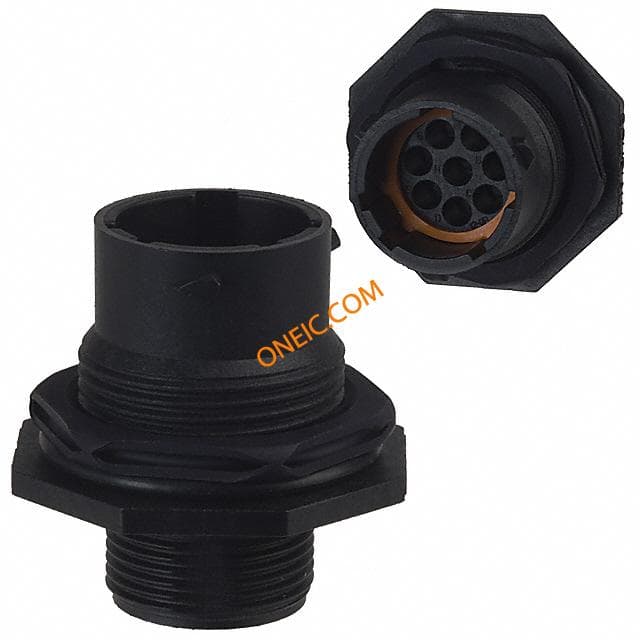

UTS7128P
