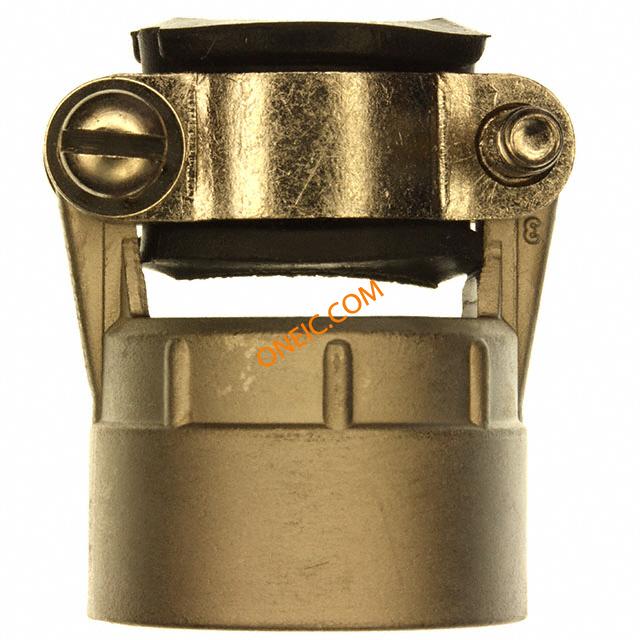

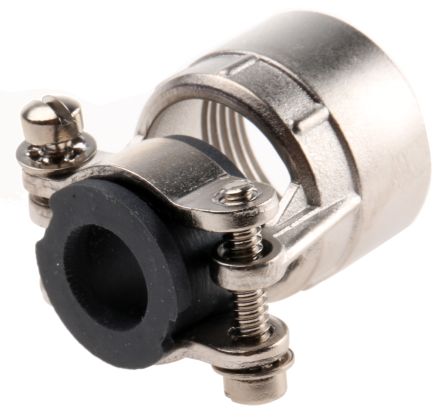

UT014AC
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector Cable Clamp Size 14 With Strain Relief CONN CABLE CLAMP METAL #14 Souriau UTO 系列 IP67/IP68/IP69K 尺寸14 底壳, 带应力消除, 使用于UTO 系列高密度屏蔽式连接器 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1050 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 长度 | 34mm | 外形尺寸(长x宽) | 14 |
| 直径 | 0.88" (22.5mm) | 外壳尺寸 | 14 |
| 方向 | 直 | 螺纹尺寸 | 13/16-20 |
| 电缆开口 | 0.393" (10.00mm) | 外壳镀层 | Nickel |
| 连接器类型 | 母座 | 外壳材料（壳体） | Zinc Alloy |
| 壳体材料 | 金属 | 外壳尺寸-插件 | 14 |
| 静电放电屏蔽 | 是 | ||
产品信息
| 系列 | UT0 | 产品特性 | Strain Relief |
| 产品子类型 | Cable Clamps with Strain Relief | 附件类型 | Cable Clamp |
| 适用产品/相关产品 | UTO 系列高密度屏蔽式连接器 | ||
环境参数
| 防护等级 | IP67, IP68, IP69K | ||
文档与媒体
相关型号
UT001412PH
Souriau
Standard Circular Connector 12P Pin Receptacle Wall Mount Size 14 CONN RCPT MALE 12POS WALL MNT connector;metal circular;wall recept;for 12 size 16 pin cont;ip68/ip69k sealing UTO01412PH male square flange receptacle, IP67 and 48h salt spray connector,metalcircular,wallrecept,for12size16pincont,ip68/ip69ksealing
UT061412SH
Souriau
Standard Circular Connector 12P Strt Socket Plug Size 14 CONN PLUG CABLE 12POS FEMALE Conn Metal Circular SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port SOCKET HOUSING, FREE, 12WAY connector,metalcircular,strplug,for12size16socketcont,ip68/ip69ksealing Cable socket UT0 12-pin Trim Trio UT0 12P Female 14, UT061412SH, Souriau Souriau 12路 电缆安装 连接器 插头 ,母触芯, 外壳尺寸14
UT0W61419PH
Souriau
Standard Circular Connector 19P Strt Pin Plug Shell Size 14 CONN PLUG CABLE HD MALE 19POS PIN HOUSING, FREE, 19WAY connector,metalcircular,strplug,for19size20pincontact,ip68/ip69ksealing CONN HSG PLUG 19POS CABLE PIN Cable plug UT0W 19-pin Trim Trio UT0W 19P Male 14, UT0W61419PH, Souriau
UT0W61419SH
Souriau
Standard Circular Connector 19P Strt Socket Plug Shell Size 14 CONN PLUG CABLE HD FEMALE 19POS SOCKET HOUSING, FREE, 19WAY connector,metalcircular,strplug,for19size20socketcont,ip68/ip69ksealing Cable socket UT0W 19-pin Trim Trio UT0W 19P Female 14, UT0W61419SH, Souriau

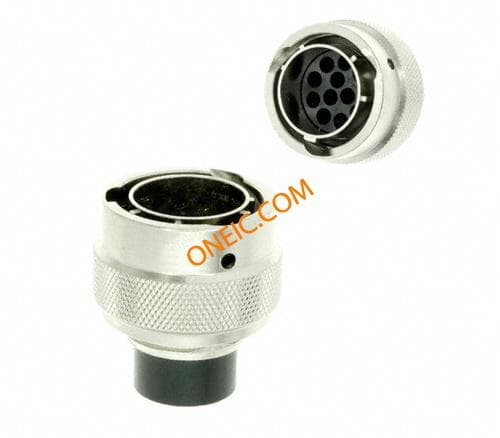

UT061412PH
Souriau Connection Technology
CONN PLUG CABLE 12POS MALE Standard Circular Connector 12P Strt Pin Plug Size 14 CIRCULAR CONNECTOR, PLUG, 14-12, CABLE CONN HSG PLUG 12POS INLINE PIN connector,metalcircular,strplug,for12size16pincontact,ip68/ip69ksealing Cable plug UT0 12-pin Trim Trio UT0 12P Male 14, UT061412PH, Souriau
