点击放大查看

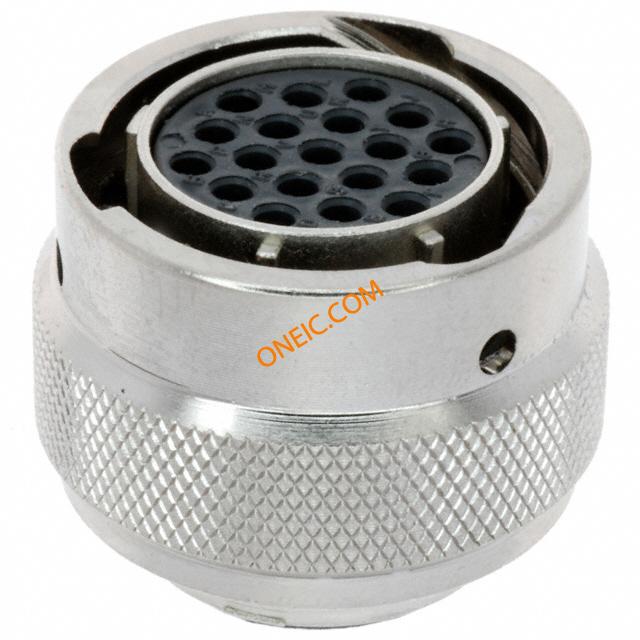

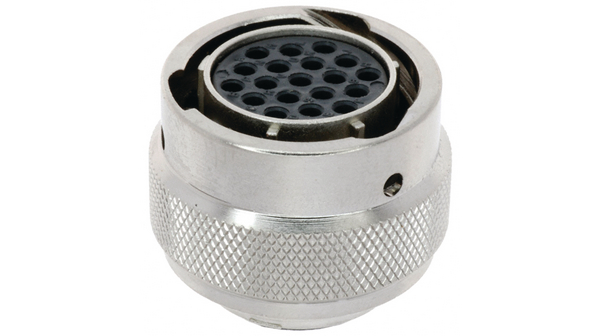

UT0W61419SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 19P Strt Socket Plug Shell Size 14 CONN PLUG CABLE HD FEMALE 19POS SOCKET HOUSING, FREE, 19WAY connector,metalcircular,strplug,for19size20socketcont,ip68/ip69ksealing Cable socket UT0W 19-pin Trim Trio UT0W 19P Female 14, UT0W61419SH, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1080 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | :1500V | 额定电压 | 150 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.02162 | 包装方式 | Bulk |
| 外壳尺寸 | 14 | 方向 | N (Normal) |
| 触点尺寸 | 20 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 14-19 |
| 本体材料 | :Zinc Alloy | 第一触头极性 | Without Socket Contacts |
| 触点数 | 19 | 位数 | 19 |
| 外壳尺寸-插件 | 14-19 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | UT0W | 产品特性 | Shielded |
| 产品子类型 | Cable Plugs | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP 67 | 工作温度 | :+105°C |
