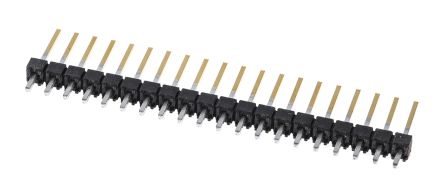

TSW-120-14-L-S

制造商	Samtec, Inc.
描述	Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER 20POS .100" SGL GOLD Samtec TSW Series 2.54mm Pitch 20 Way 1 Row Straight PCB Header, Solder Termination, 7.6A HEADER, 2.54MM, THT VERT, 20WAY Samtec TSW 系列 2.54mm节距 20路 (1排) 直引脚管座, 焊接端接, 7.6A , 通孔
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1055-20

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85366930

电气参数

额定电压	550 V ac	最大额定电流	7.6A
最小输入电压	550VAC

机械参数

颜色	Black	深度	2.54
间距	0.100" (2.54mm)	高度	10.67
重量	0.01	包装方式	Bulk
端接方式	Solder	触头类型	Male Pin
外壳颜色	Black	安装类型	Through Hole
连接器类型	Header, Unshrouded	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	50.8
触点数	20	接触件端接	:Through Hole Vertical
位数	20	接触长度 - 配合	0.320" (8.13mm)
接触镀层厚度	10µin (0.25µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	TSW	加载位置数	All

文档与媒体

PDF 文档

htsw_th.pdf

PDF 文档

TSW_TH.PDF
