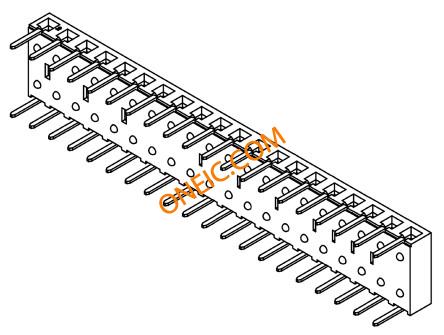

点击放大查看

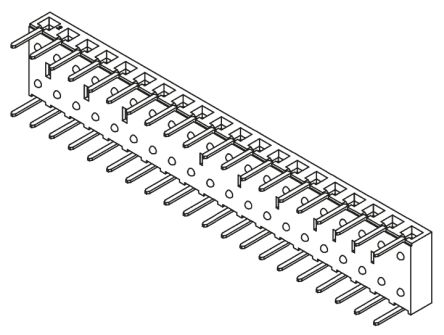

BCS-120-L-S-HE

制造商	Samtec, Inc.
描述	Conn Socket Strip SKT 20 POS 2.54mm Solder RA Thru-Hole Tube CONN RCPT 20POS .100" SNGL HORZ Samtec BCS Series 2.54mm 20 Way 1 Row Right Angle PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, HORZ, 20WAY Samtec BCS 系列 20路直角 2.54mm节距通孔印刷电路板插座, 板对板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1009-20

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

电气参数

额定电压

450 V ac

最大额定电流

5.9A

机械参数

颜色	Black	间距	2.54 mm
宽度	:7.87mm	重量	0.001
包装方式	Tube	端接方式	Solder
引脚间距	:2.54mm	安装类型	Through Hole, Right Angle
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
连接器颜色	:Black	板面高度	0.125" (3.17mm)
触点数	20	接触件端接	:Through Hole Right Angle
位数	20	接触镀层厚度	10µin (0.25µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	BCS	加载位置数	All

环境参数

工作温度

:125°C

文档与媒体

PDF 文档

bcs.pdf

PDF 文档

81213.pdf
