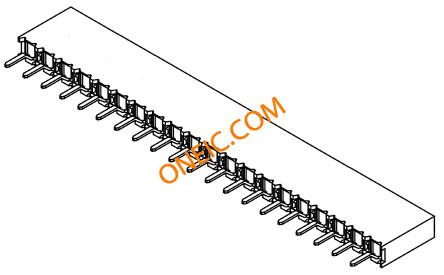

点击放大查看

BCS-120-L-S-TE

制造商	Samtec, Inc.
描述	Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 20POS .100" SNGL VERT Samtec BCS Series 2.54mm 20 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 20WAY Samtec BCS 系列 20路直 2.54mm节距通孔印刷电路板插座, 板对板
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1011-20

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

额定电压	475 V ac	接触电阻	10
最大额定电流	:3A	最小输入电压	475VAC

机械参数

颜色	Black	深度	2.54
间距	0.100" (2.54mm)	宽度	:5.08mm
高度	7.37	重量	0.001
包装方式	Tube	端接方式	Solder
引脚间距	:2.54mm	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	1
触头材料	Phosphor Bronze	壳体材料	Liquid Crystal Polymer
总长度	50.8	连接器颜色	:Black
板面高度	0.290" (7.37mm)	触点数	20
接触件端接	:Through Hole Vertical	位数	20
接触镀层厚度	10µin (0.25µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	BCS	加载位置数	All

环境参数

工作温度

:125°C

文档与媒体

PDF 文档

bcs.pdf

PDF 文档

81213.pdf
