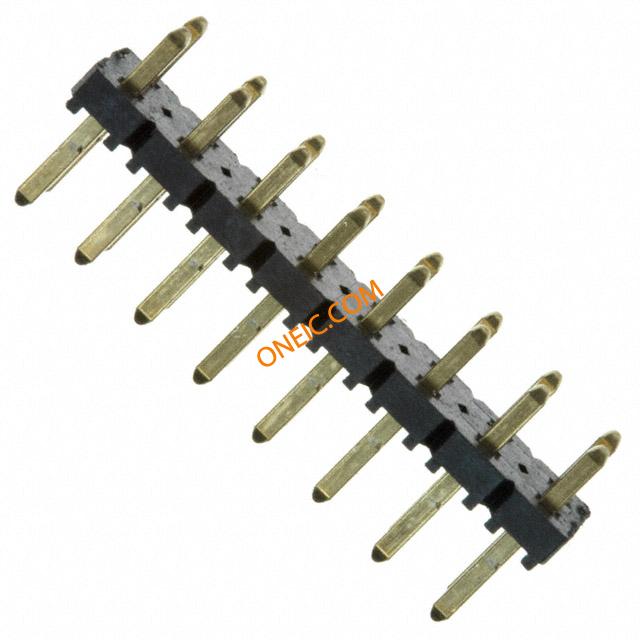

TLW-108-06-G-D
| 制造商 | |
| 描述 | Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole CONN HEADER .100" 16POS DL GOLD |
| 分类 |
商业参数
| 其他名称 | SAM1096-08 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | ||
机械参数
| 颜色 | Black | 深度 | 5.03 |
| 间距 | 0.100" (2.54mm) | 高度 | 4.19 |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 20.32 |
| 触点数 | 16 | 位数 | 16 |
| 接触长度 - 配合 | 0.105" (2.67mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
