点击放大查看

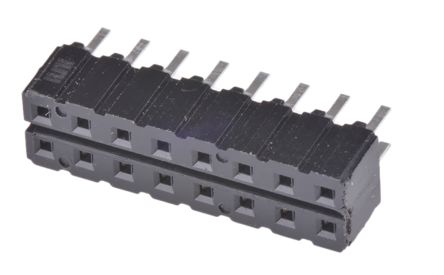

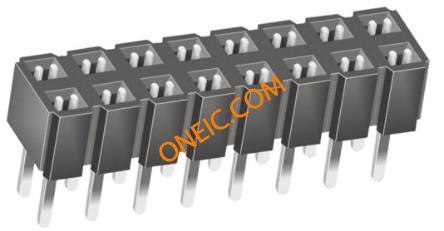

CES-108-01-T-D
| 制造商 | |
| 描述 | Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 16POS .100" DUAL TIN Samtec CES Series 2.54mm 16 Way 2 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, DUAL, 16WAY Samtec CES 系列 2行 16路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| 分类 |
商业参数
| 其他名称 | SAM1086-08 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 333 V ac | 最大额定电流 | 1A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 引脚间距 | :2.54mm | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 板面高度 | 0.200" (5.08mm) | 触点数 | 16 |
| 接触件端接 | :Through Hole Vertical | 位数 | 16 |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | CES | 加载位置数 | All |
环境参数
| 工作温度 | :105°C | ||
