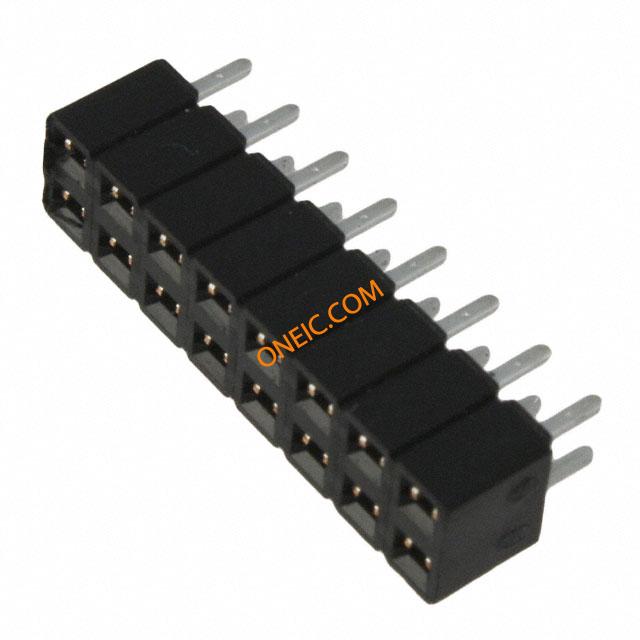

SLW-108-01-T-D
| 制造商 | |
| 描述 | Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 16POS DUAL TIN SOCKET, 2.54MM, 2X8WAY |
| 分类 |
商业参数
| 其他名称 | SAM1092-08 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 3 A |
| 最小输入电压 | 550VAC | 最小供电电压 | 550VAC |
机械参数
| 颜色 | Black | 深度 | 4.95 mm |
| 间距 | 2.54 mm | 高度 | 4.57 mm |
| 重量 | 0.0009 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 20.32 mm | 板面高度 | 0.180" (4.57mm) |
| 触点数 | 16 | 接触件端接 | :Through Hole Vertical |
| 位数 | 16 | 堆叠高度（配合） | 0.240" (6.09mm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | :- | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
