首页产品分类连接器解决方案板对板连接器带罩排针连接器TLW-103-05-G-S

点击放大查看

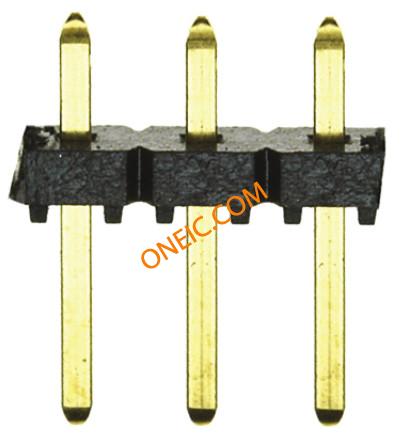

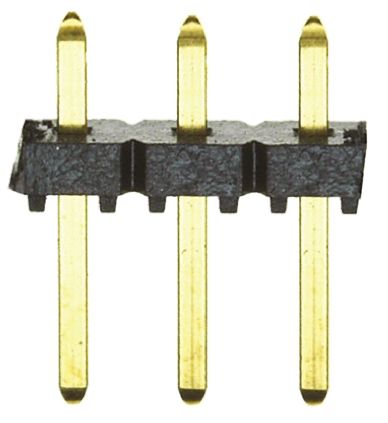

TLW-103-05-G-S

制造商	Samtec, Inc.
描述	Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bulk CONN HEADER .100" 3POS SGL GOLD Samtec TLW Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A HEADER, 2.54MM, SINGLE, 3WAY Samtec TLW Flex Stack 系列 2.54mm节距 3路 (1排) 直引脚管座, 焊接端接, 3A , 通孔
分类	连接器解决方案板对板连接器带罩排针连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1098-03

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

最大额定电流

机械参数

颜色	Black	深度	2.48 mm
间距	2.54 mm	高度	4.19 mm
重量	0.001	包装方式	Bulk
端接方式	Solder	触头类型	Male Pin
引脚间距	:2.54mm	外壳颜色	Black
安装类型	Through Hole	连接器类型	Header, Unshrouded
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	1	触头材料	Phosphor Bronze
壳体材料	Liquid Crystal Polymer	总长度	7.62 mm
连接器颜色	:Black	触点数	3
接触件端接	:Through Hole Vertical	位数	3
接触长度 - 配合	0.105" (2.67mm)	接触镀层厚度	10µin (0.25µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	TLW	加载位置数	All

环境参数

工作温度

-55C to 125C

文档与媒体

PDF 文档

TLW_TH.PDF

PDF 文档

82119.pdf
