点击放大查看

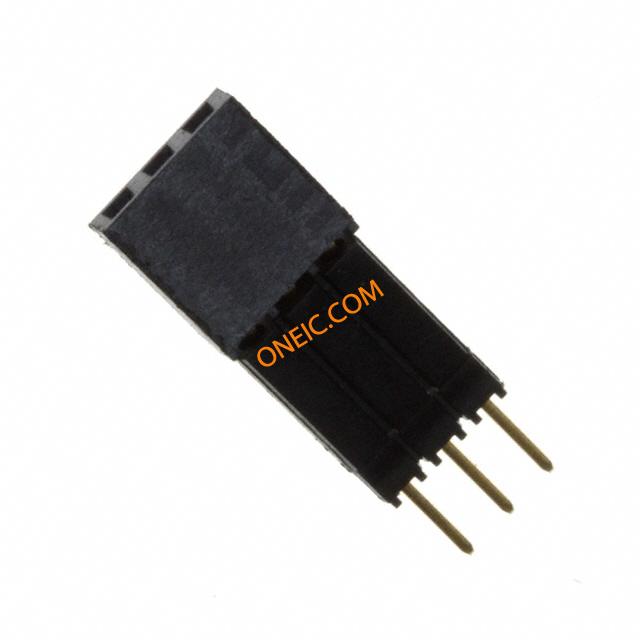

ESQ-103-44-G-S

制造商	Samtec, Inc.
描述	Conn Elevated Socket SKT 3 POS 2.54mm Solder ST Thru-Hole CONN RCPT 3POS .1" GOLD SOCKET, 2.54MM, VERTICAL THT, 3WAY
分类	连接器解决方案板对板连接器板对板连接器附件

对参数有疑问？问 AI 助手

商业参数

其他名称

Q2891343A

标准包装数量

Bulk

合规参数

SVHC	:No SVHC (20-Jun-2013)	欧盟RoHS	Compliant
海关税号	85366930

电气参数

接触电阻	10	最大额定电流	6.9/Contact
最小输入电压	550VAC

机械参数

颜色	Black	深度	2.41
间距	2.54 mm	高度	18.67
重量	0.017	包装方式	Tube
端接方式	Solder	触头类型	Female Socket
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	8.13
触点数	3	接触件端接	:Through Hole Vertical
位数	3	接触镀层厚度	20µin (0.51µm)

产品信息

类型	Elevated Socket	连接器性别	SKT
系列	:ESQ	加载位置数	All

文档与媒体

PDF 文档

ESW_TH.PDF

PDF 文档

ESQ, ESW Series

PDF 文档

1304221.pdf
